Home › Lexus › 2006 › IS 350 › Repair and Diagnosis › Engine Performance › Engine Control System (2GR-FSE) › Accelerator Pedal › Components

Accelerator Pedal: Components

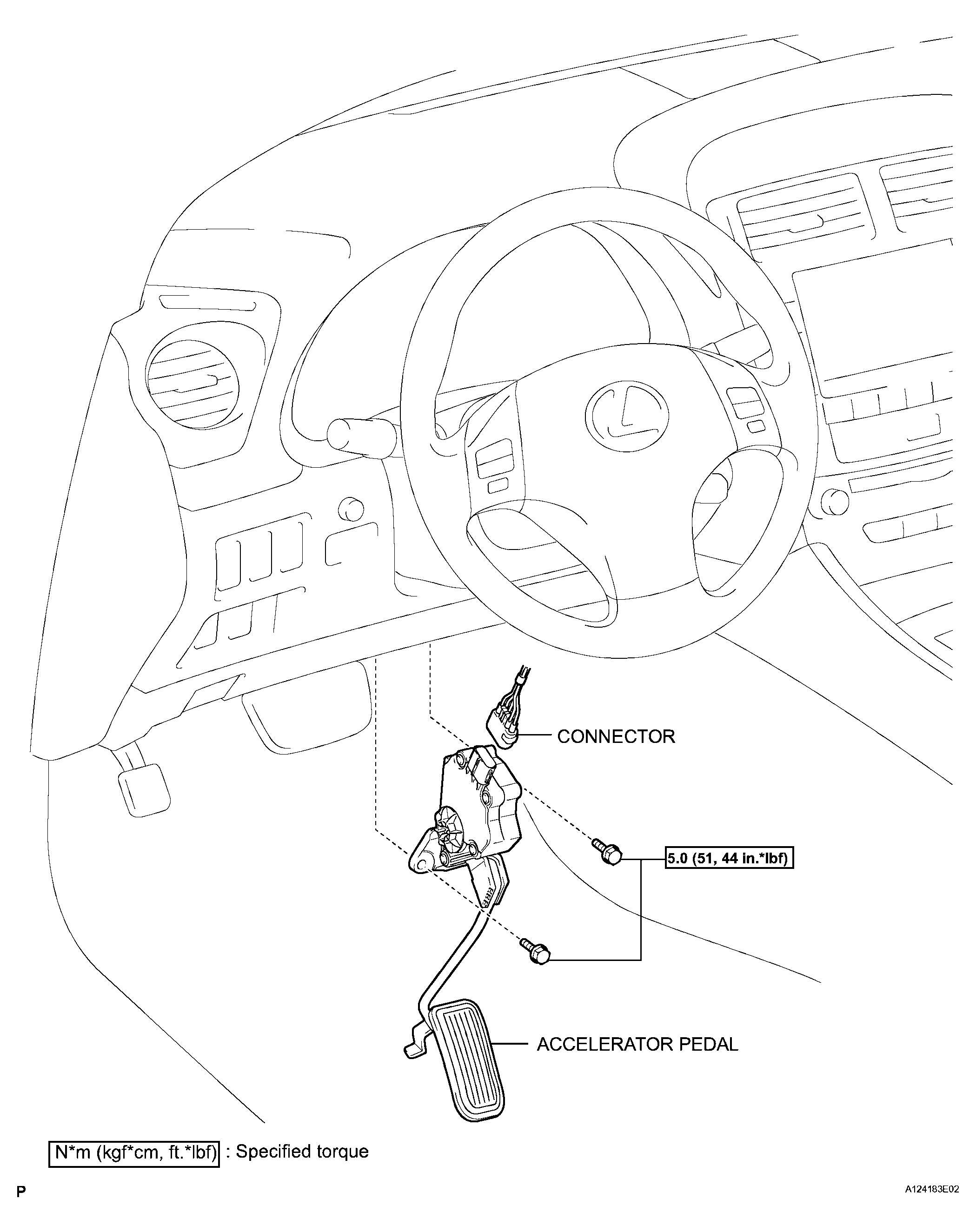

Fig 1: Accelerator Pedal Replacement Components With Torque Specifications
G04054994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
