Section 14 (Starting (4GR-FSE)): Starter: Components

WARNING: This page is about a different car, the 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

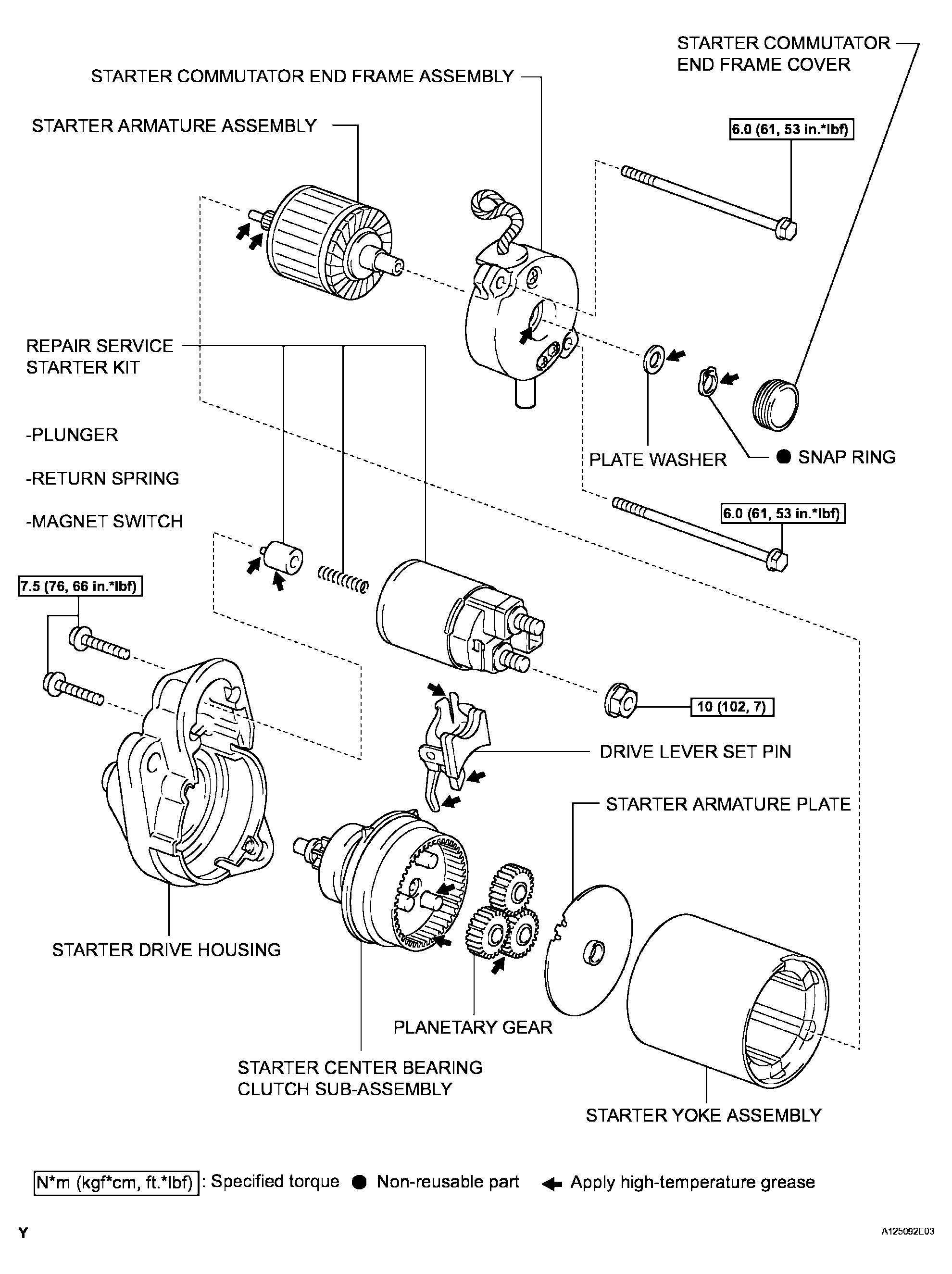

Fig 1: Starter Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Starter Replacement Components With Torque Specifications (2 Of 3)

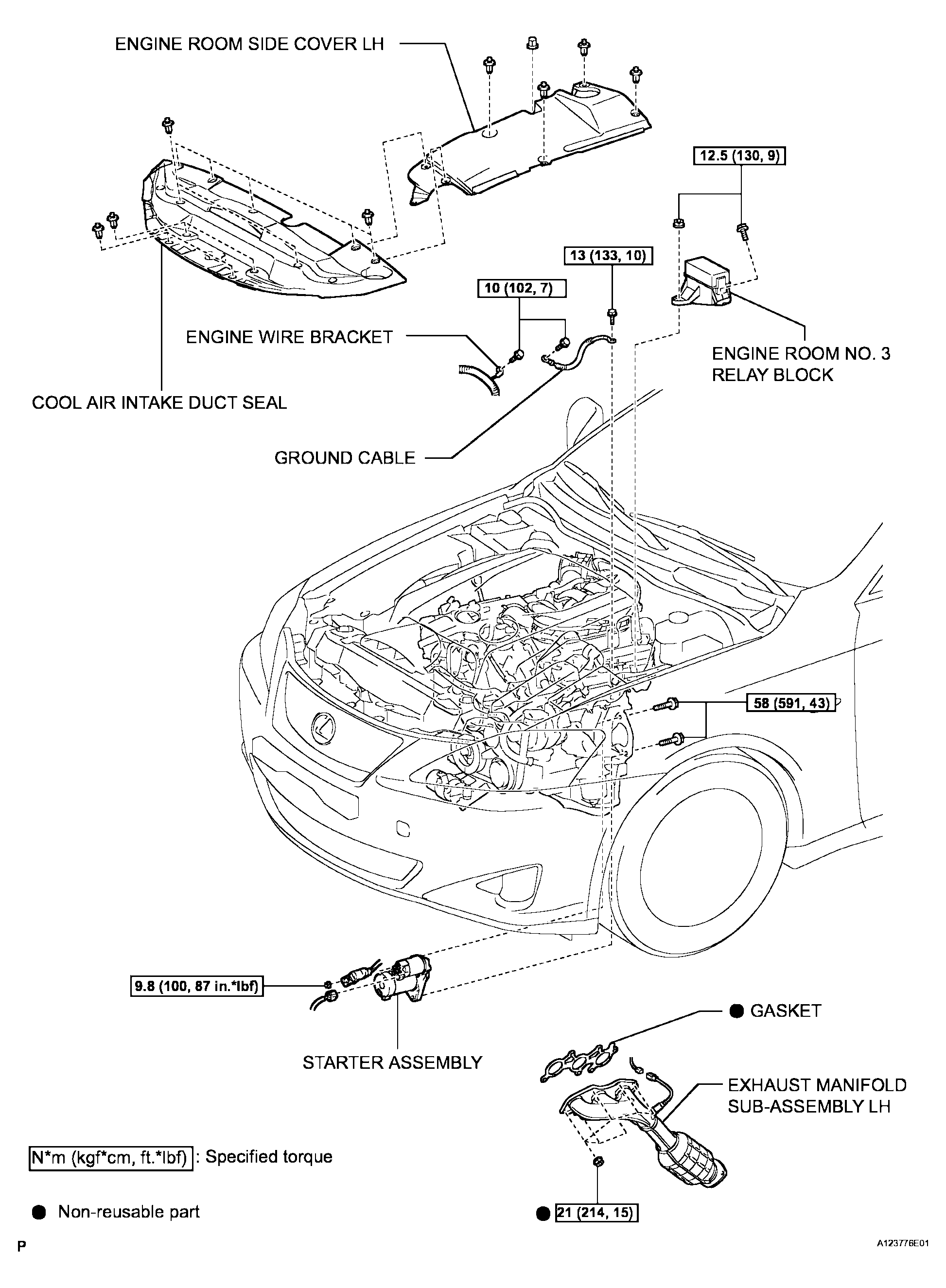

Fig 3: Starter Replacement Components With Torque Specifications (3 Of 3)
