Rear Axle Hub: Removal

WARNING: This page is about a different car, the 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE REAR WHEEL
  2. SEPARATE REAR STABILIZER LINK ASSEMBLY
    1. Remove the bolt and nut, and separate the load sensing valve sensor bracket and stabilizer link assembly.
    Fig 1: View Of Rear Stabilizer Link Assembly Mounting Bolt
    G04053761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR AXLE SHAFT NUT
    1. Using SST and a hammer, release the staked part of the axle shaft nut.

      SST 09930-00010

      NOTE: Release the staked part of the nut completely, otherwise the screw of the drive shaft may be damaged.
    2. Remove the rear axle shaft nut.

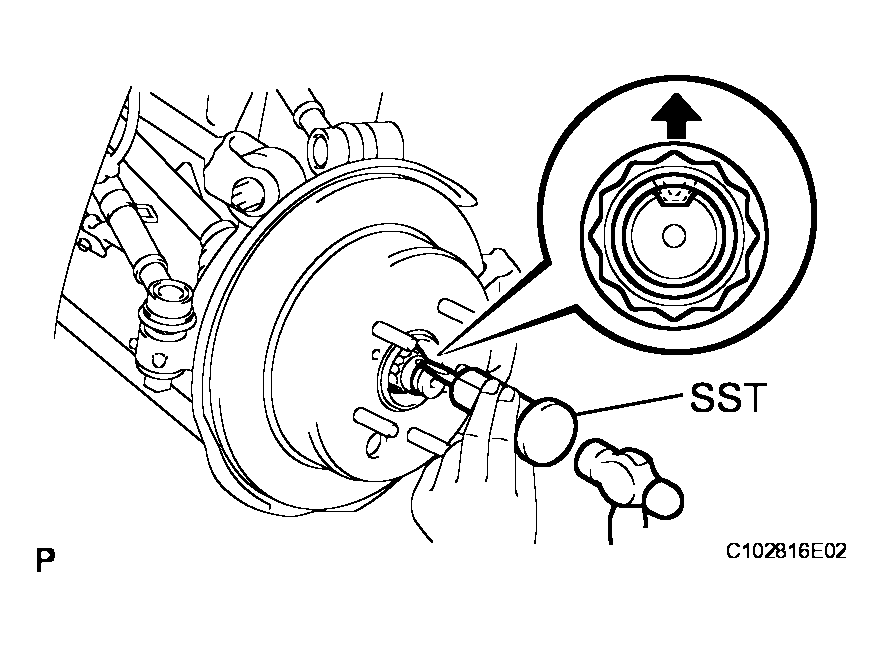

    Fig 2: Releasing Staked Part Of Axle Shaft Nut
    G04047247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY (See Step 7 in  REMOVAL  )
  5. REMOVE REAR DISC (See Step 9 in  DISASSEMBLY  )
  6. SEPARATE REAR SPEED SENSOR (See Step 6 in  REMOVAL  )
  7. REMOVE NO. 2 PARKING BRAKE SHOE RETURN SPRING (See Step 4 in  DISASSEMBLY  )
  8. REMOVE NO. 1 PARKING BRAKE SHOE RETURN SPRING (See Step 5 in  DISASSEMBLY  )
  9. REMOVE PARKING BRAKE SHOE ADJUSTING SCREW SET (See Step 6 in  DISASSEMBLY  )
  10. REMOVE NO. 2 PARKING BRAKE SHOE ASSEMBLY (See Step 7 in  DISASSEMBLY  )
  11. REMOVE NO. 1 PARKING BRAKE SHOE ASSEMBLY (See Step 8 in  DISASSEMBLY  )
  12. REMOVE PARKING BRAKE SHOE LEVER (See Step 9 in  DISASSEMBLY  )
  13. SEPARATE PARKING BRAKE CABLE ASSEMBLY
    1. Remove the 2 nuts, and separate the parking brake cable assembly from the rear axle carrier subassembly.
  14. SEPARATE NO. 2 REAR UPPER CONTROL ARM ASSEMBLY
    1. Remove the nut from the No. 2 upper control arm assembly rear.
      Fig 3: Identifying Parking Brake Cable Assembly Mounting Plate With Nuts
      G04047933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, separate the No. 2 upper control arm assembly rear from the rear axle carrier subassembly.

    SST 09628-00011

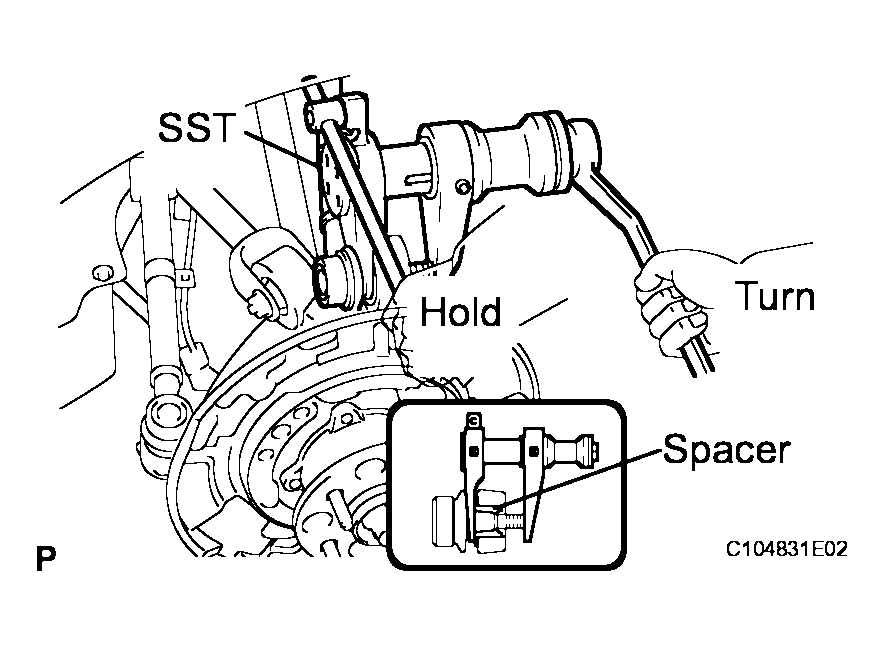

    Fig 4: Separating Upper Control Arm Assembly Rear Using SST
    G04047249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
    • Use caution not to damage the rear axle carrier because it is made of aluminum and may be damaged easily.
    • Do not damage the ball joint dust cover.
    • Make sure that the SST is securely positioned on the rear axle carrier spacer.
    • If the rear axle carrier spacer has come off, replace the rear axle carrier with a new one.
    • Make sure that the string of the SST is securely tied to the vehicle.
  15. SEPARATE NO. 1 REAR UPPER CONTROL ARM ASSEMBLY
    1. Jack up the rear axle assembly so that the bolt on the No. 1 rear upper control arm assembly can be removed.

      HINT:

      Place a wooden block between the jack and rear axle carrier to prevent damage to the rear axle carrier.

    2. Remove the bolt, washer and nut, and separate the No. 1 rear upper control arm assembly from the rear axle carrier sub-assembly.

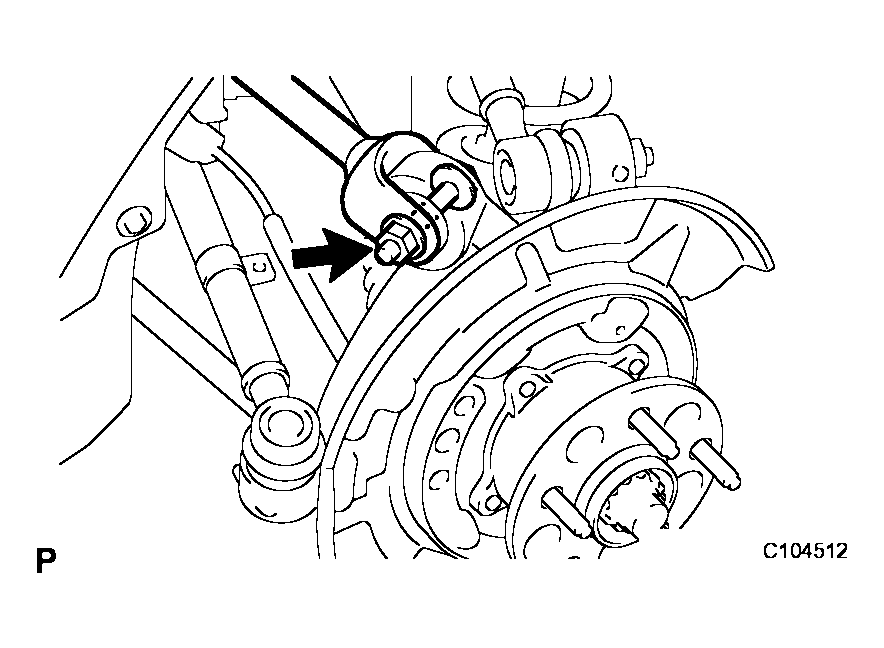

    Fig 5: Removing Bolt From Rear Upper Control Arm Assembly
    G04047250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. SEPARATE NO. 1 REAR SUSPENSION ARM ASSEMBLY
    1. Remove the bolt and nut, and separate the No. 1 rear suspension arm assembly from the rear axle carrier sub-assembly.
    NOTE: Turn the bolt while holding the nut.

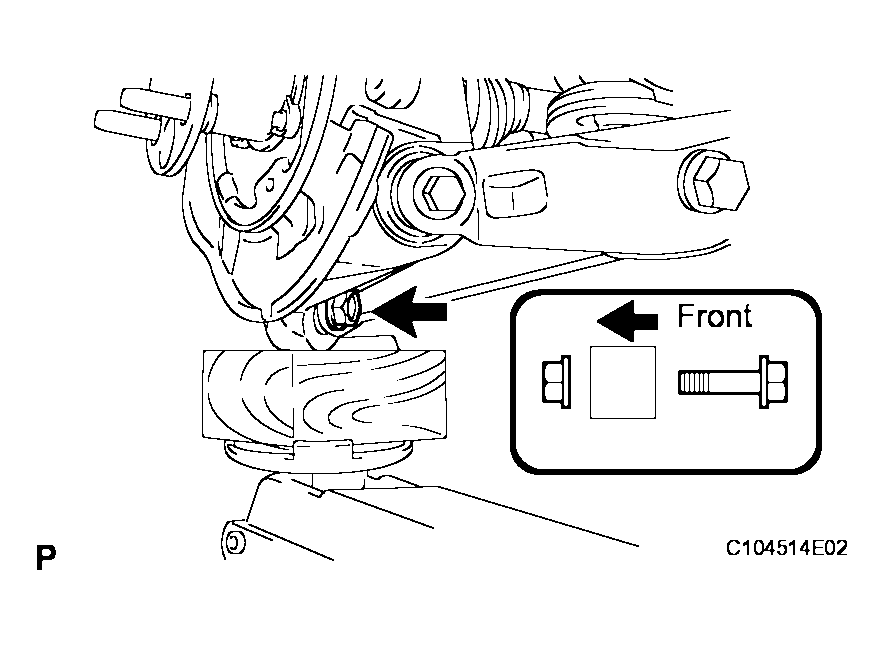

    Fig 6: Removing Bolt And Nut
    G04047251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. SEPARATE NO. 2 REAR SUSPENSION ARM ASSEMBLY
    1. Remove the bolt and nut, and separate the No. 2 rear suspension arm assembly from the rear axle carrier sub-assembly.
    NOTE: Turn the bolt while holding the nut.

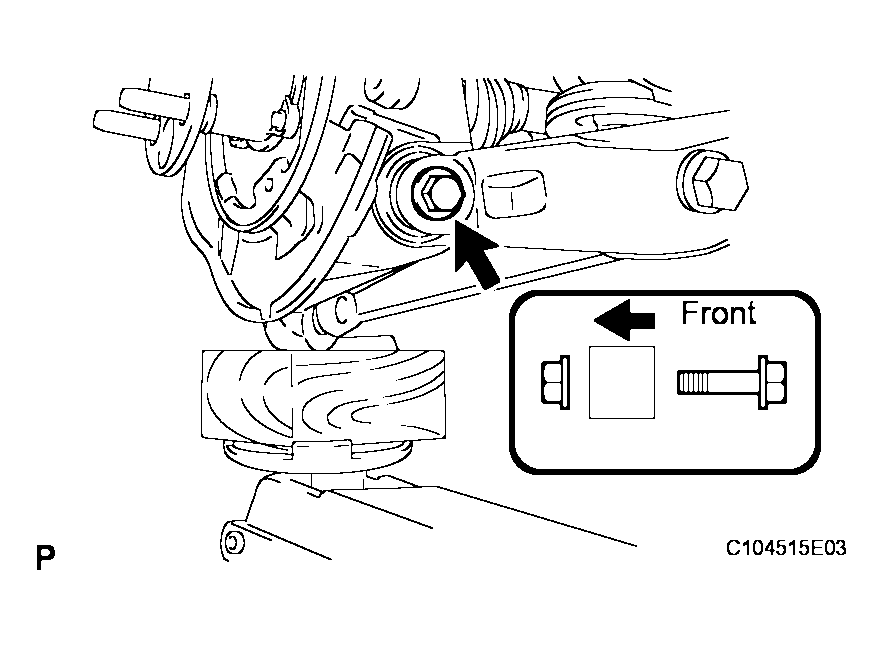

    Fig 7: Removing Rear Suspension Arm Assembly Bolt
    G04047252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. SEPARATE TOE CONTROL LINK SUB-ASSEMBLY
    1. Remove the nut from the toe control link subassembly.
    2. Using SST, separate the toe control link subassembly from the rear axle carrier sub-assembly.

    SST 09628-00011

    NOTE:
    • Use caution not to damage the rear axle carrier because it is made of aluminum and may be damaged easily.
    • Do not damage the ball joint dust cover.
    • Make sure that the SST is securely positioned on the rear axle carrier spacer.
    • If the rear axle carrier spacer has come off, replace the rear axle carrier with a new one.
    • Make sure that the string of the SST is securely tied to the vehicle.

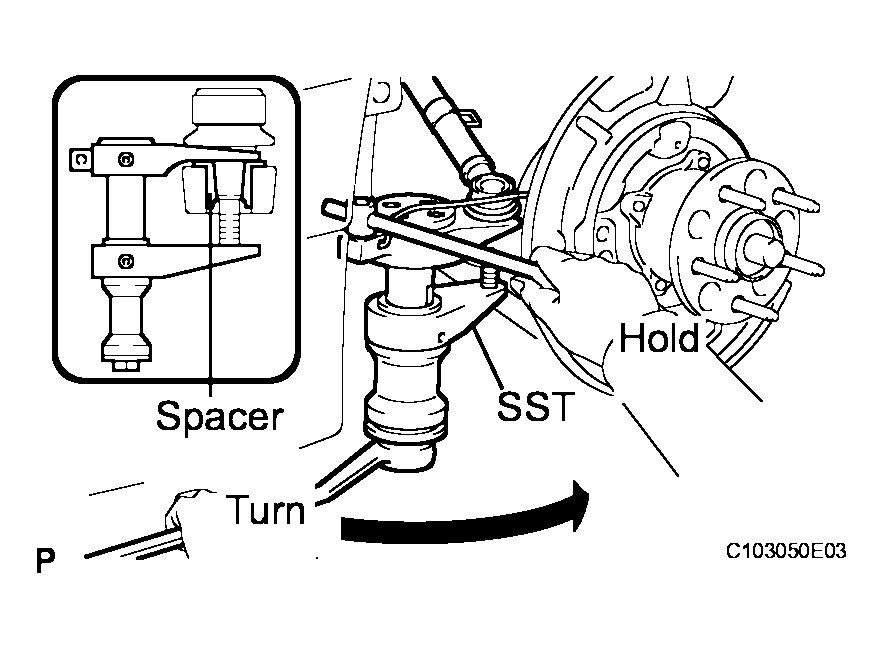

    Fig 8: Separating Toe Control Link Subassembly Using SST
    G04047253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE REAR AXLE ASSEMBLY
    1. Using a plastic hammer, separate the drive shaft from the rear axle assembly.
    NOTE:
    • Be careful not to damage the boot.
    • Use wire or equivalent to prevent the rear drive shaft assembly from hanging down.
  20. REMOVE NO. 2 REAR WHEEL BEARING DUST DEFLECTOR
    1. Using a screwdriver, remove the No. 2 rear wheel bearing dust deflector from the rear axle carrier subassembly.
  21. REMOVE REAR AXLE HUB AND BEARING ASSEMBLY
    1. Hold the axle hub and bearing assembly in a vise between aluminum plates.
    NOTE: Do not overtighten the vise.

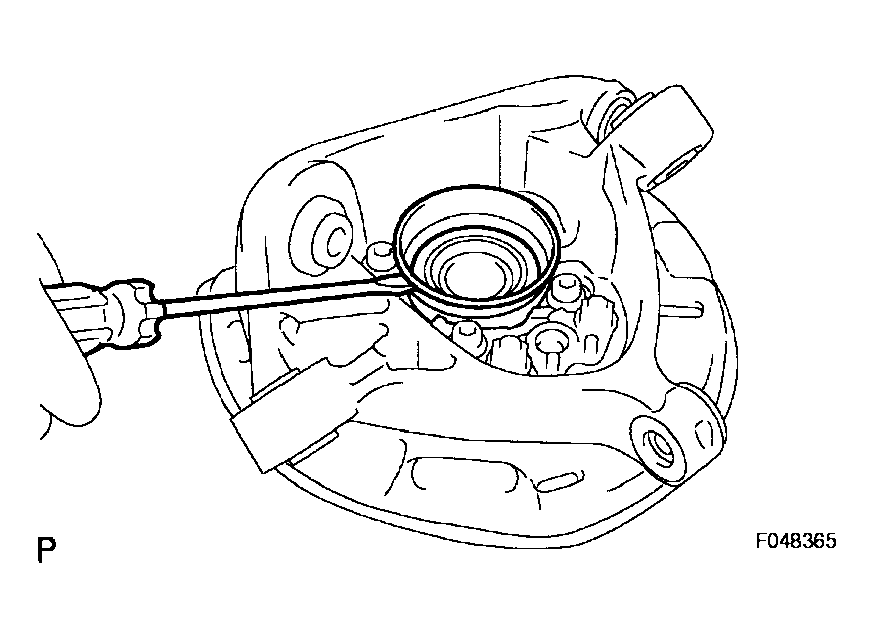

    Fig 9: Removing Rear Wheel Bearing Dust Deflector
    G04047254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. Remove the 4 bolts, axle hub and bearing assembly from the rear axle carrier sub-assembly.

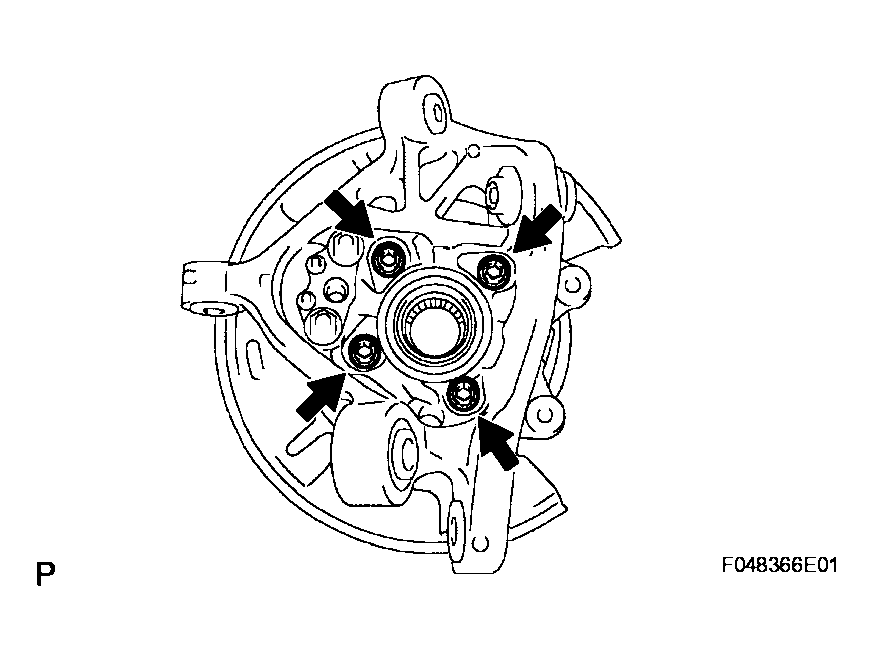

    Fig 10: Removing Axle Hub Bearing Assembly Bolts
    G04047255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. Remove the 2 nuts, parking brake anchor block, cable support bracket and parking brake plate.
Fig 11: Removing Parking Brake Anchor Block Nuts
G04047256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
