Seat Belt Control Ecu: Removal
- REMOVE NO. 2 LUGGAGE COMPARTMENT TRIM COVER
- REMOVE SPARE WHEEL COVER
- REMOVE DECK SIDE TRIM BOX LH
- REMOVE DECK SIDE TRIM BOX RH
- REMOVE ROPE HOOK ASSEMBLY (See Step 5 in REMOVAL
)
- REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER (See Step 6 in REMOVAL
)
- REMOVE NO. 2 ROOM LIGHT ASSEMBLY (See Step 7 in REMOVAL
)
- REMOVE ROPE HOOK (See Step 8 in REMOVAL
)
- REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER (See Step 9 in REMOVAL
)
- REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (See Step 10 in REMOVAL
)
- REMOVE SIDE LUGGAGE COMPARTMENT TRIM COVER LH (See Step 11 in REMOVAL
)
- REMOVE SEAT BELT CONTROL ECU

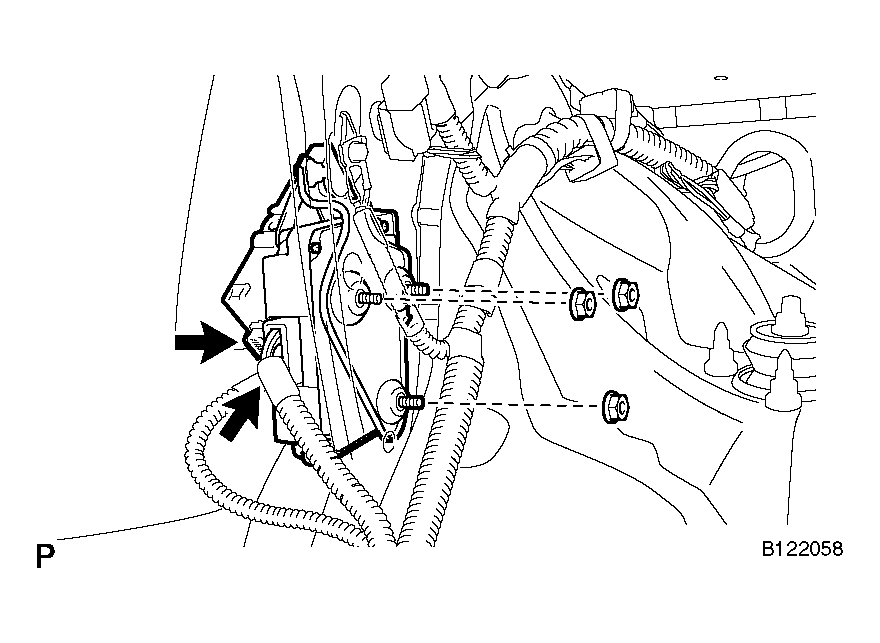

- Disconnect the connectors.
- Remove the 3 nuts and remove the seat belt control ECU and the clearance warning ECU as a unit.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Remove the 2 nuts and seat belt control ECU.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
