Oil Pump: Components

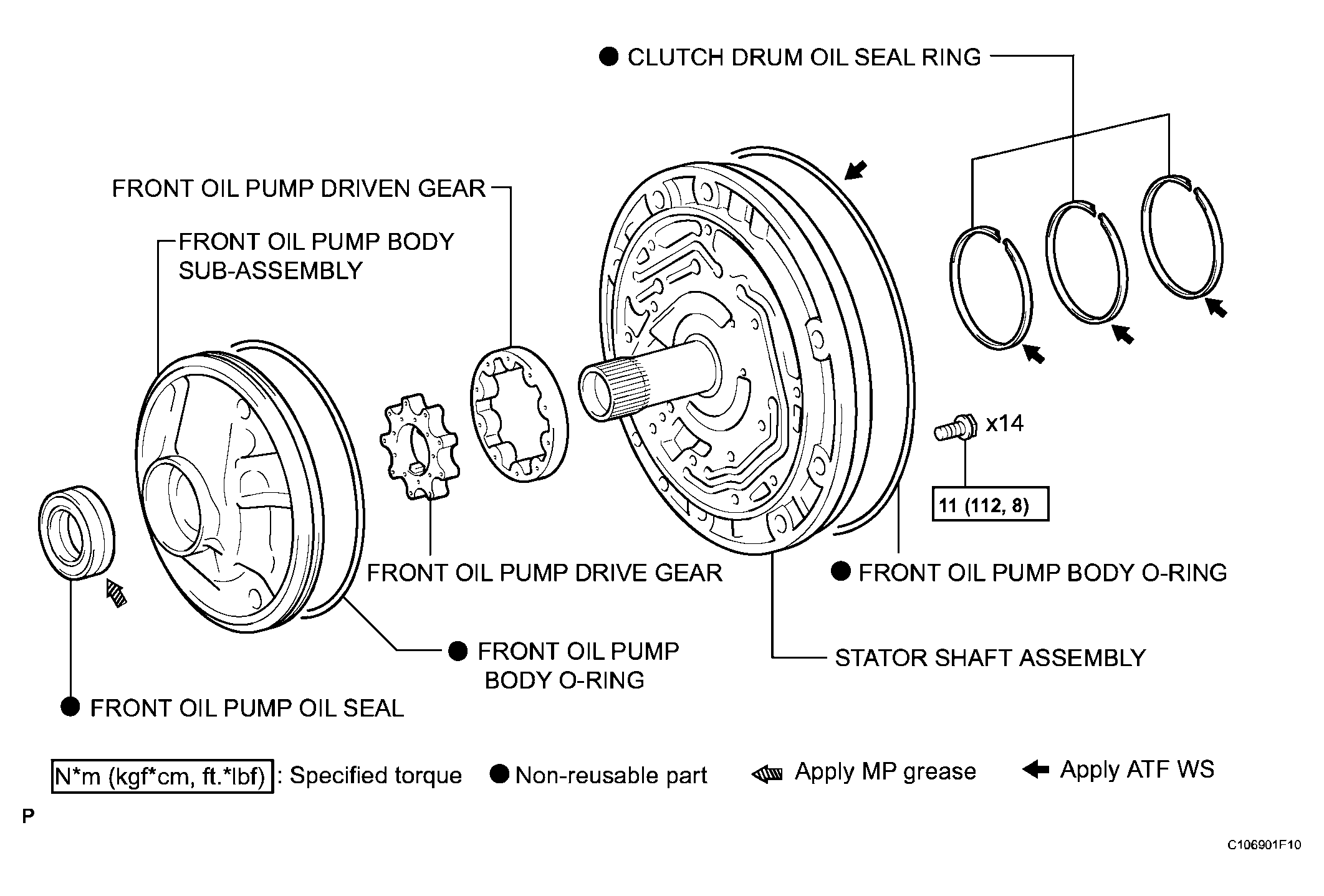

Fig 1: Exploded View Of Oil Pump Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
