Home › Lexus › 2006 › IS 350 › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transmission › Shift Paddle Switch › Components

Shift Paddle Switch: Components

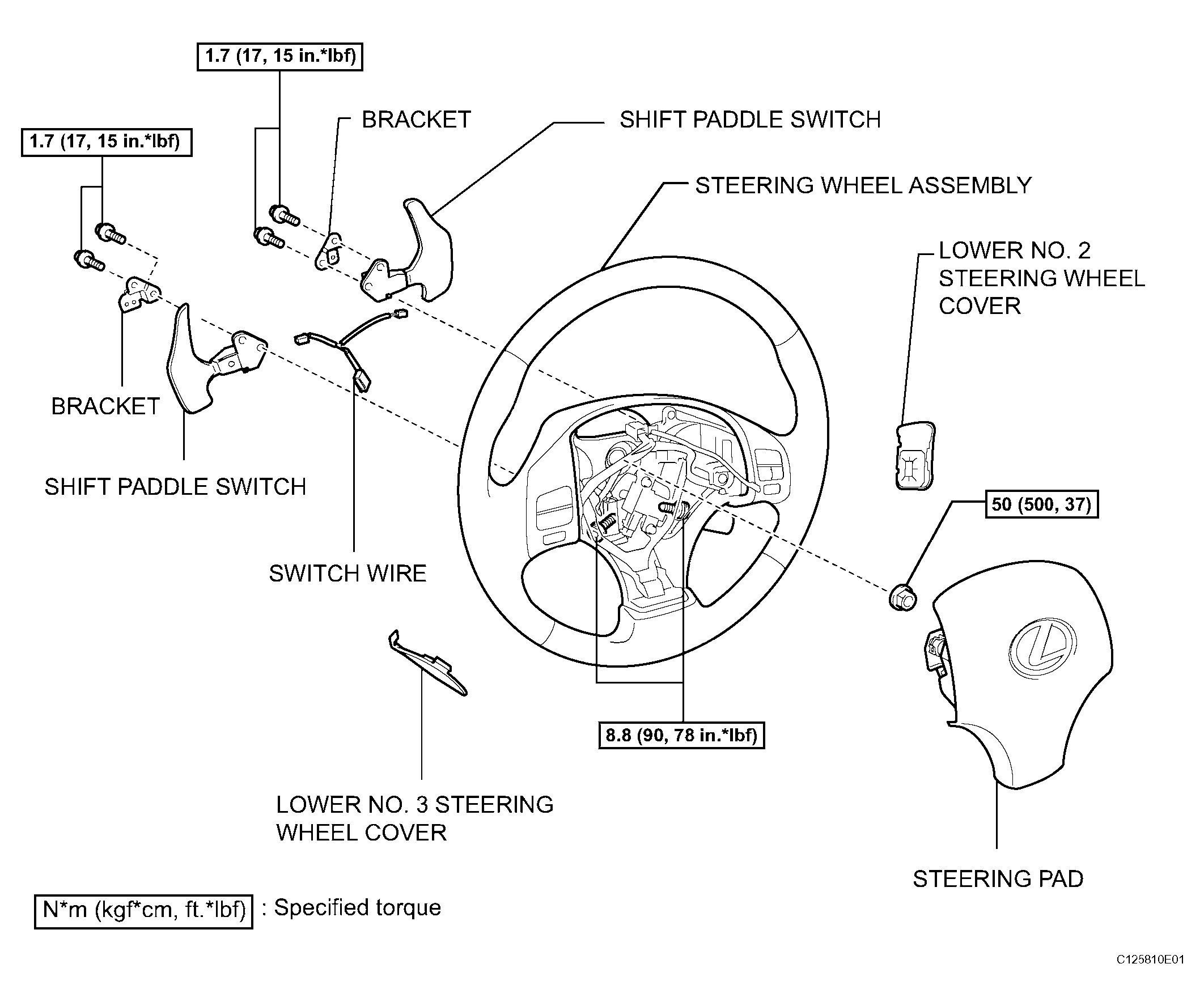

Fig 1: Shift Paddle Switch Replacement Components With Torque Specifications
G04053055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
