Speed Sensor: Removal

  1. REMOVE TRANSMISSION REVOLUTION SENSOR (NT)
    1. Disconnect the transmission revolution sensor connector.
    2. Remove the bolt and transmission revolution sensor.

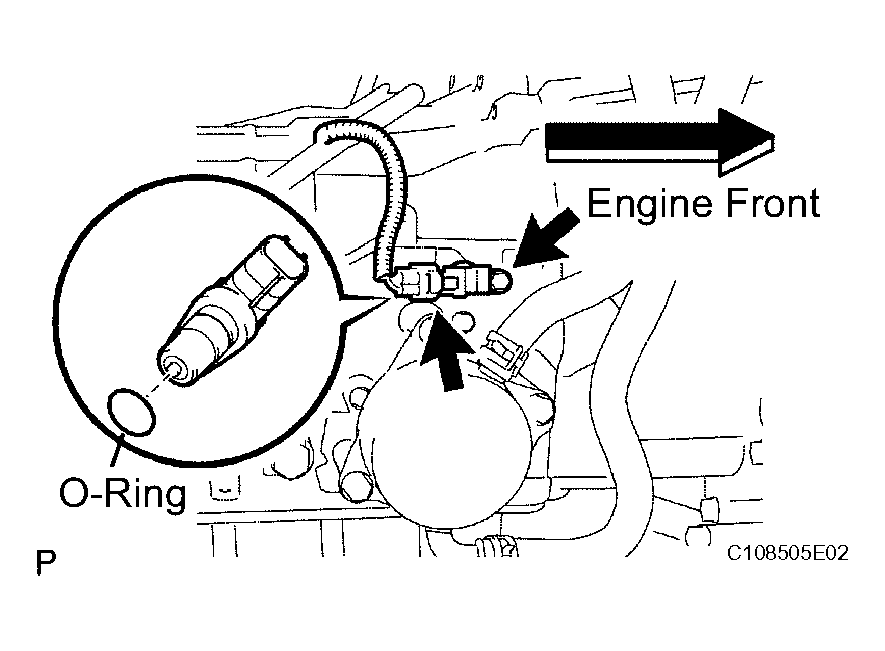

      Fig 1: Identifying Transmission Revolution Sensor
      G04052983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the O-ring from the transmission revolution sensor.
  2. REMOVE TRANSMISSION REVOLUTION SENSOR (SP2)
    1. Disconnect the transmission revolution sensor connector.
    2. Remove the bolt and transmission revolution sensor.

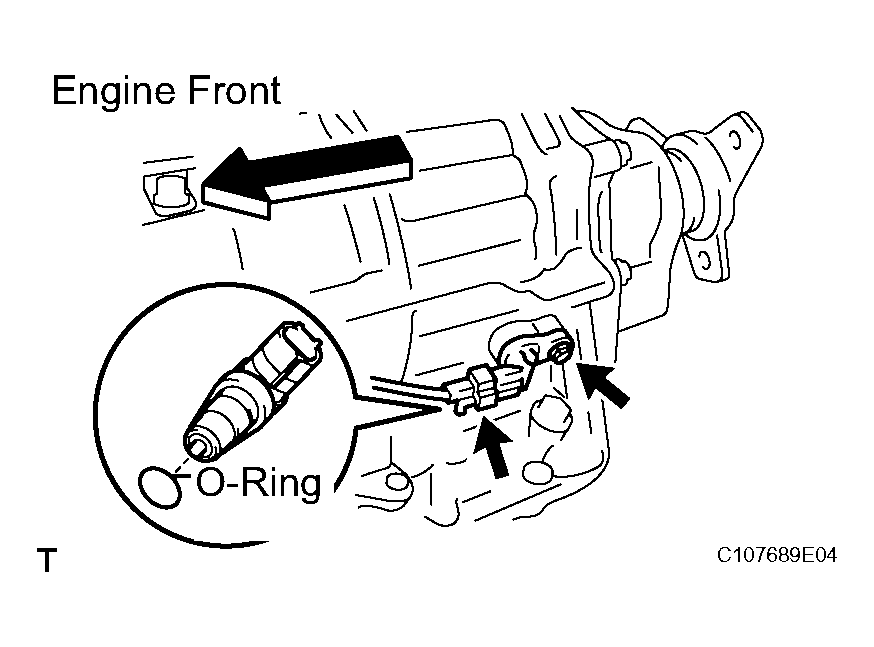

      Fig 2: Identifying O-Ring And Transmission Revolution Sensor
      G04052984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the O-ring from the transmission revolution sensor.
