Seat Belt Warning and Key Reminder without Smart Key System: Notes

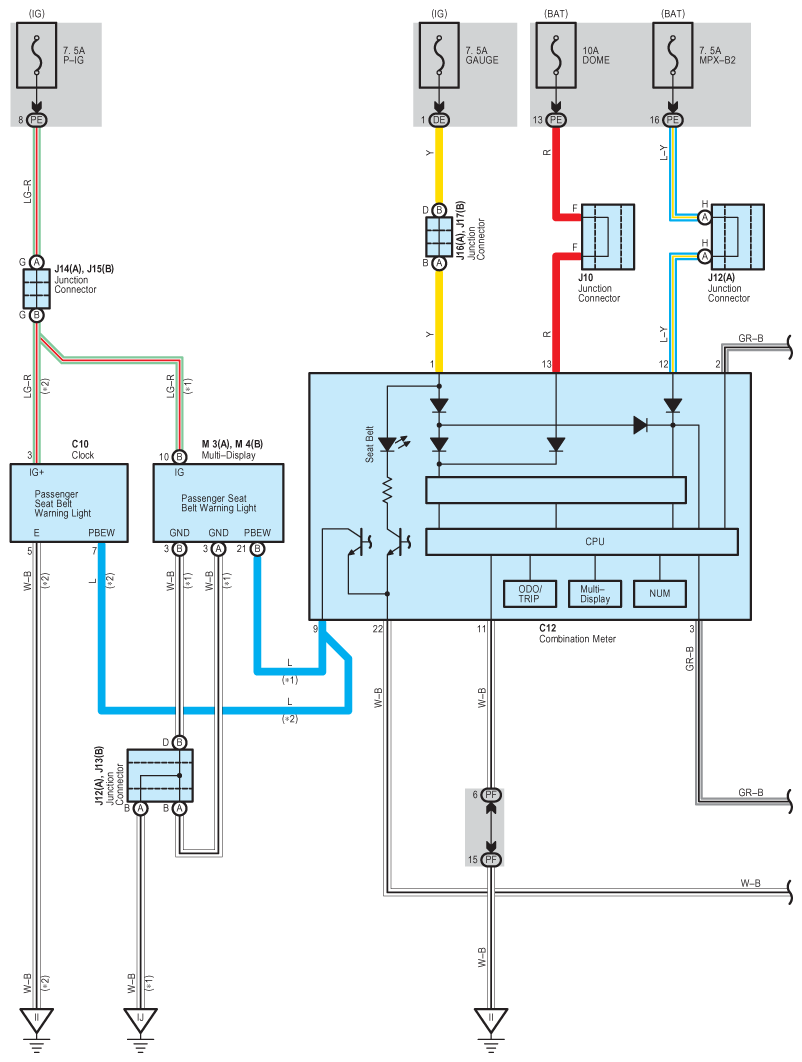

Fig 1: Seat Belt Warning And Key Reminder (Without Smart Key System) System Wiring Diagram (1 Of 2)
G08913817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

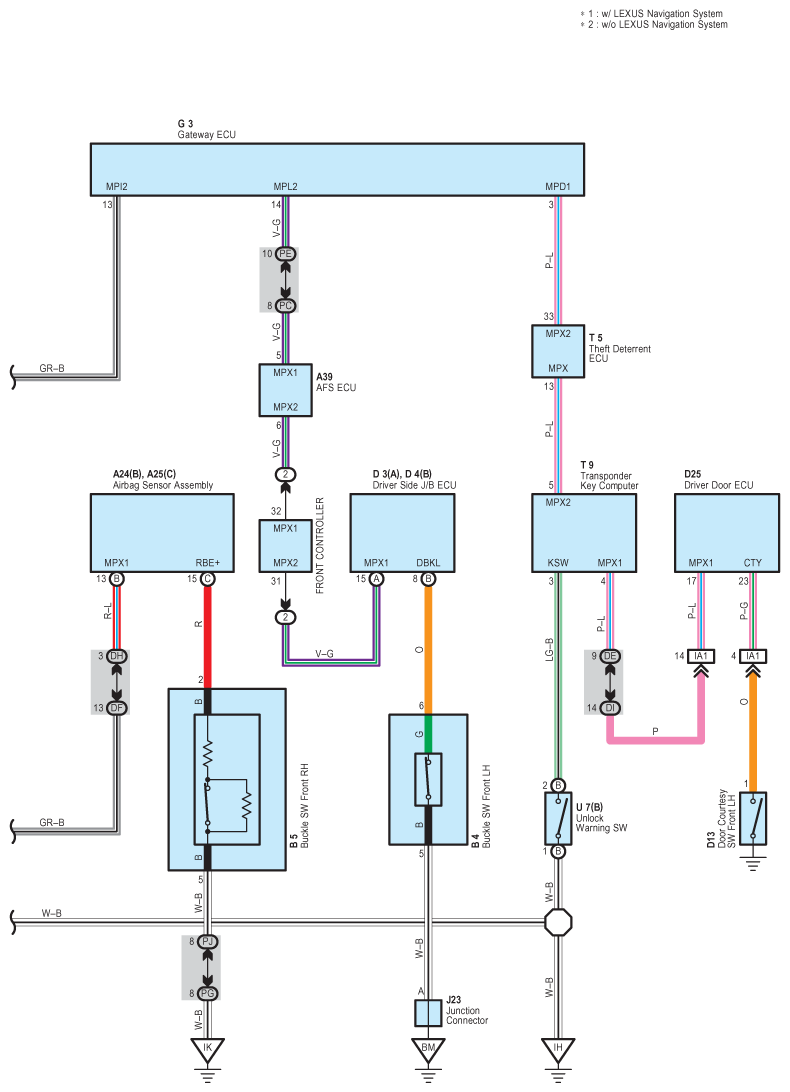

Fig 2: Seat Belt Warning And Key Reminder (Without Smart Key System) System Wiring Diagram (2 Of 2)
G08913818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
