Cruise Control Switch Circuit: Wiring Diagram

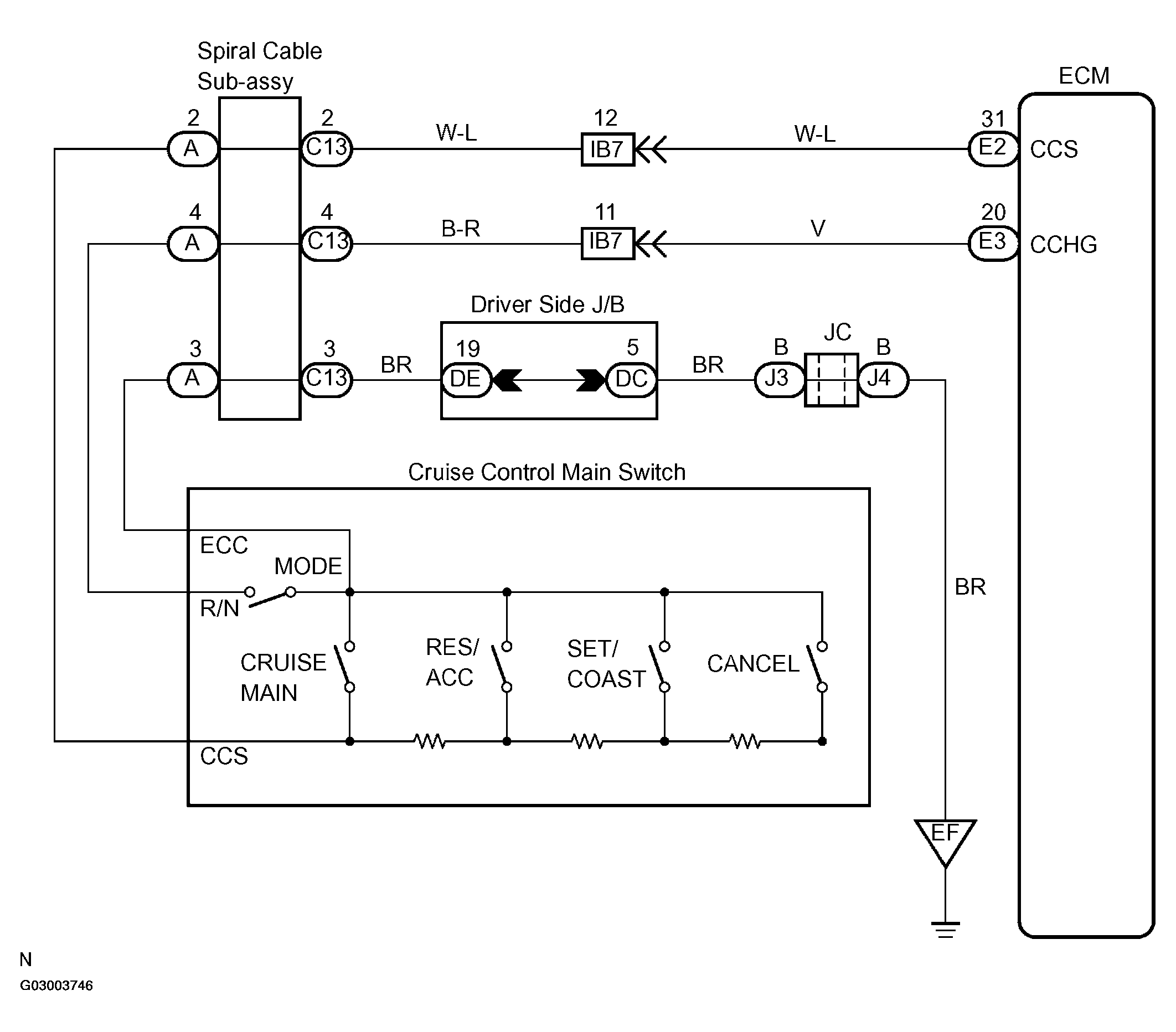

Fig 1: Wiring Diagram - Cruise Control Switch Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
