Audio & Visual System: Location

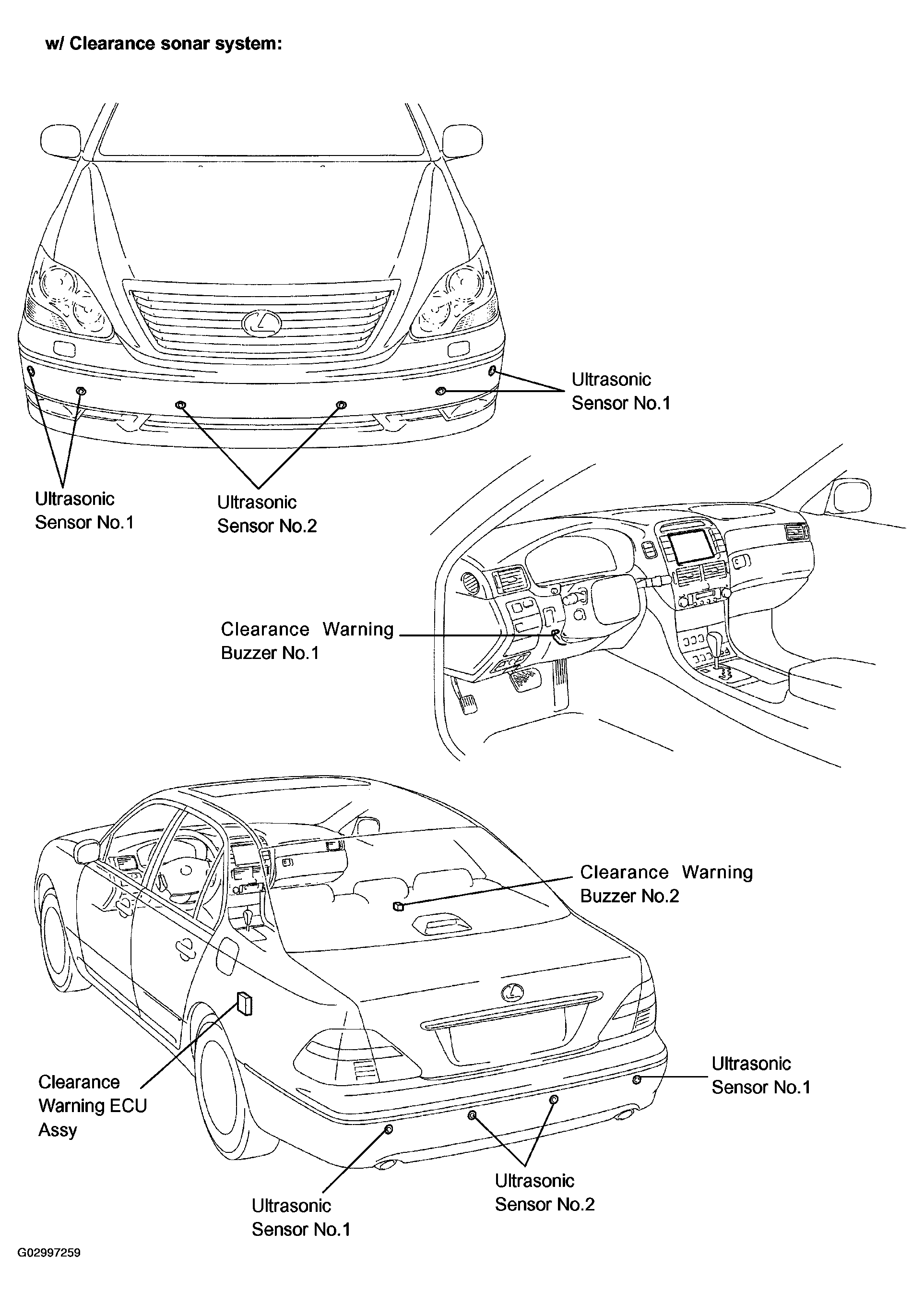

Fig 1: Identifying Component Locations (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

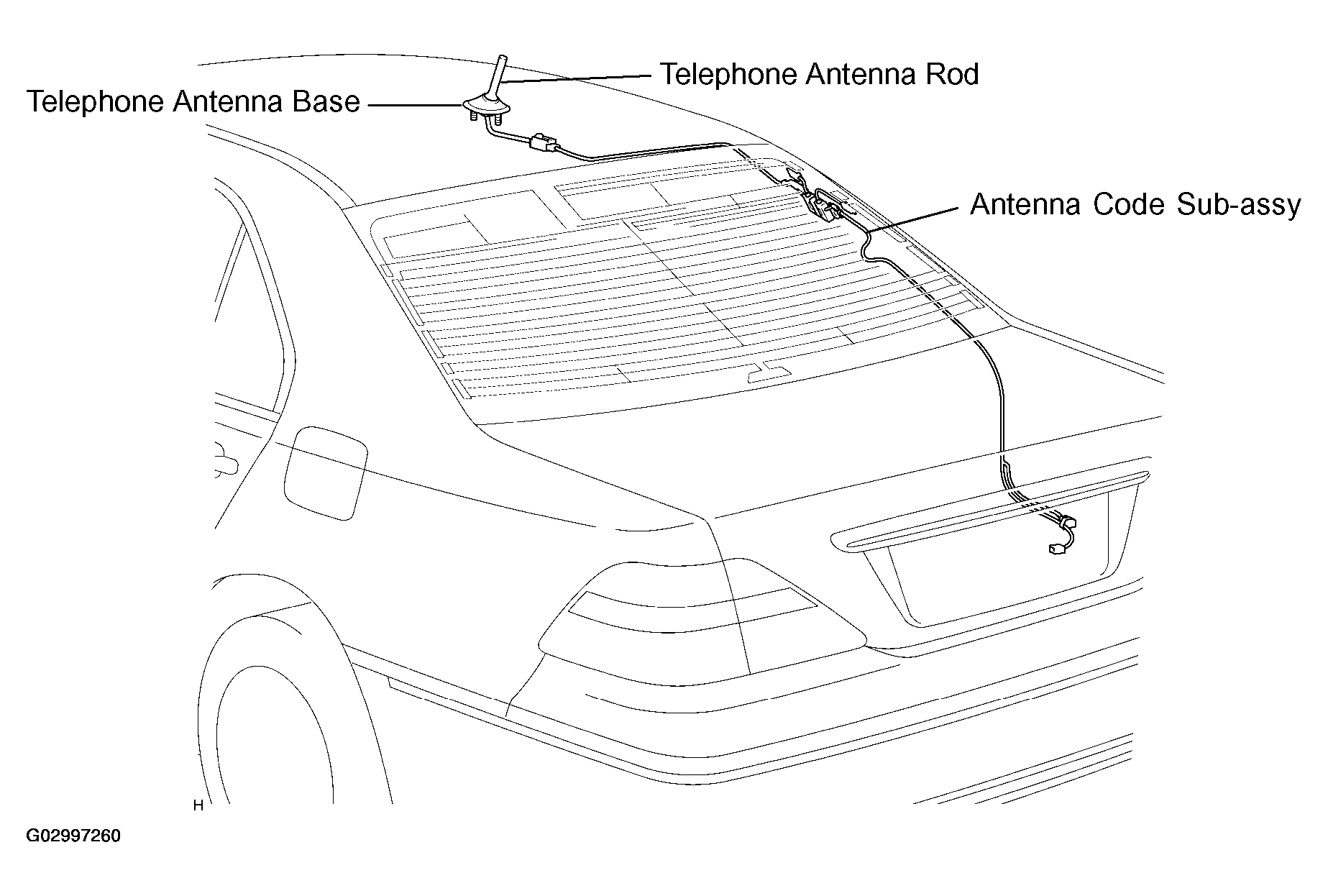

Fig 2: Identifying Component Locations (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

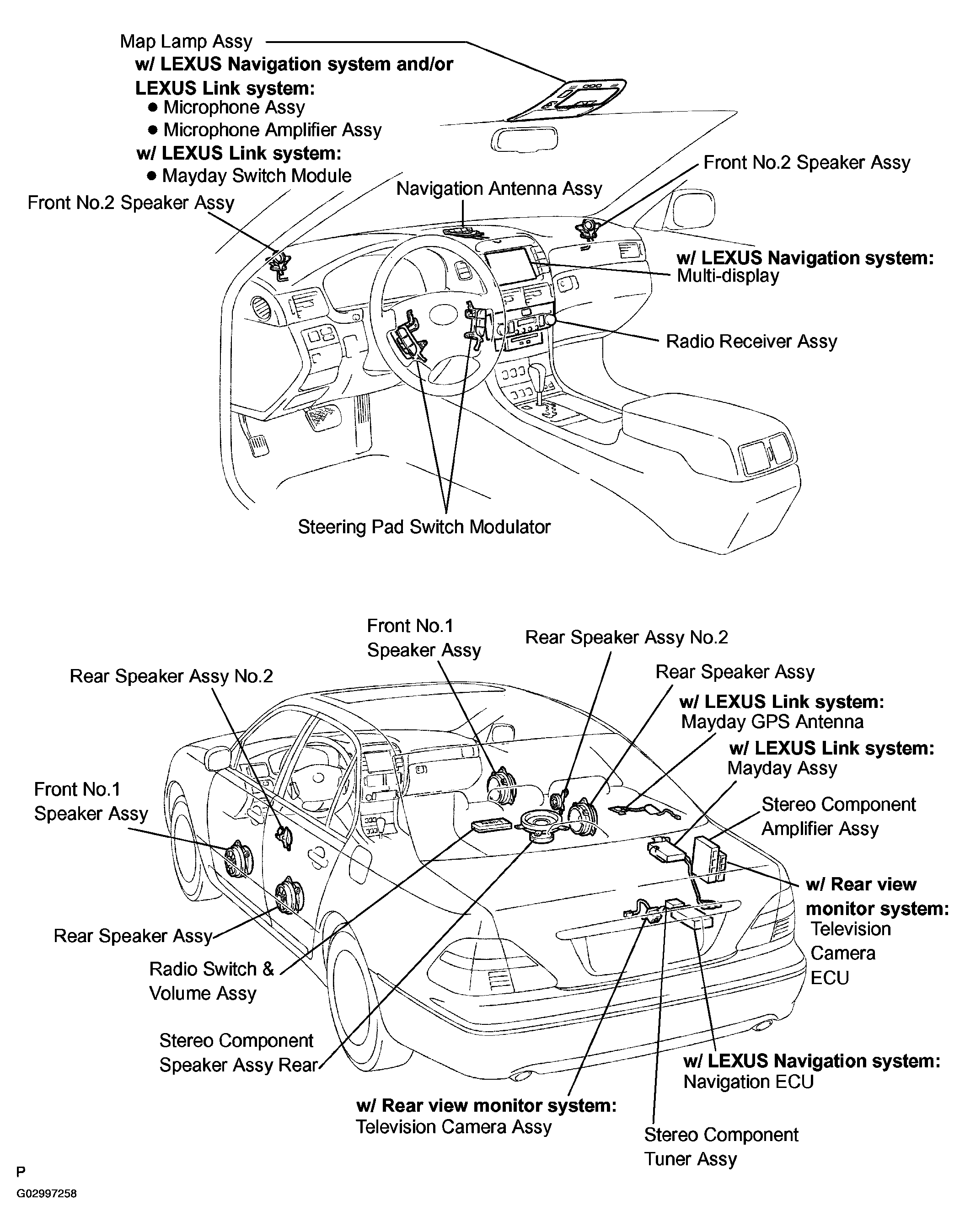

Fig 3: Identifying Component Locations (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
