Inspection Procedure

1. Turn the ignition switch to the ACC position.
2. Press the eject switch for 5 seconds, and check if the disc is ejected.

OK: The disc is ejected.

NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE

OK: Go to next step

1. Check that the CD is not deformed or cracked.

OK: No deformations or cracks appear on the CD.

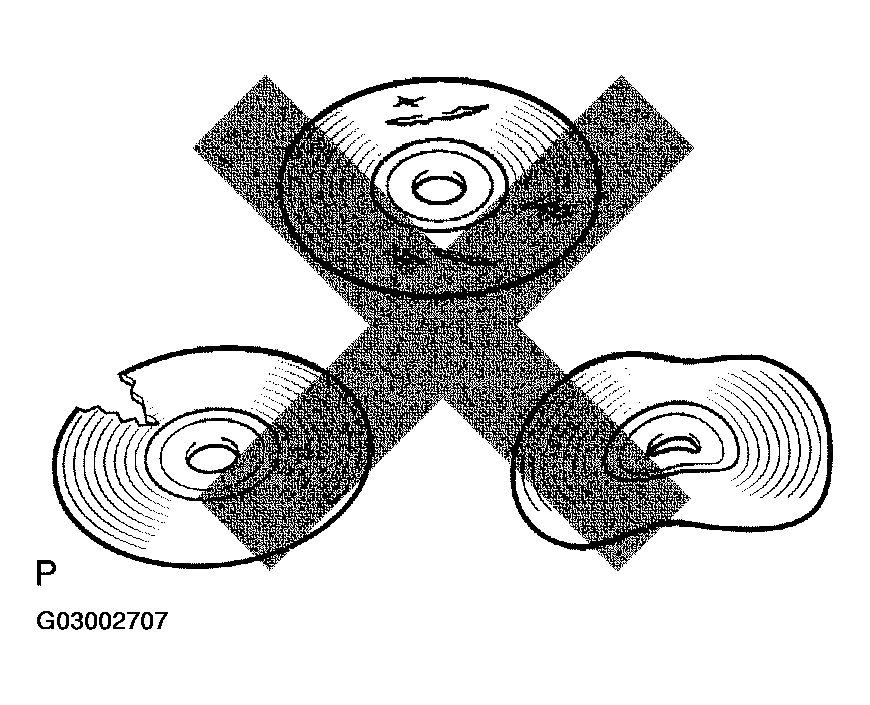

Fig 1: Checking CD

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE THE CD

OK: Go to next step

1. Insert another CD and check if it is ejected.

OK: The disc is ejected.

NG: REPLACE RADIO RECEIVER ASSY (SEE  REPLACEMENT  )

OK: NORMAL OPERATION
