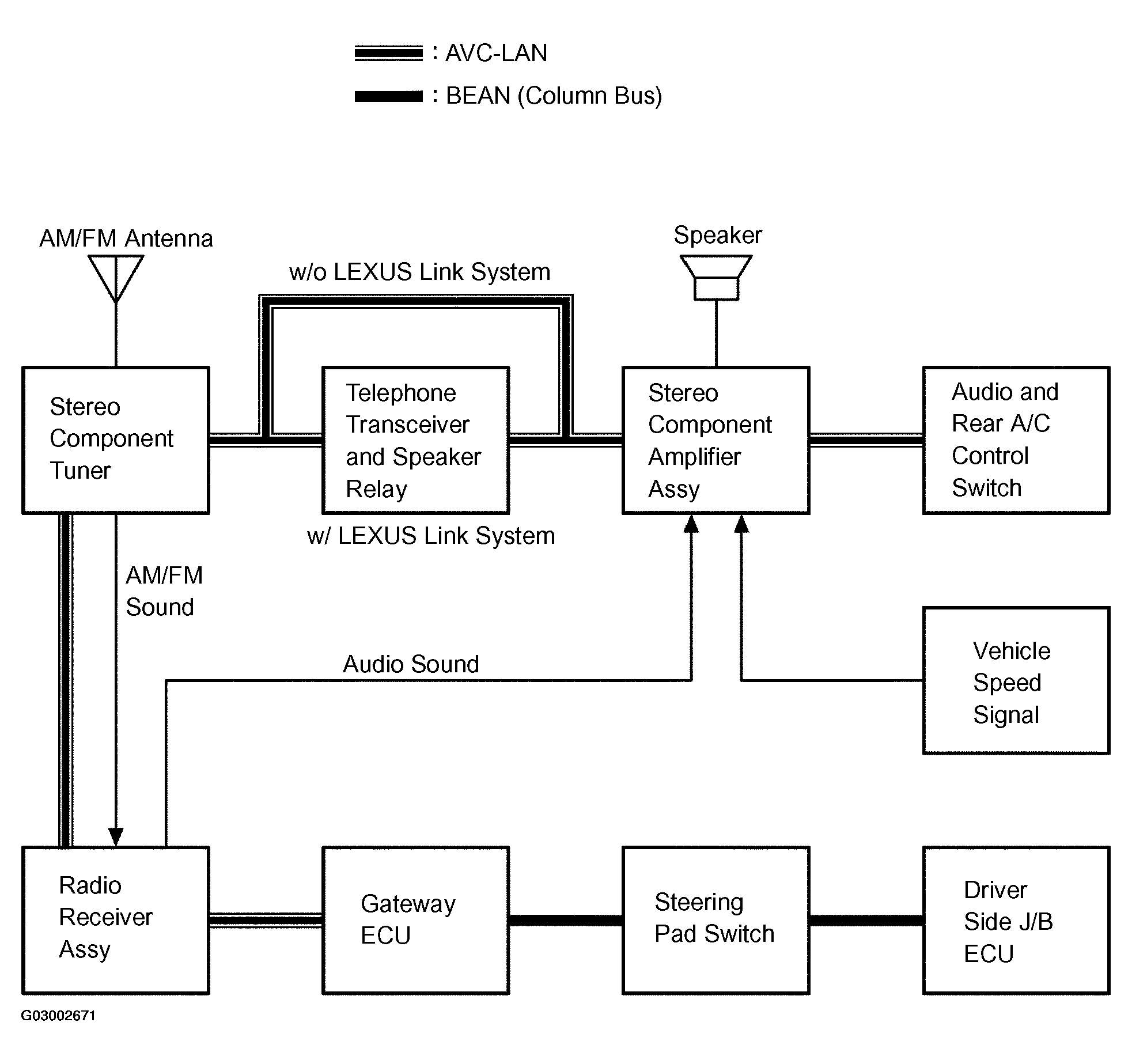

System Diagram
Input and output signals of each ECU.
TRANSMITTING ECU (TRANSMITTER) CHART
| Transmitting ECU (Transmitter) | Receiving ECU | Signals | Communication method |
|---|---|---|---|
| Driver Side J/B ECU | Steering Pad Switch | ACC SW Signal | BEAN (Column Bus) |
| Driver Side J/B ECU | Steering Pad Switch | Taillight ON Signal | BEAN (Column Bus) |
| Steering Pad Switch | Radio Receiver Assy | Audio Signal | BEAN (Column Bus) AVC-LAN |
