Inspection Procedure

1. Check if a cellular phone can make calls in a certain place.

   OK: It can make calls.

NG: END (CELLULAR PHONES CAN ONLY FUNCTION IN CELLULAR SERVICE AREAS

OK: GO TO NEXT STEP

Fig 1: Displaying Surrounding Conditions

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

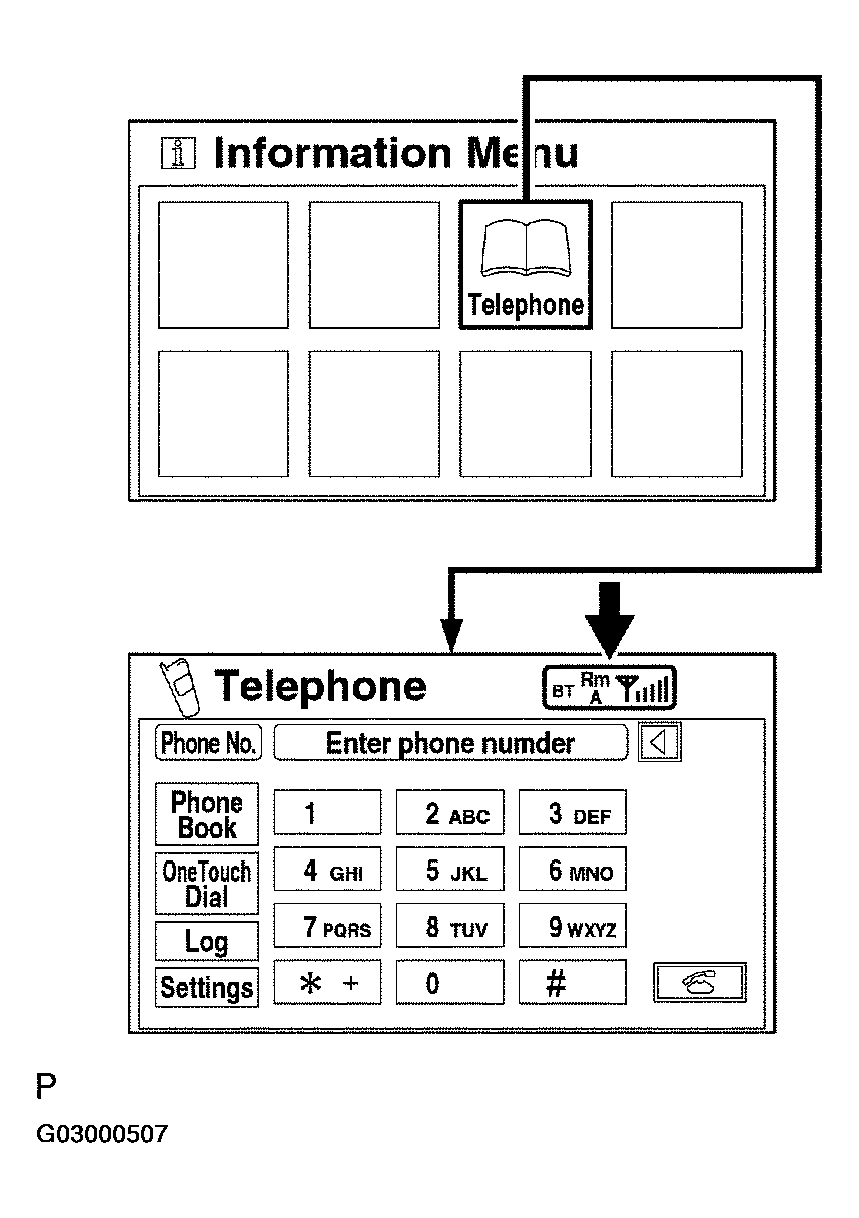

1. Check if the reception level is the same on a cellular phone and the multi-display.

   OK: The reception level is different.

NG: REPLACE MULTI-DISPLAY (SEE  REPLACEMENT  )

OK: GO TO NEXT STEP

Fig 2: Placing A Cellular Phone Close To Multi-Display

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Place a cellular phone close to the multi-display.
2. Check if the reception level becomes the same on the cellular phone and the multi-display.

   OK: The reception level does not become the same.

NG: REPLACE MULTI-DISPLAY (SEE  REPLACEMENT  )

OK: END (MULTI-DISPLAY RECEIVES THE DIFFERENT STRENGTH OF RADIO WAVE DEPENDING ON THE RADIO WAVES STRENGTH TRANSMITTED BY CELLULAR PHONE
