LEXUS Navigation System - Diagnostics: Location

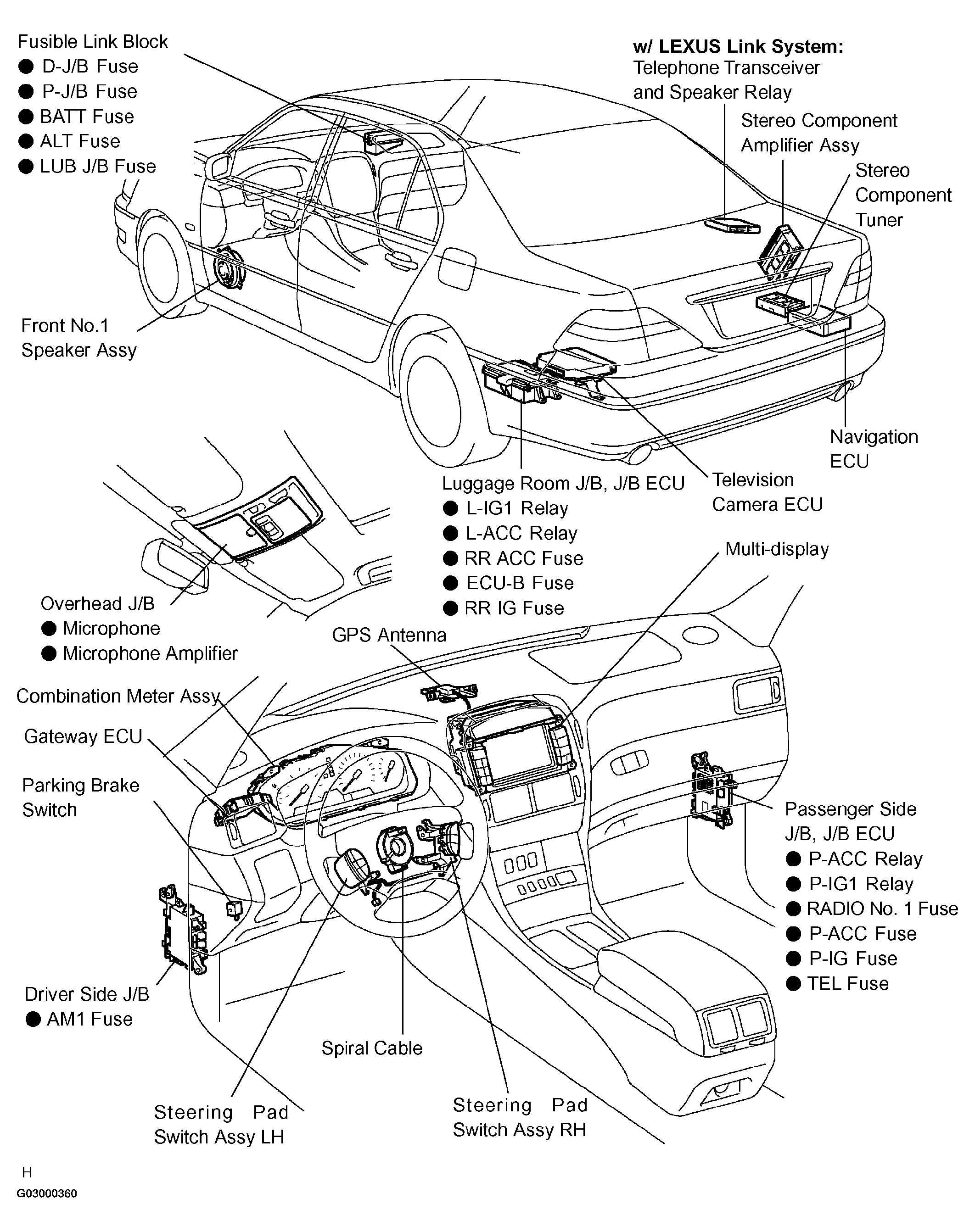

Fig 1: Locating Lexus Navigation System Components
G03000360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
