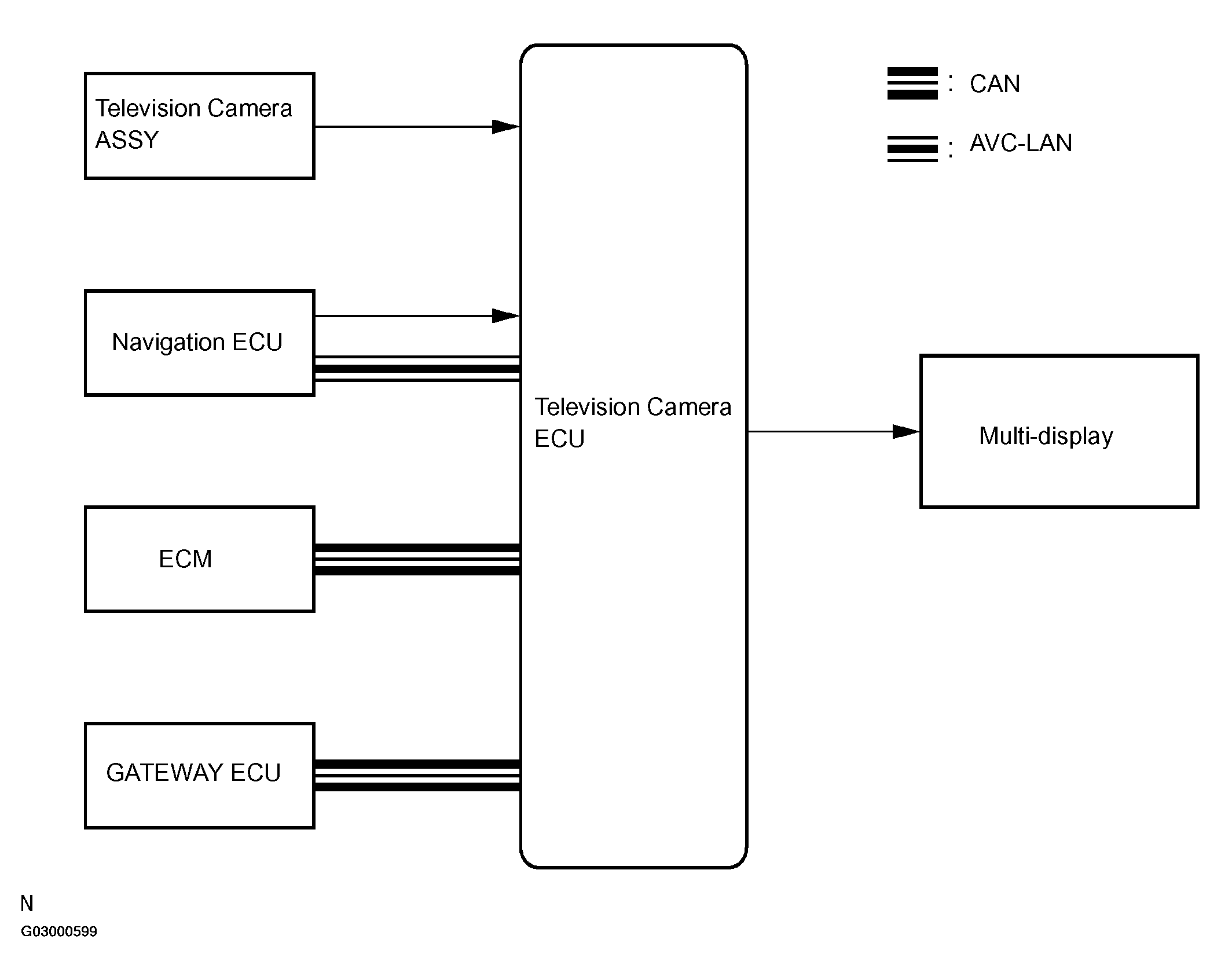

System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Input and output signals of each ECU.
ECU INPUT AND OUTPUT SIGNALS - REFERENCE TABLE
| Transmitting ECU (transmitter) |
Receiving ECU |
Signals |
Communication method |
| ECM |
Television Camera ECU |
Shift R position signal |
CAN |
