Wireless Door Lock Control System (W/O Smart Key System): Registration

HINT:

• Recognition code registration is necessary when replacing the door control transmitter or the door control receiver. The key has 2 codes: the key code (immobilizer code) and wireless code. All of these code types need to be registered. Refer to page 05-3027 for the key code (immobilizer code) registration procedures.
• Add mode is used to register new recognition codes while still retaining codes already registered. This mode is used when a new transmitter is added. If the number of registered codes exceeds. 4, the previously registered codes will be erased, starting from the first registered code.
• Rewrite mode is used to erase all the previously registered recognition codes in order to register all-new recognition codes. This mode is used when the transmitter or the door control receiver is replaced.
• Confirmation mode is used to confirm how many recognition codes have already been registered before another recognition code is registered.
• Prohibition mode is used to erase all the registered codes and disable the wireless door lock function. This mode is used when the transmitter is lost.
• All of the following registration procedures must be performed in order.

1. REGISTER RECOGNITION CODE

   When using the hand-held tester

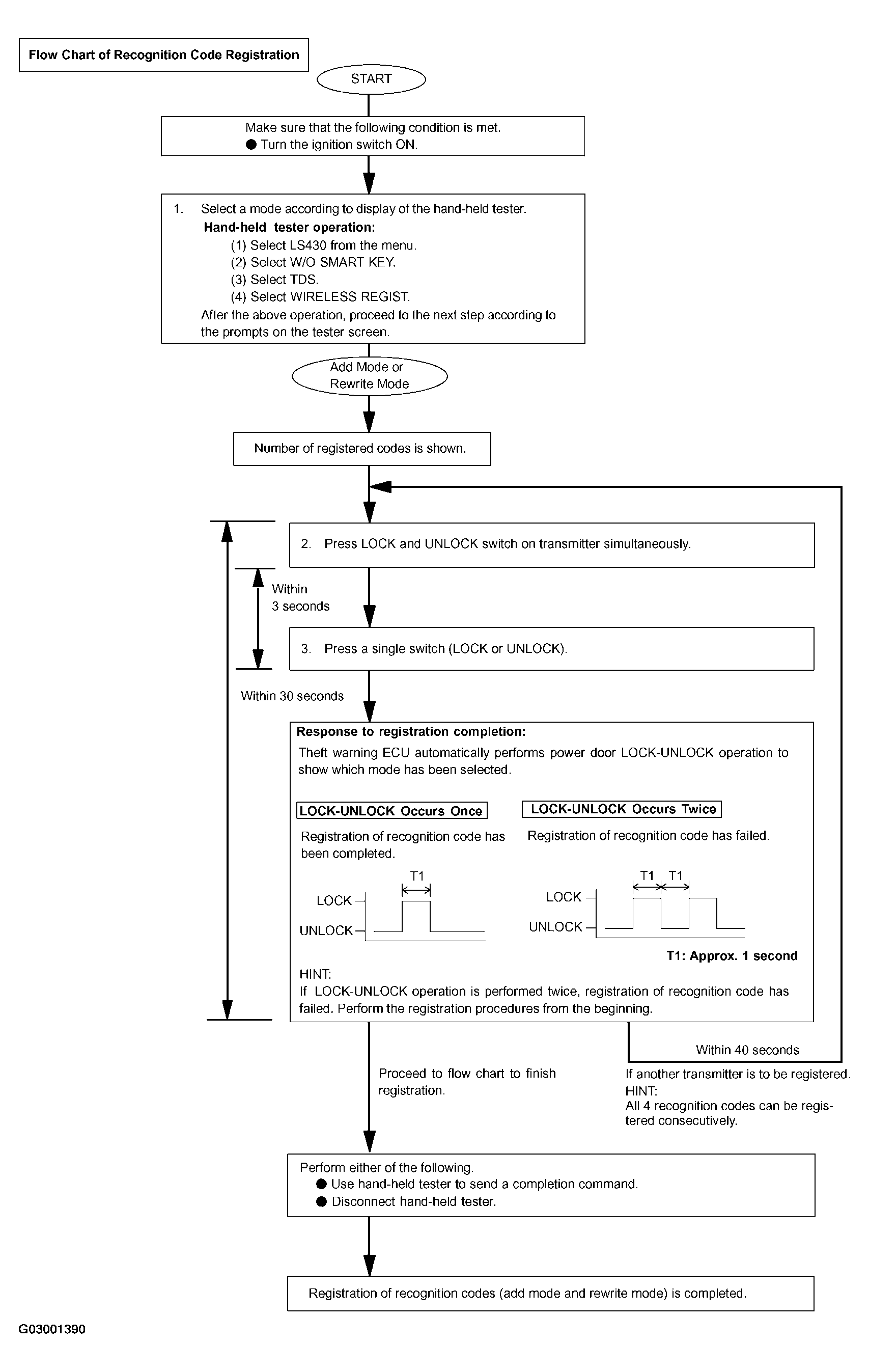

   Fig 1: Recognition Code Registration Flow Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. REGISTER RECOGNITION CODE

   When not using the hand-held tester

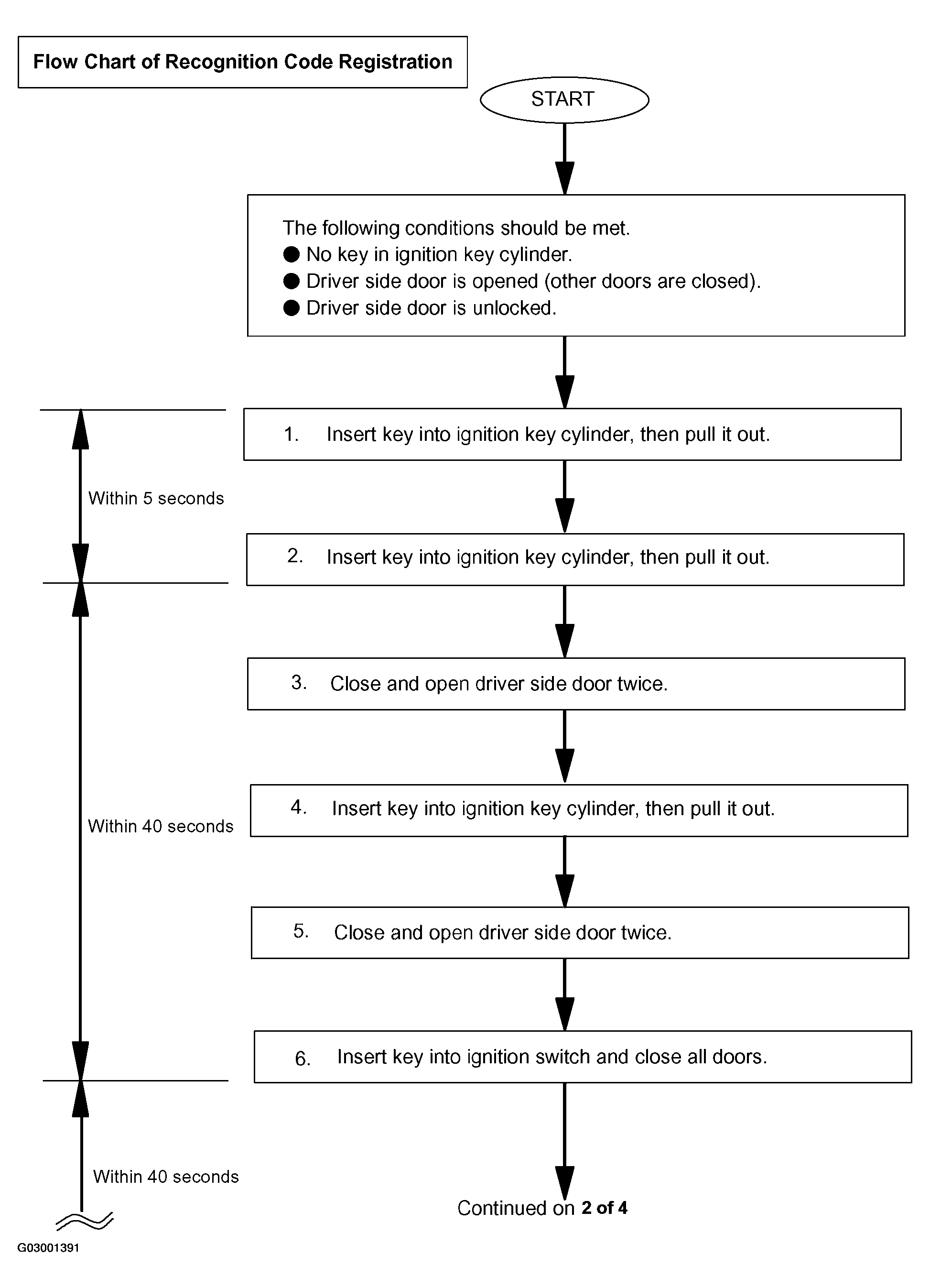

   Fig 2: Recognition Code Registration Flow Chart (1 Of 4)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

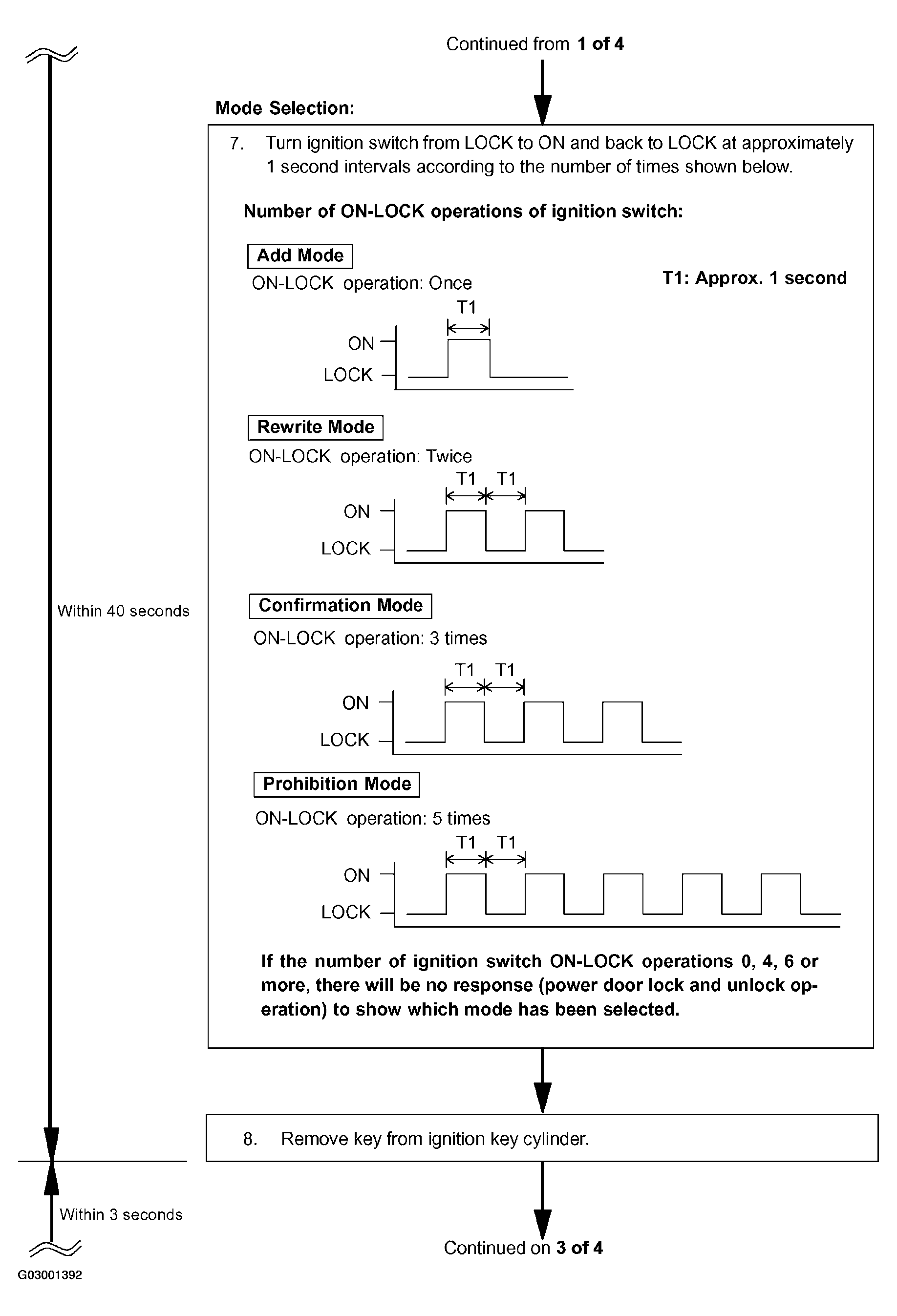

   Fig 3: Recognition Code Registration Flow Chart (2 Of 4)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

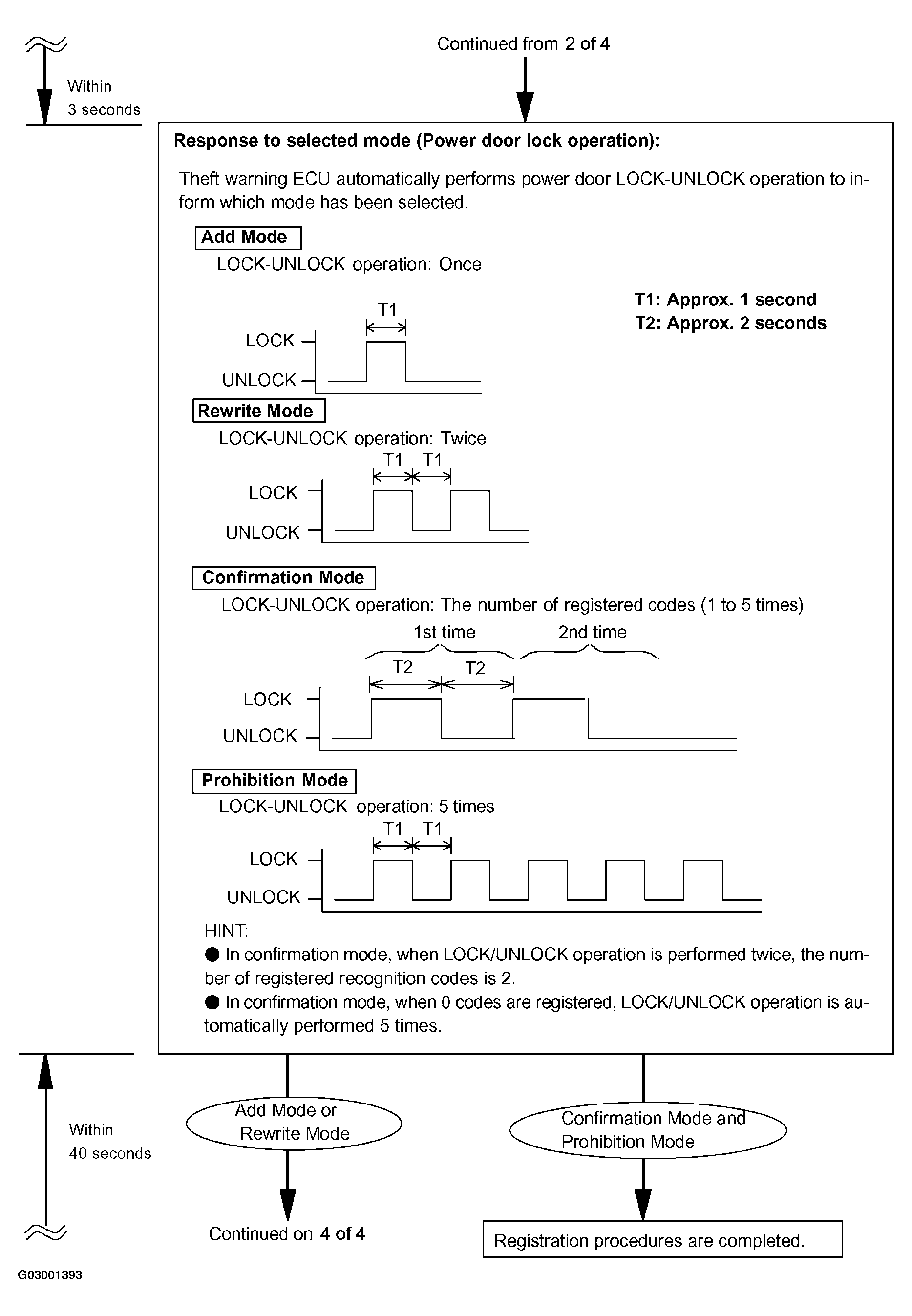

   Fig 4: Recognition Code Registration Flow Chart (3 Of 4)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

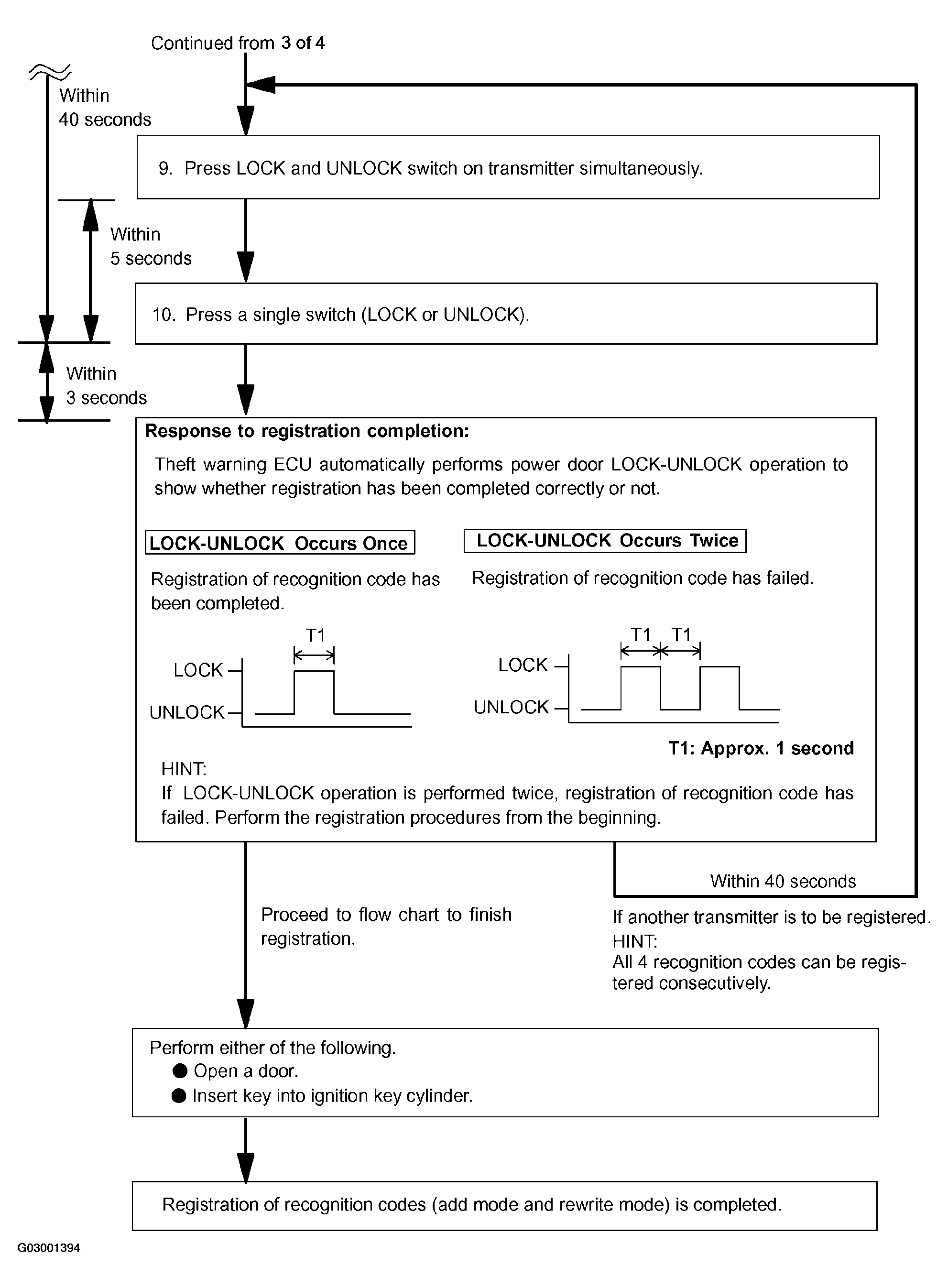

   Fig 5: Recognition Code Registration Flow Chart (4 Of 4)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
