Wireless Door Lock Control System - Diagnostics
›
Wireless Door Lock Control System (W/Smart Key System)
›
Ecu Power Source Circuit
›
Wiring Diagram
Ecu Power Source Circuit: Wiring Diagram

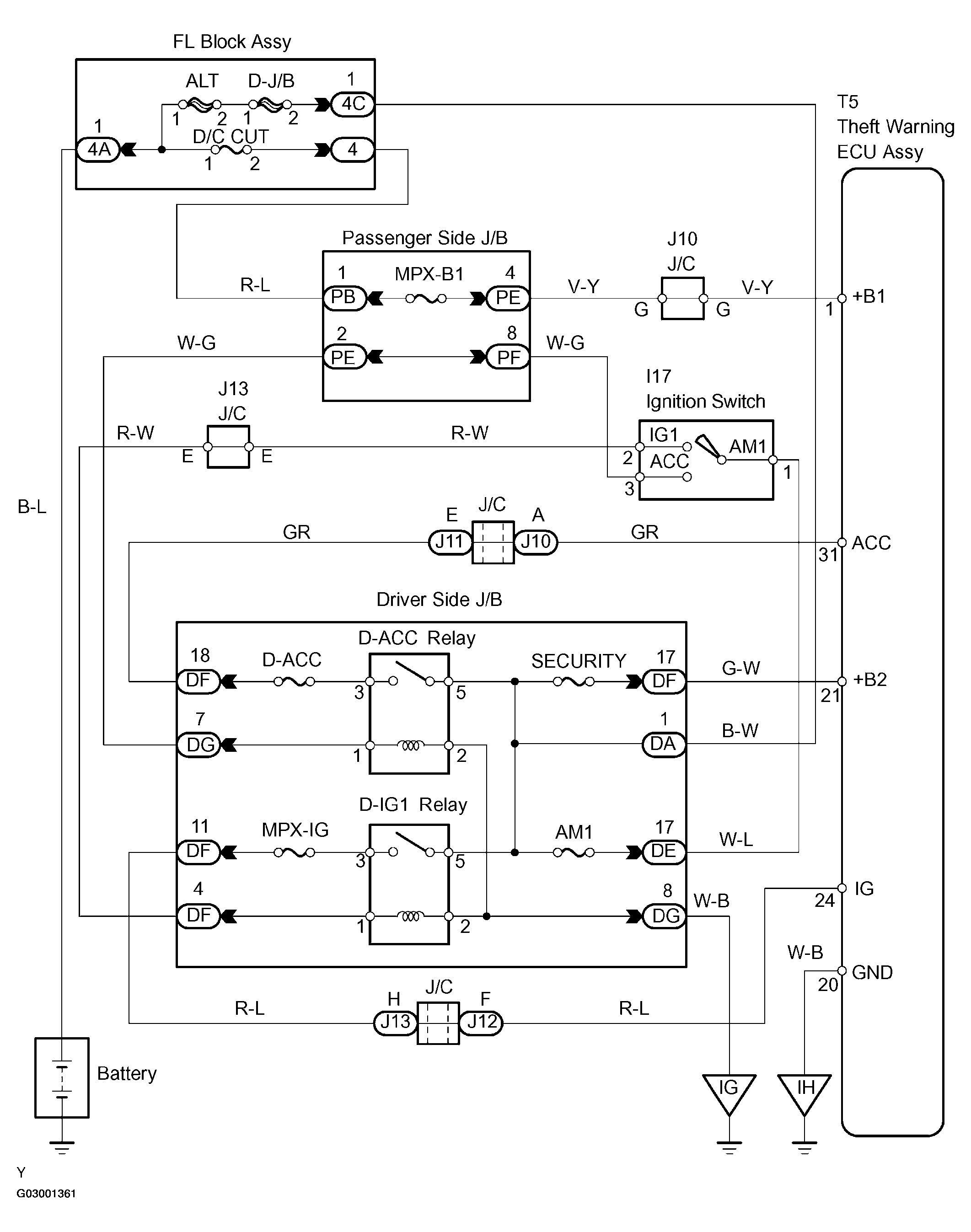

Fig 1: ECU Power Source Wiring Diagram
