System Diagram

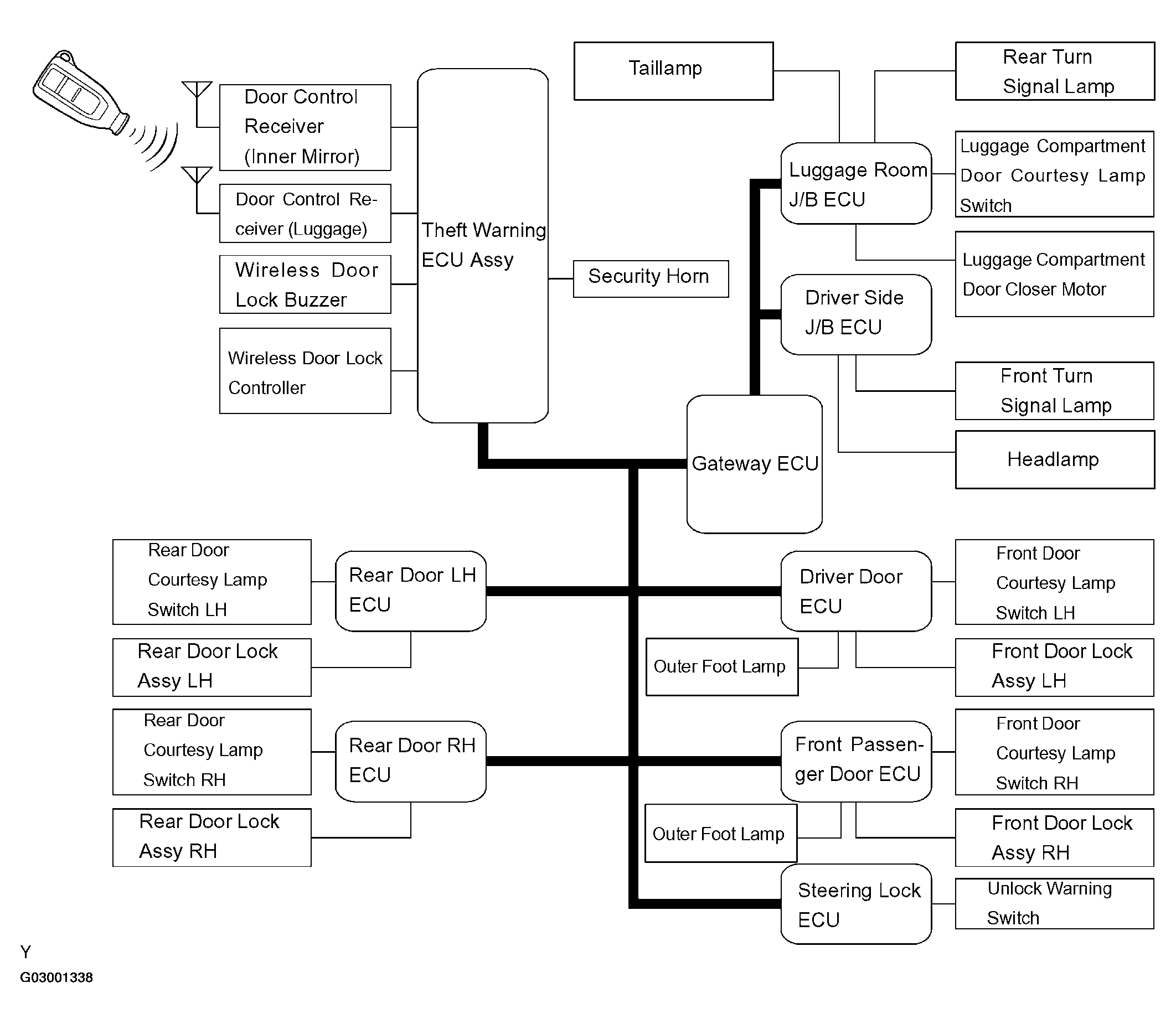

Fig 1: Wireless Door Lock Control System Diagram
G03001338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

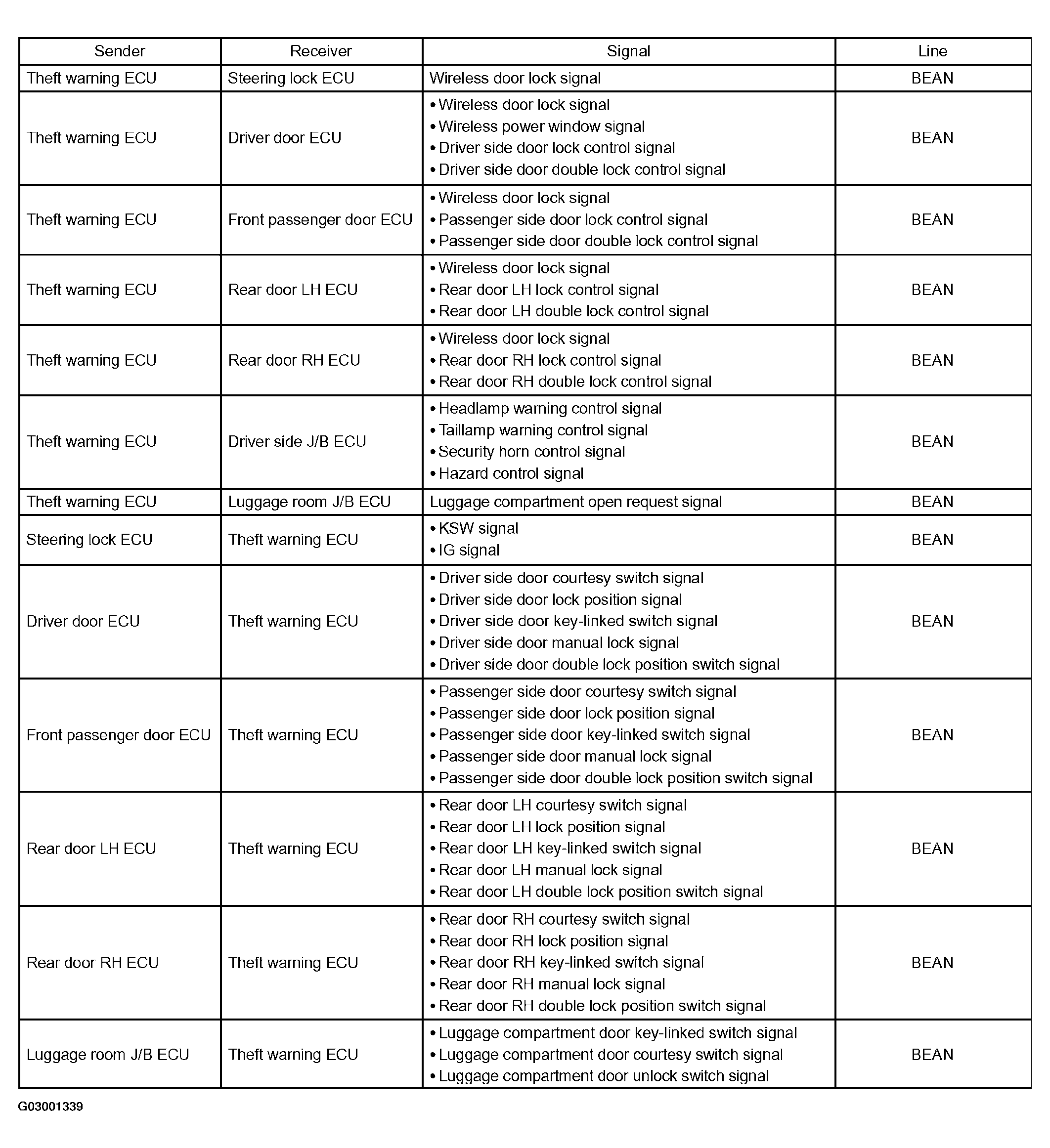

Fig 2: Sender Receiver Signal Line Description
G03001339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
