Climate Control Seat System - Diagnostics
›
Climate Control Does Not Operate (Blinking Pattern 2)
›
Wiring Diagram
Climate Control Does Not Operate (Blinking Pattern 2): Wiring Diagram

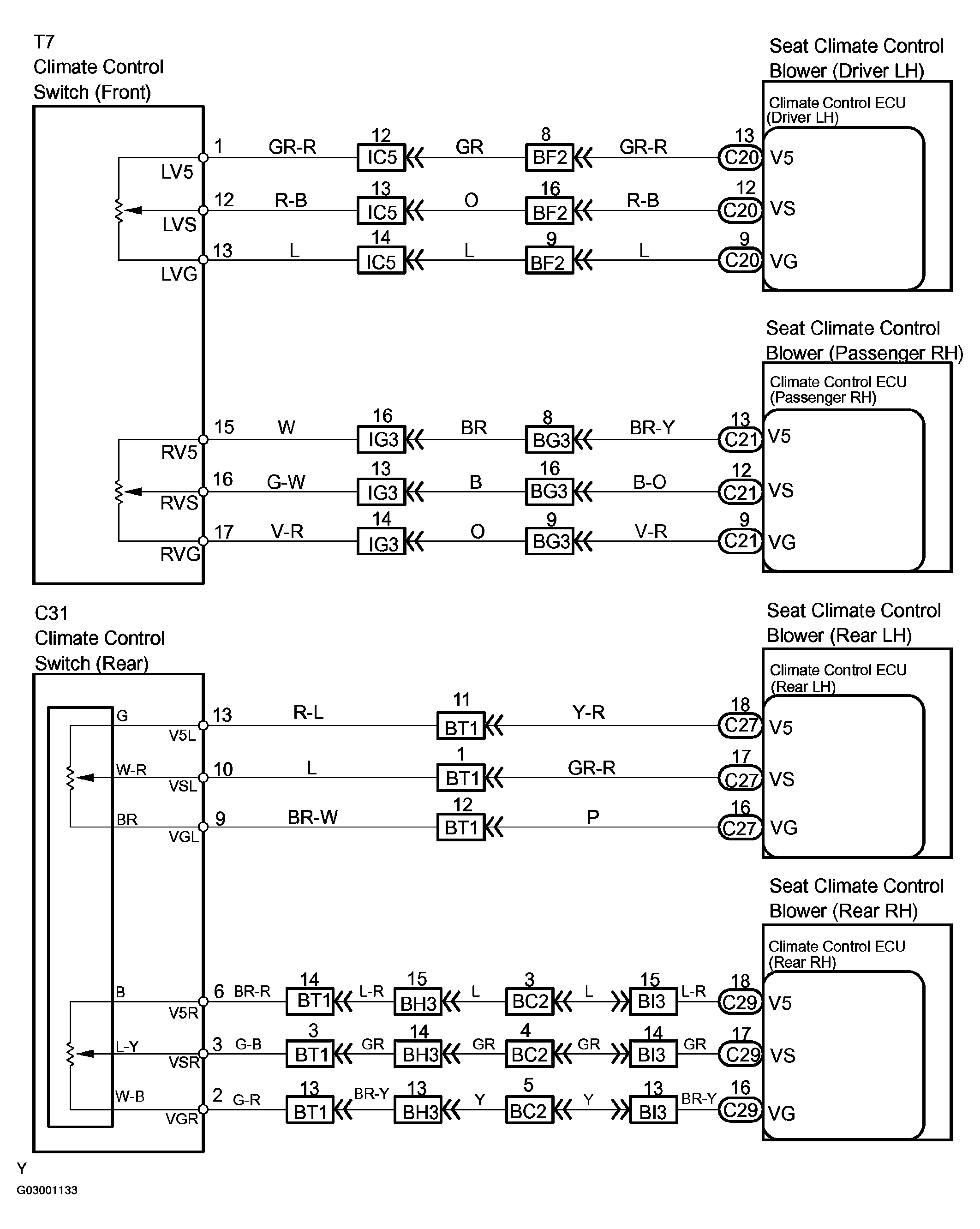

Fig 1: Climate Control Does Not Operate (Blinking Pattern 2) Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
