Climate Control Seat System - Diagnostics
›
Climate Control System Does Not Operate On Rear Side
›
Wire Diagram
Wire Diagram

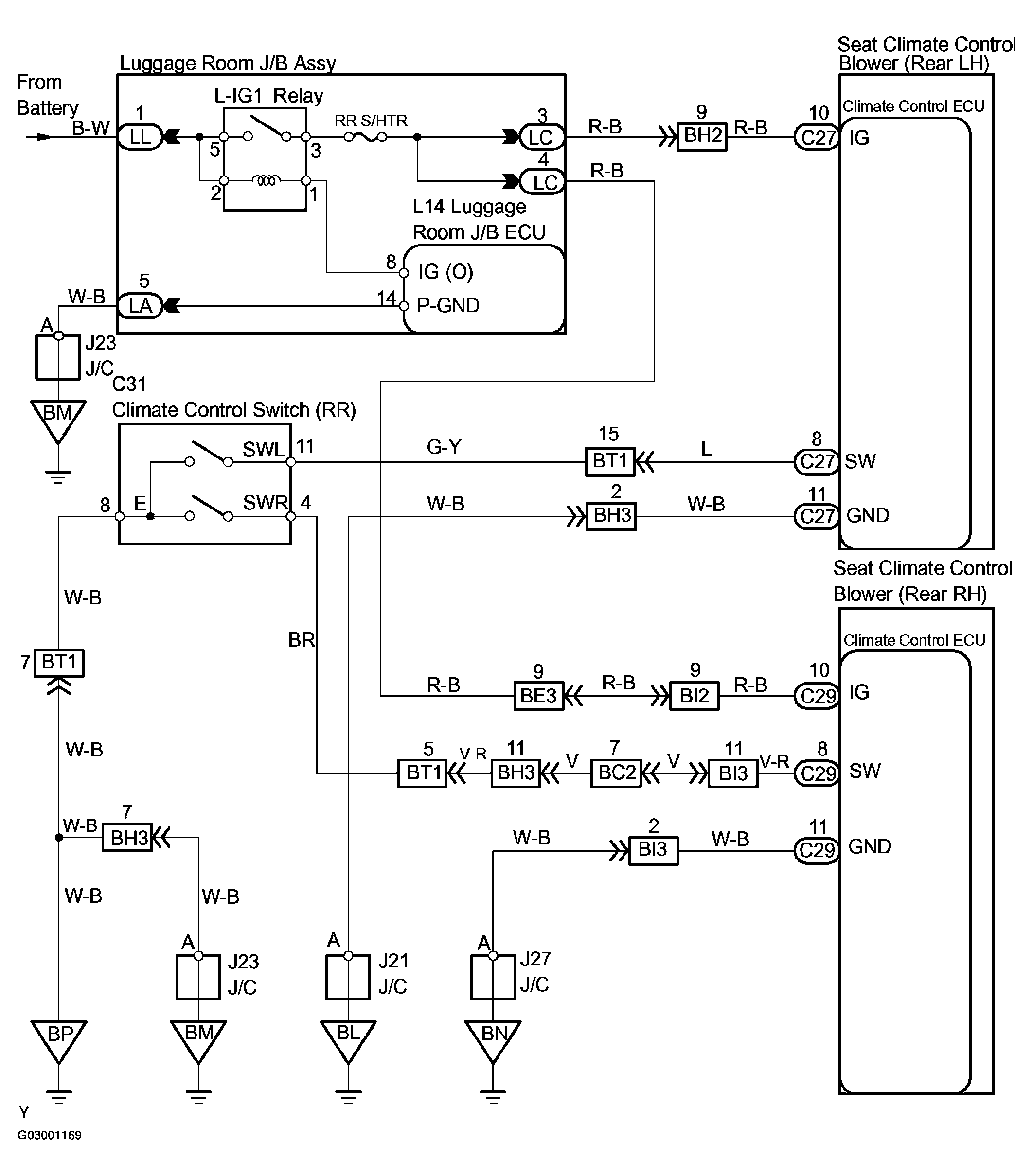

Fig 1: Climate Control System Does Not Operate On Rear Side - Wire Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
