System Diagram

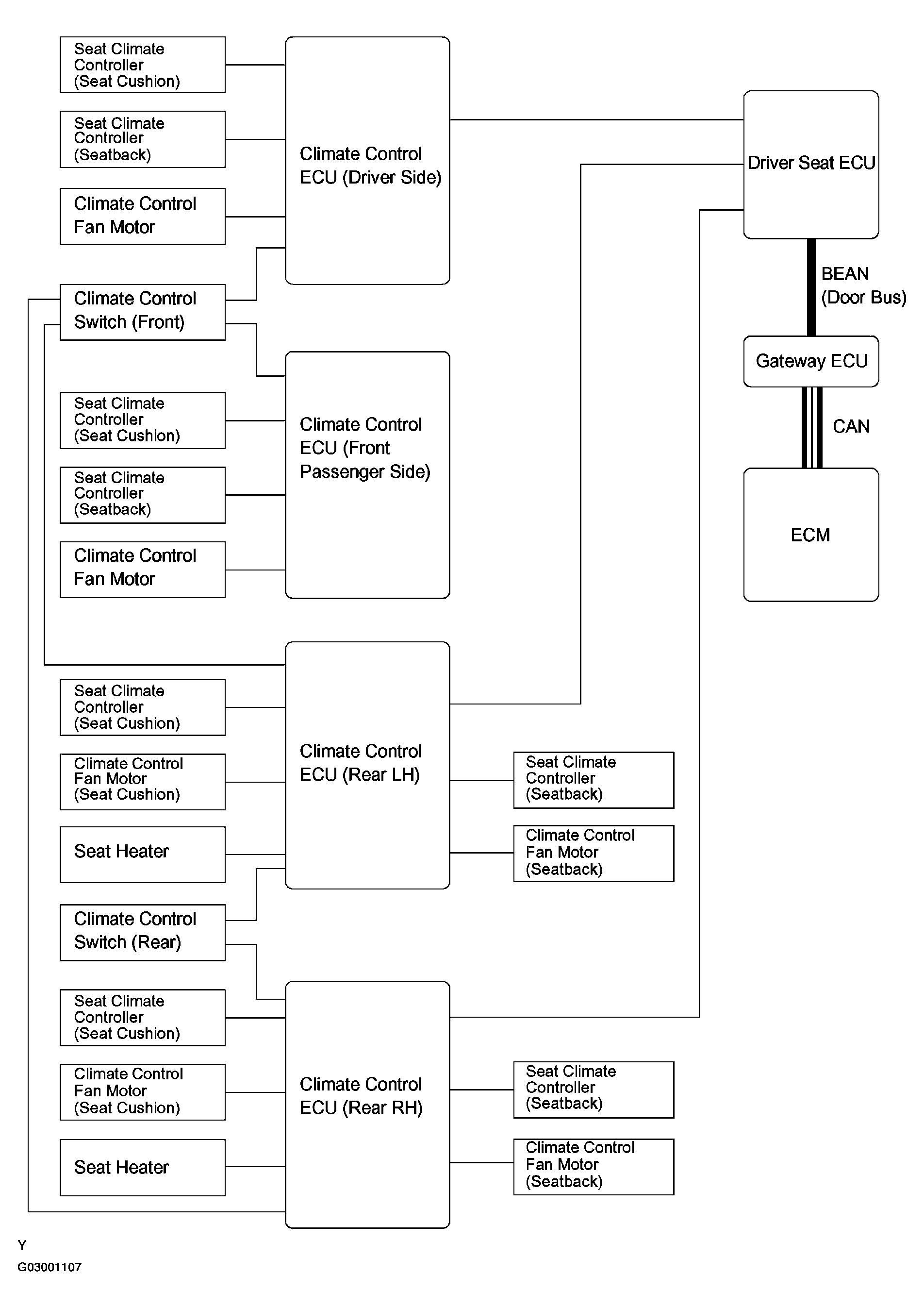

Fig 1: Climate Control Seat System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

COMMUNICATION

Sender	Receiver	Signal	Line
Climate control ECU	ECM	Idle-up signal	BEAN (Door bus), CAN
