Power Window Control System - Diagnostics
›
Power Window Regulator Switch Circuit (Rear LH)
›
Wiring Diagram
Power Window Regulator Switch Circuit (Rear LH): Wiring Diagram

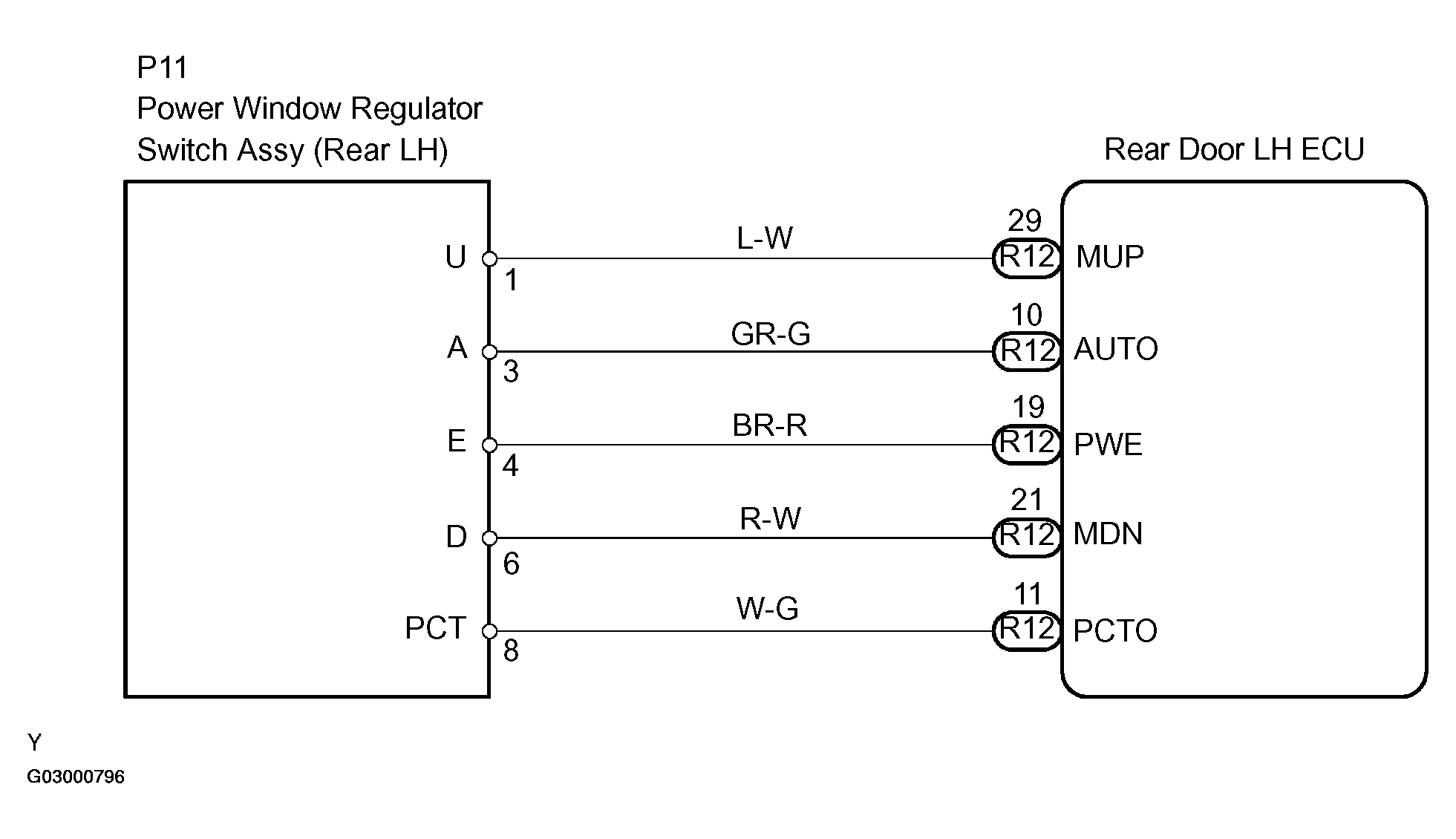

Fig 1: Power Window Regulator Switch Circuit Wiring Diagram (Rear LH)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
