Climate Control Seat (Front): Notes

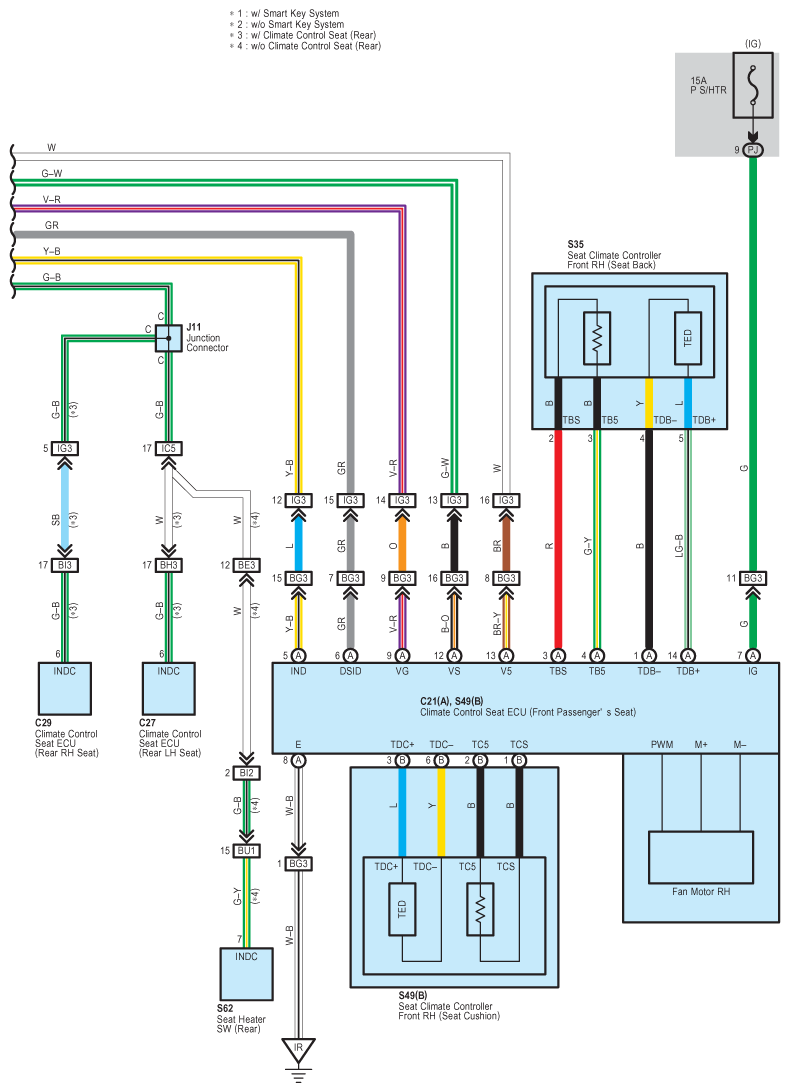

Fig 1: Climate Control Seat (Front) System Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

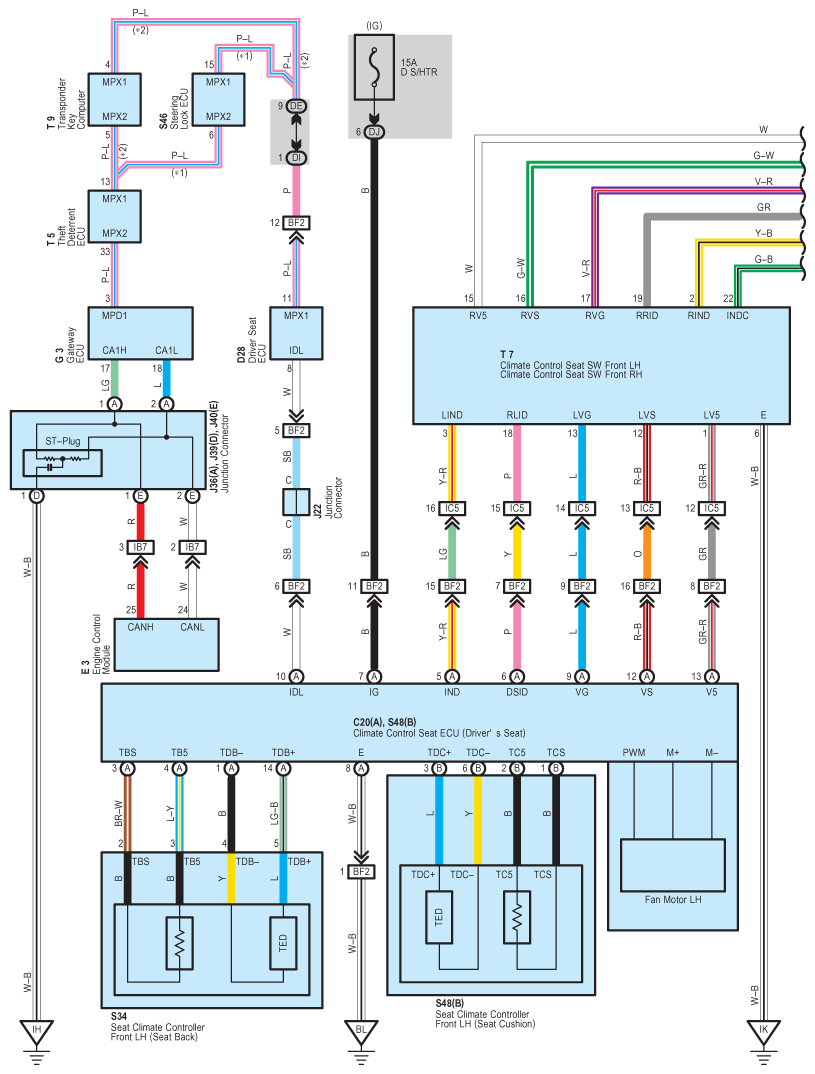

Fig 2: Climate Control Seat (Front) System Wiring Diagram (2 Of 2)
