Clock without Navigation System
›
Notes
Clock without Navigation System: Notes

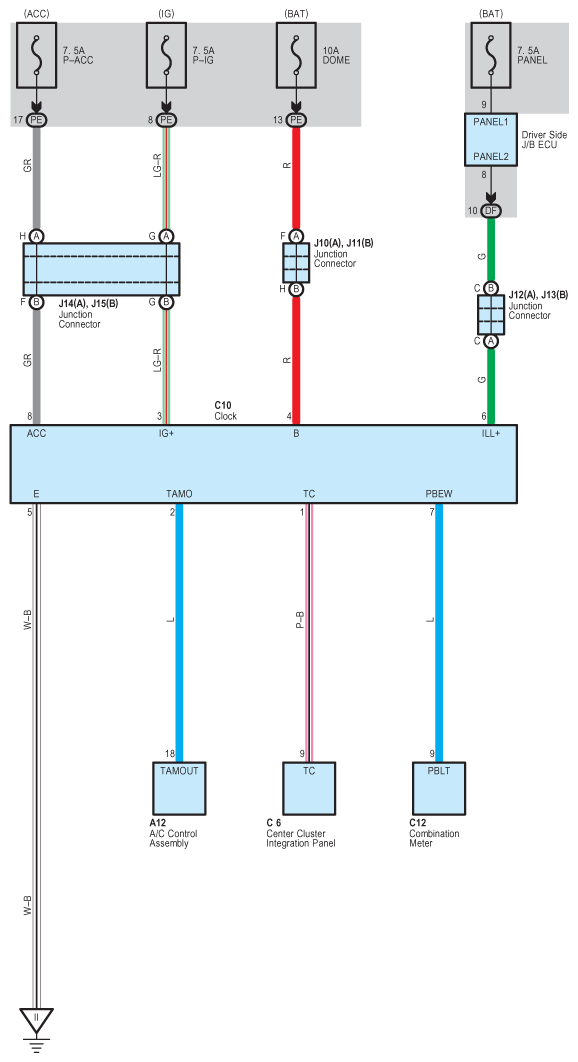

Fig 1: Clock Without Navigation System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
