Engine Immobiliser System with Smart Key and Steering Lock System: Notes

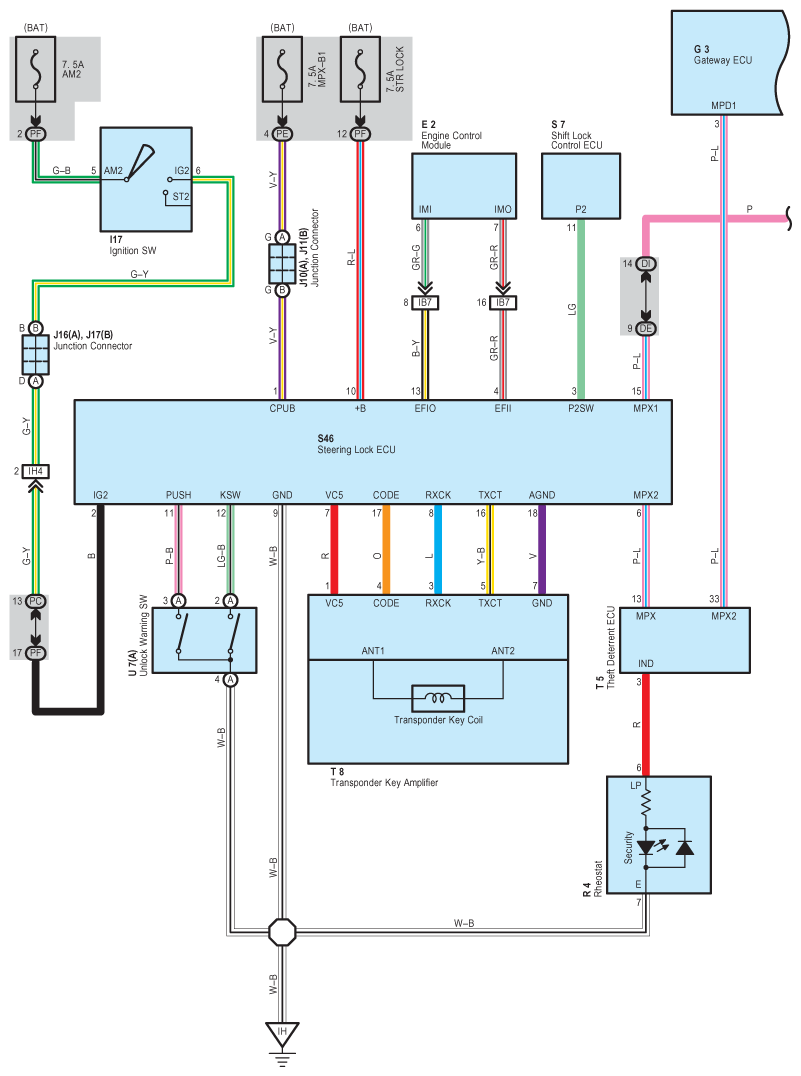

Fig 1: Engine Immobiliser System With Smart Key And Steering Lock System Wiring Diagram (1 Of 2)
G08913691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

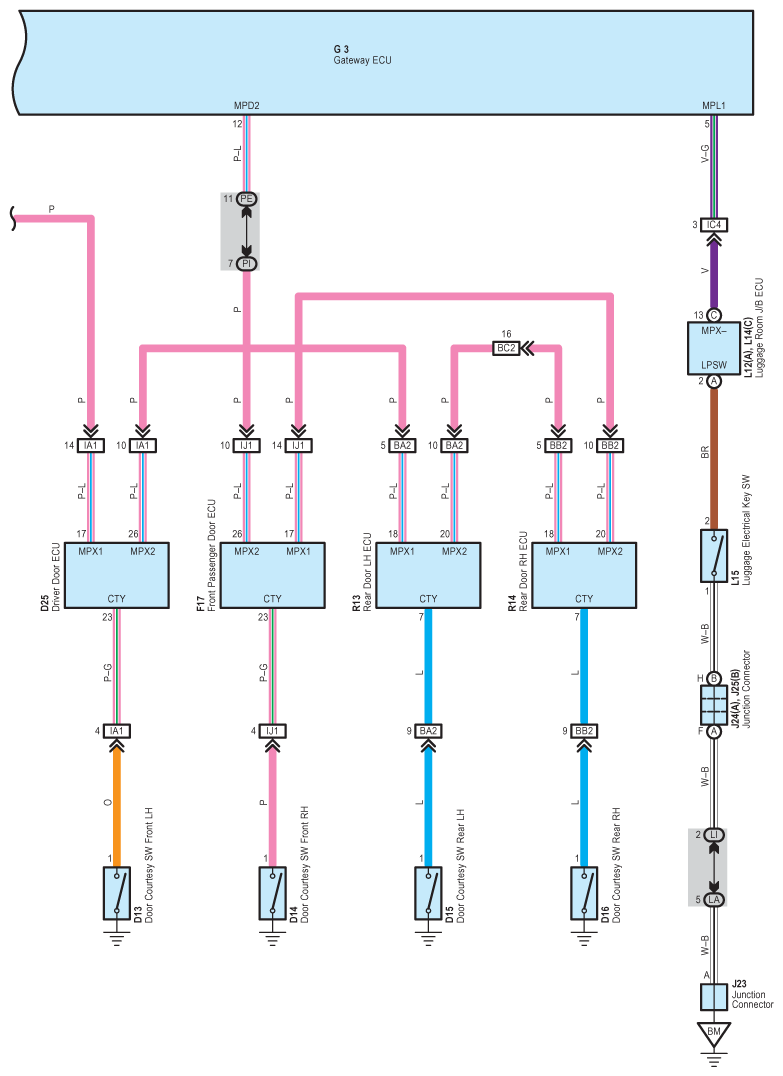

Fig 2: Engine Immobiliser System With Smart Key And Steering Lock System Wiring Diagram (2 Of 2)
G08913692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
