Headlight Cleaner: Notes

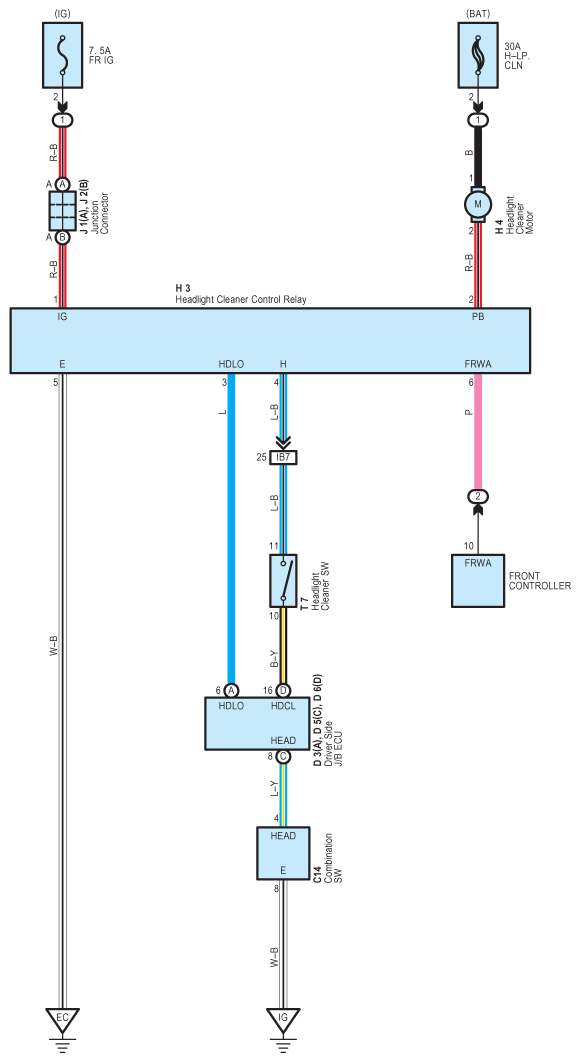

Fig 1: Headlight Cleaner System Wiring Diagram
G08913918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
