OEM System Circuits: PPS: Notes

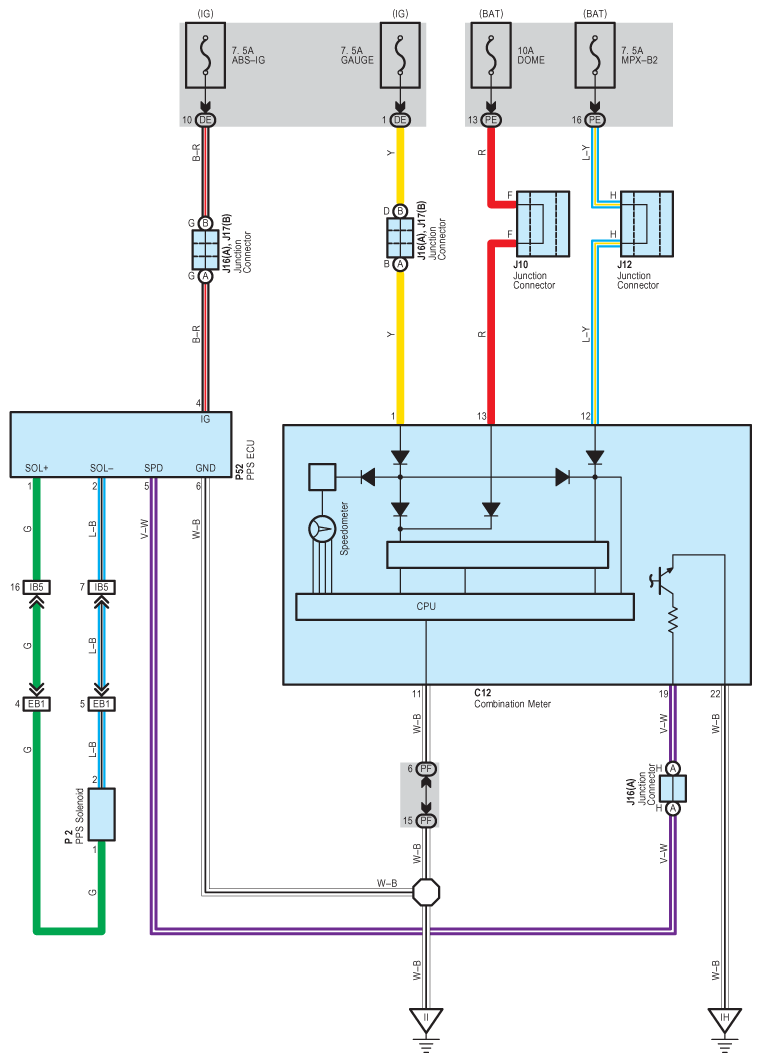

Fig 1: PPS System Wiring Diagram
G08913855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
