Power Seat for Front Passenger's Seat: Notes

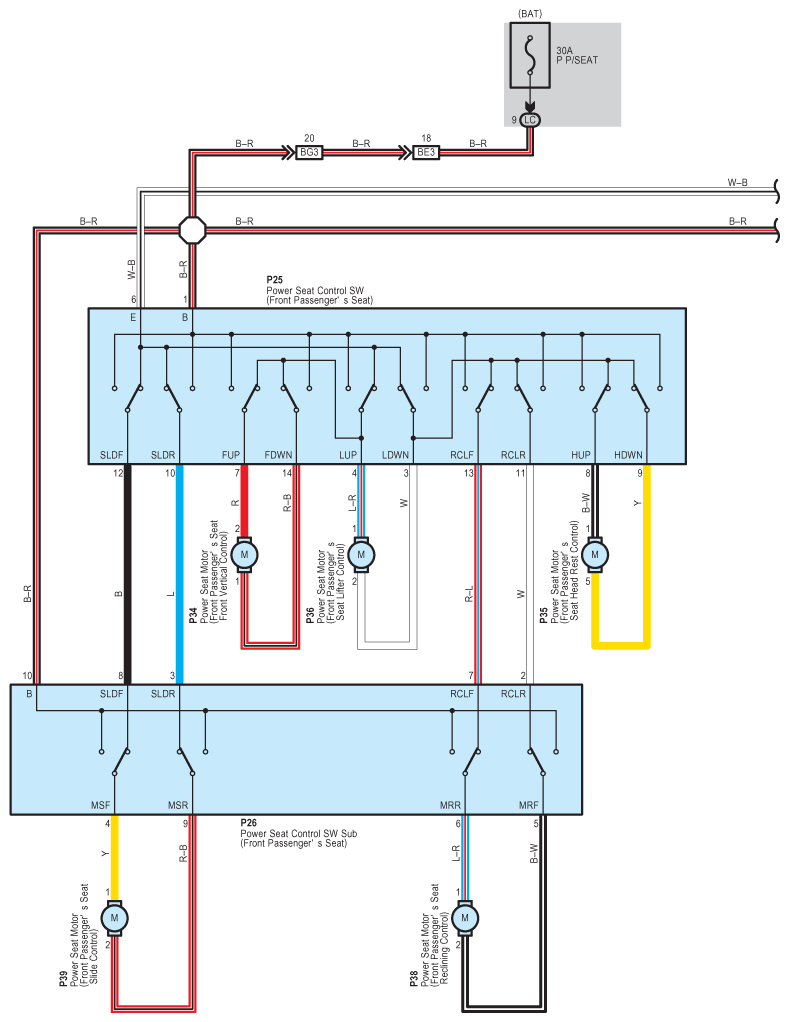

Fig 1: Power Seat For Front Passenger's Seat System Wiring Diagram (1 Of 2)
G08913894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

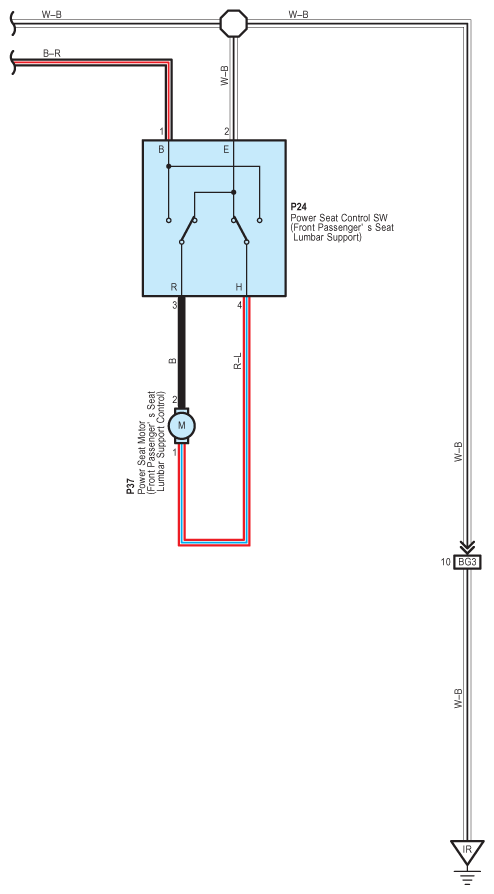

Fig 2: Power Seat For Front Passenger's Seat System Wiring Diagram (2 Of 2)
G08913895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
