Radiator Fan: Notes

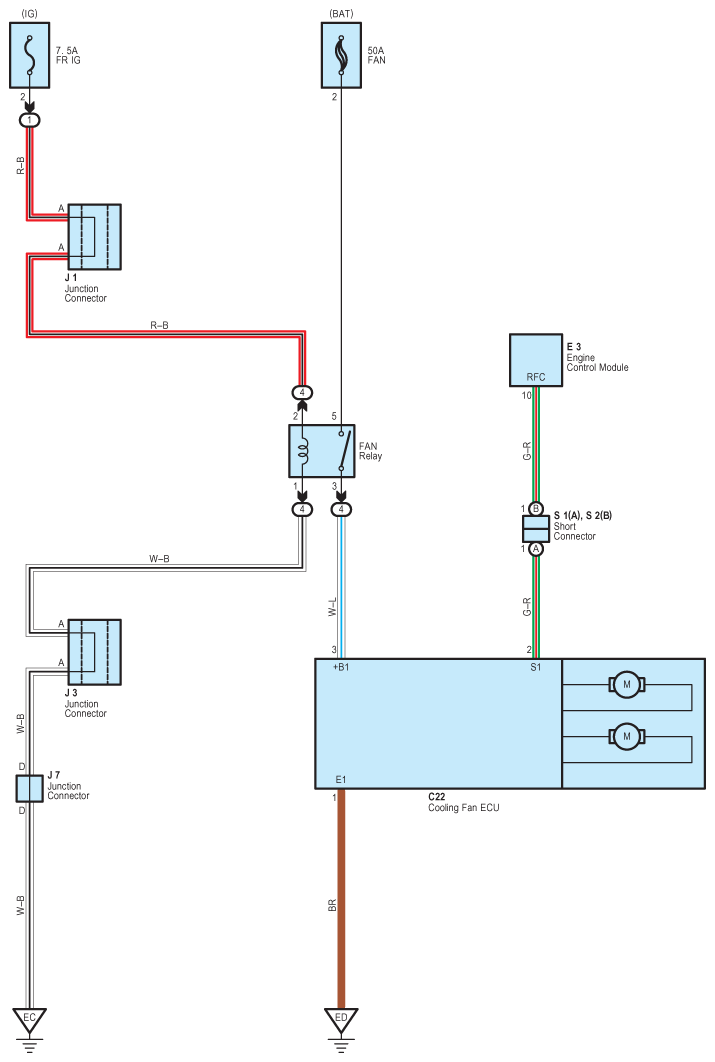

Fig 1: Radiator Fan System Wiring Diagram

G08913939

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
