Seat Heater (Front): Notes

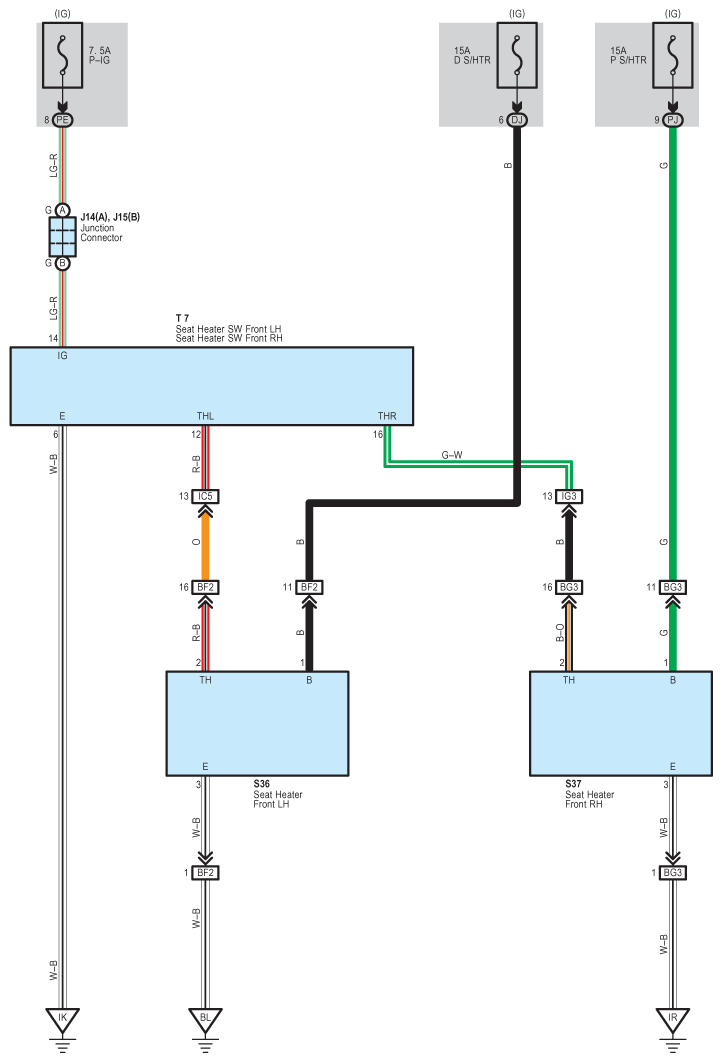

Fig 1: Seat Heater (Front) System Wiring Diagram

G08913908

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
