Lexus
›
2006
›
LS 430
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Seat Heater (Rear)
›
Notes
Seat Heater (Rear): Notes

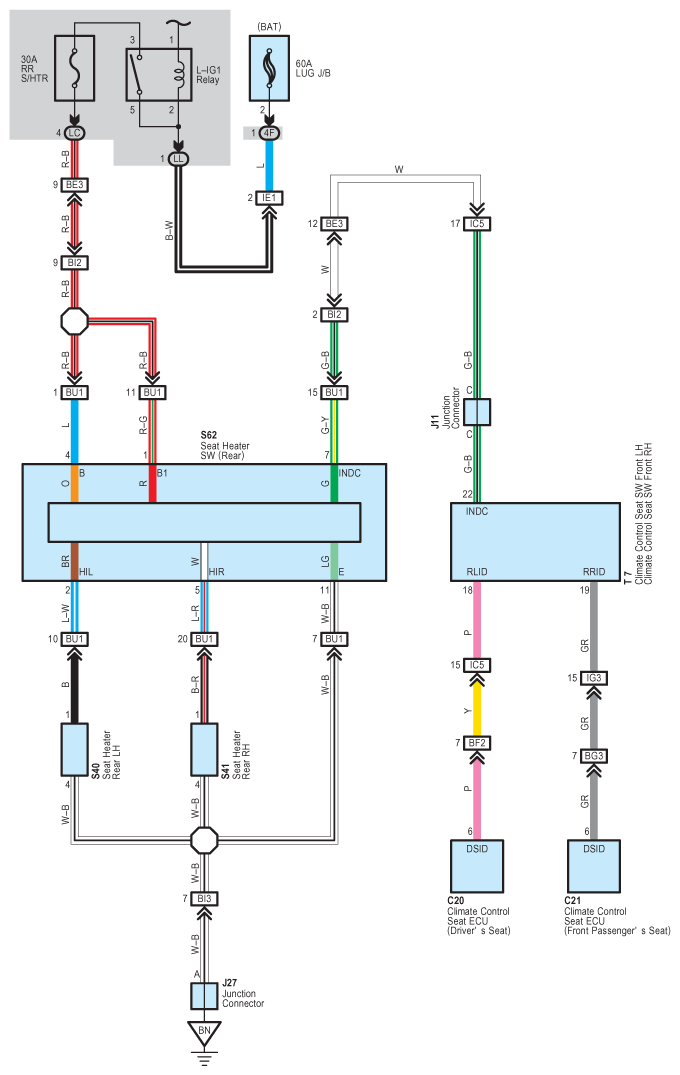

Fig 1: Seat Heater (Rear) System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
