Charcoal Canister ASSY: Components

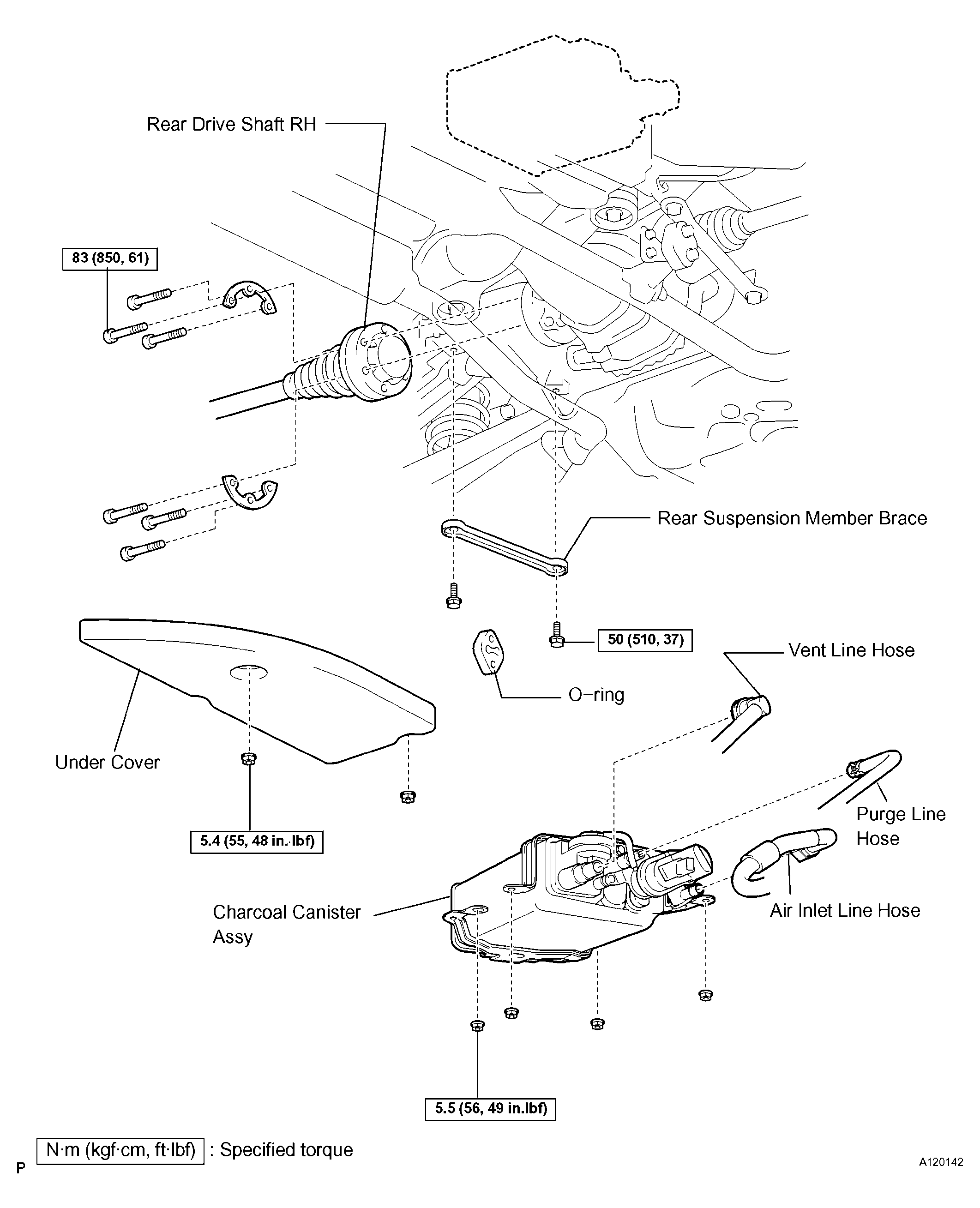

Fig 1: Identifying Components Charcoal Canister Assy
G04059799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
