System Diagram
System Diagram

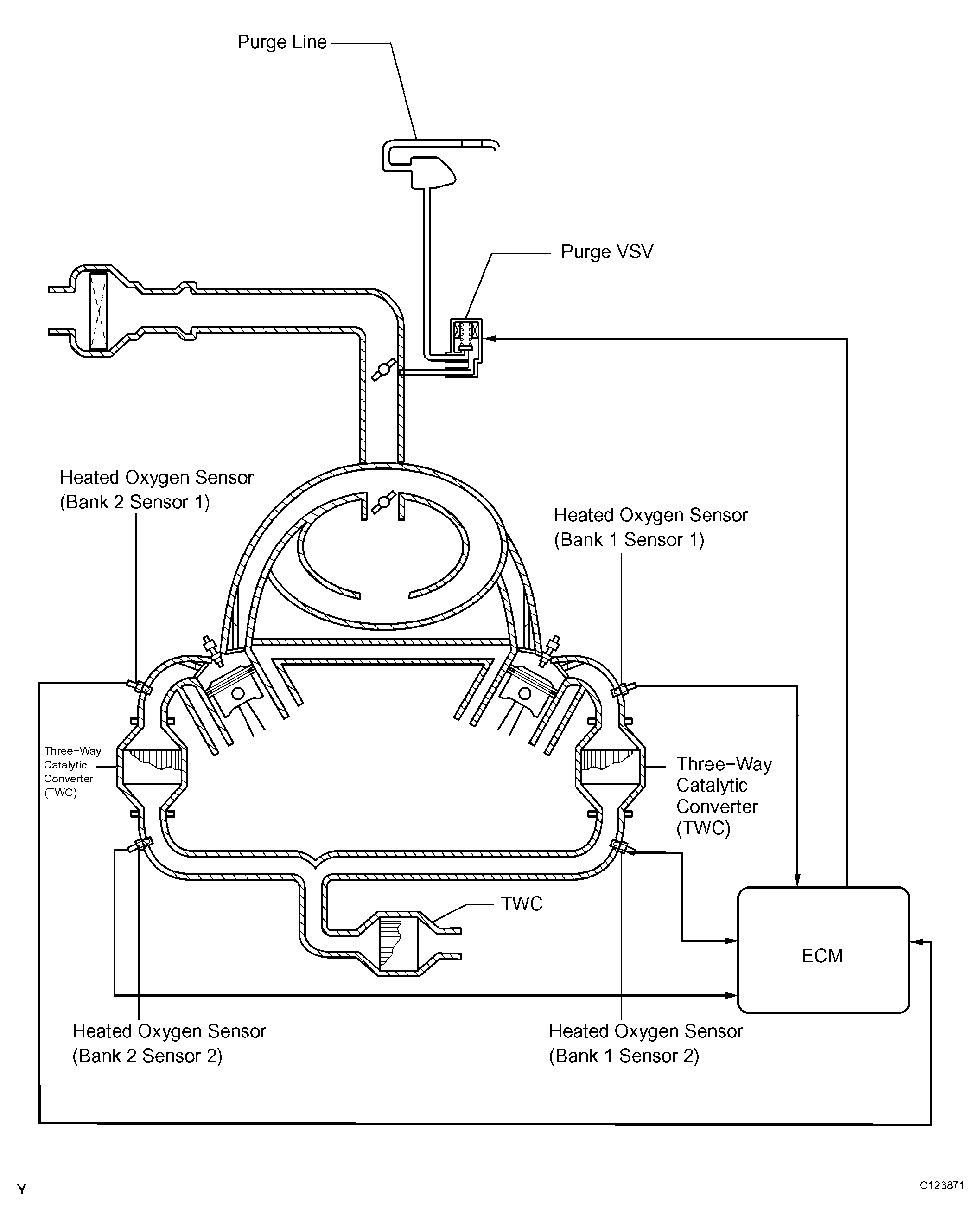

Fig 1: System Diagram Emission Control System (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

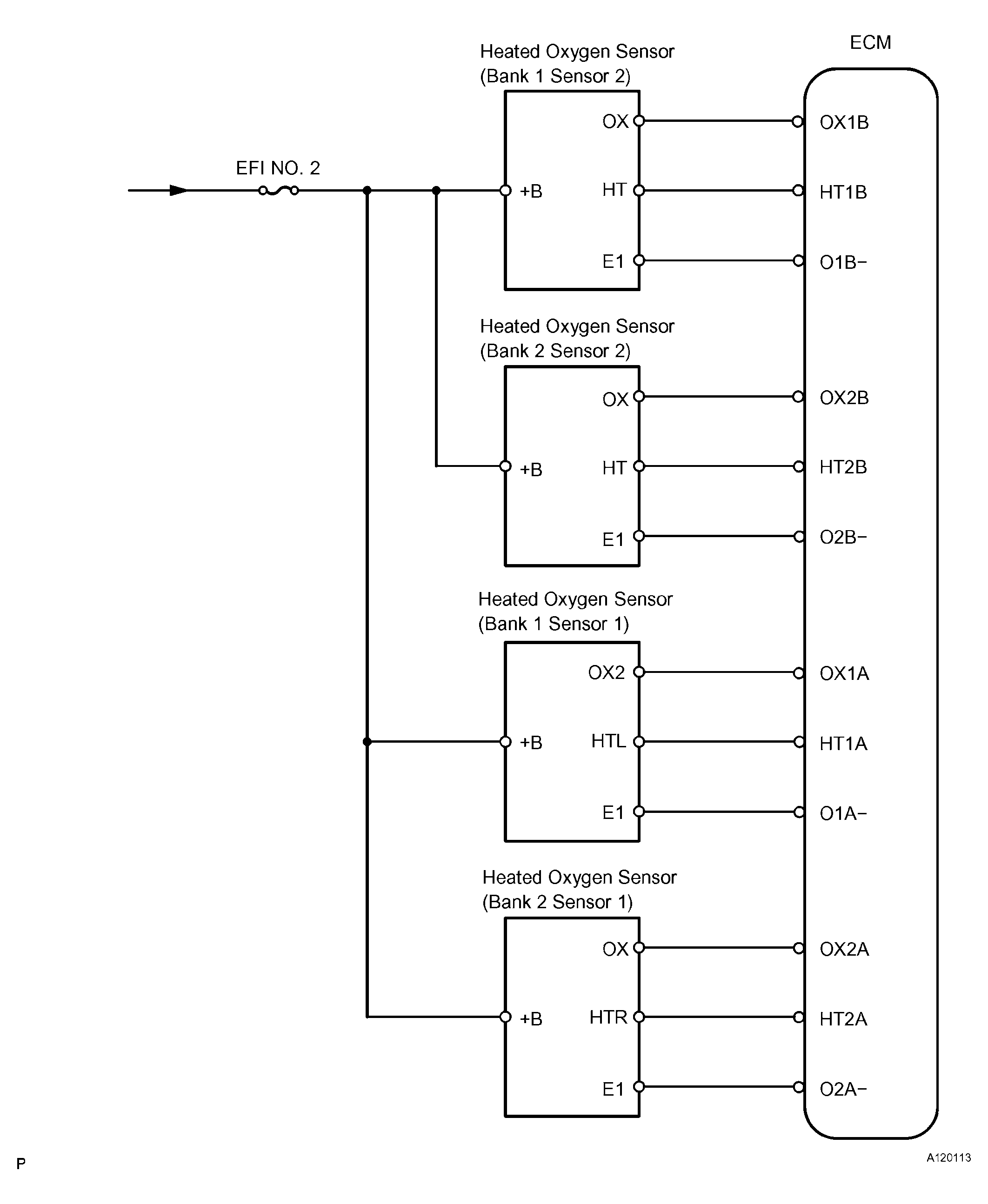

Fig 2: System Diagram Emission Control System (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

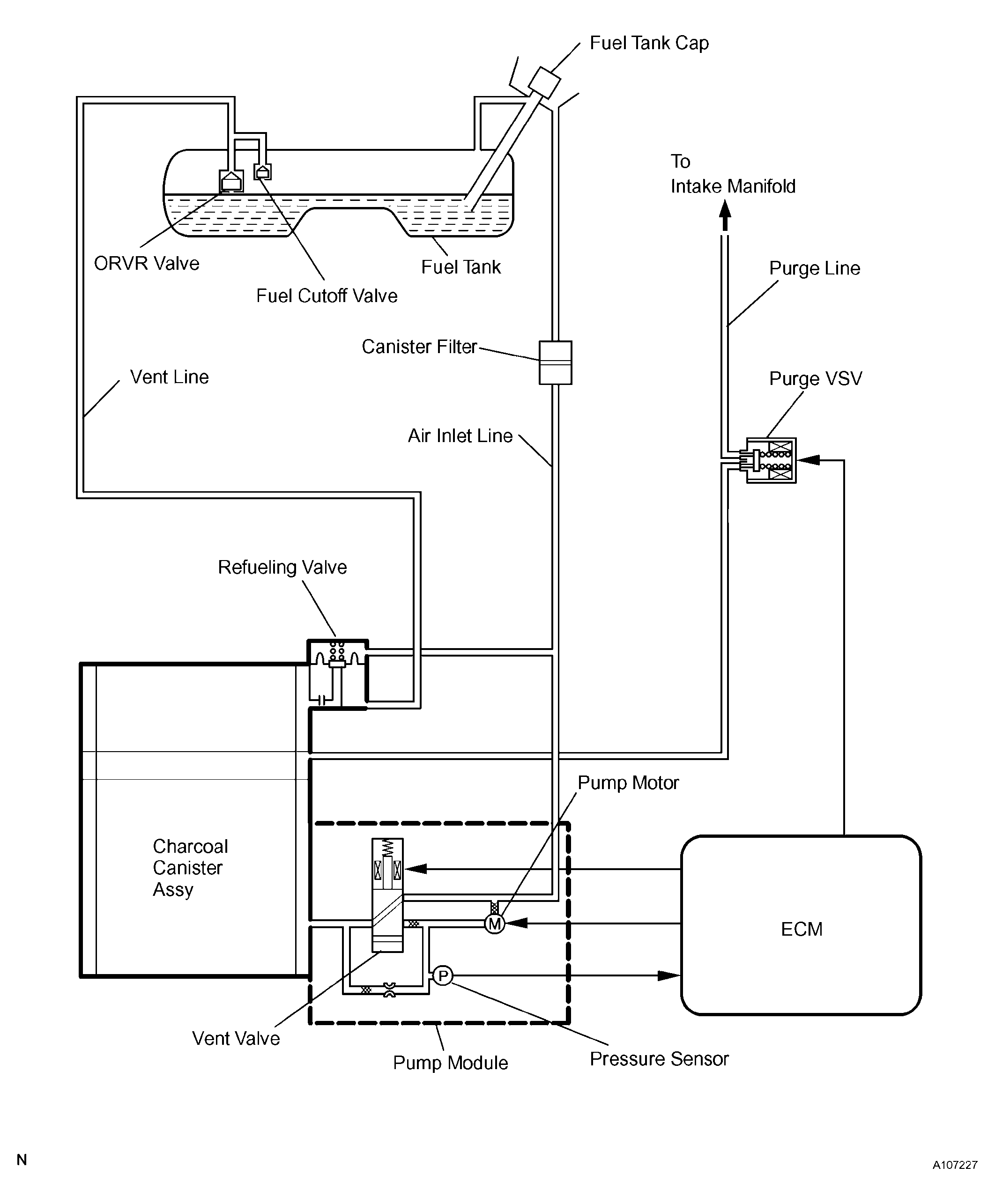

Fig 3: System Diagram Emission Control System (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

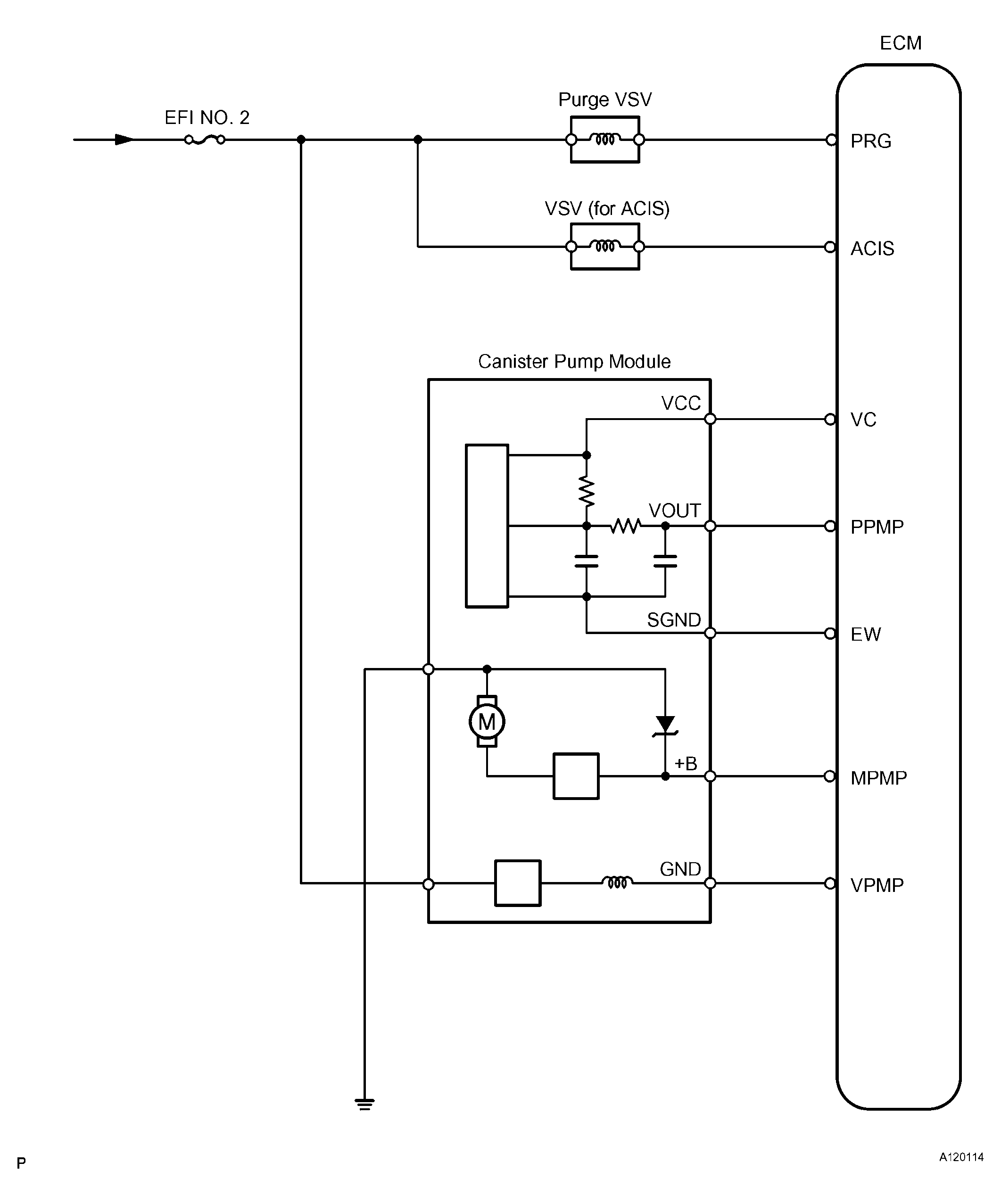

Fig 4: System Diagram Emission Control System (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
