Cooling System: Location

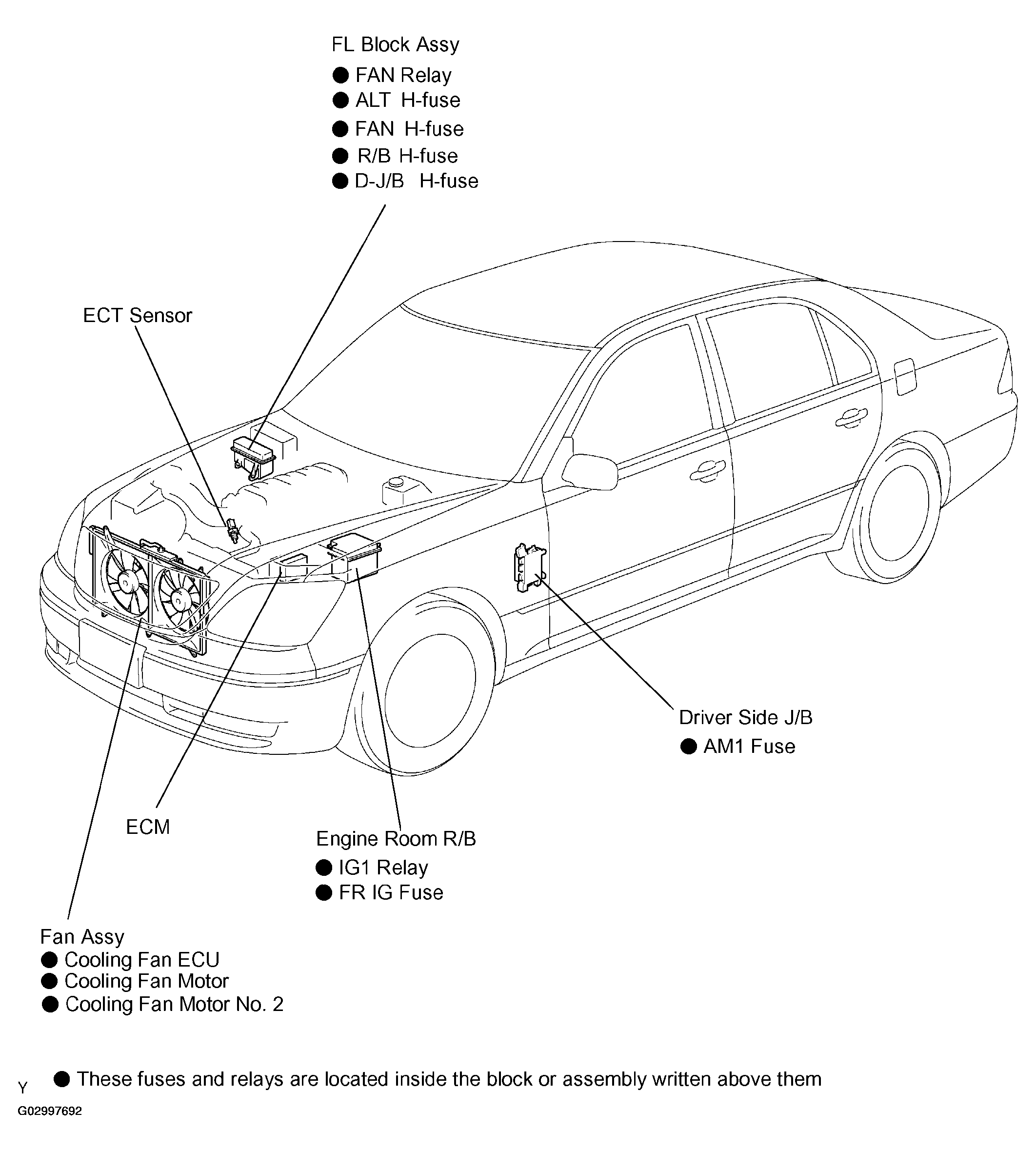

Fig 1: Identifying Cooling Fan System Component Location

G02997692

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
