Water Pump ASSY: Components

Fig 1: Identifying Water Pump Component Assy (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

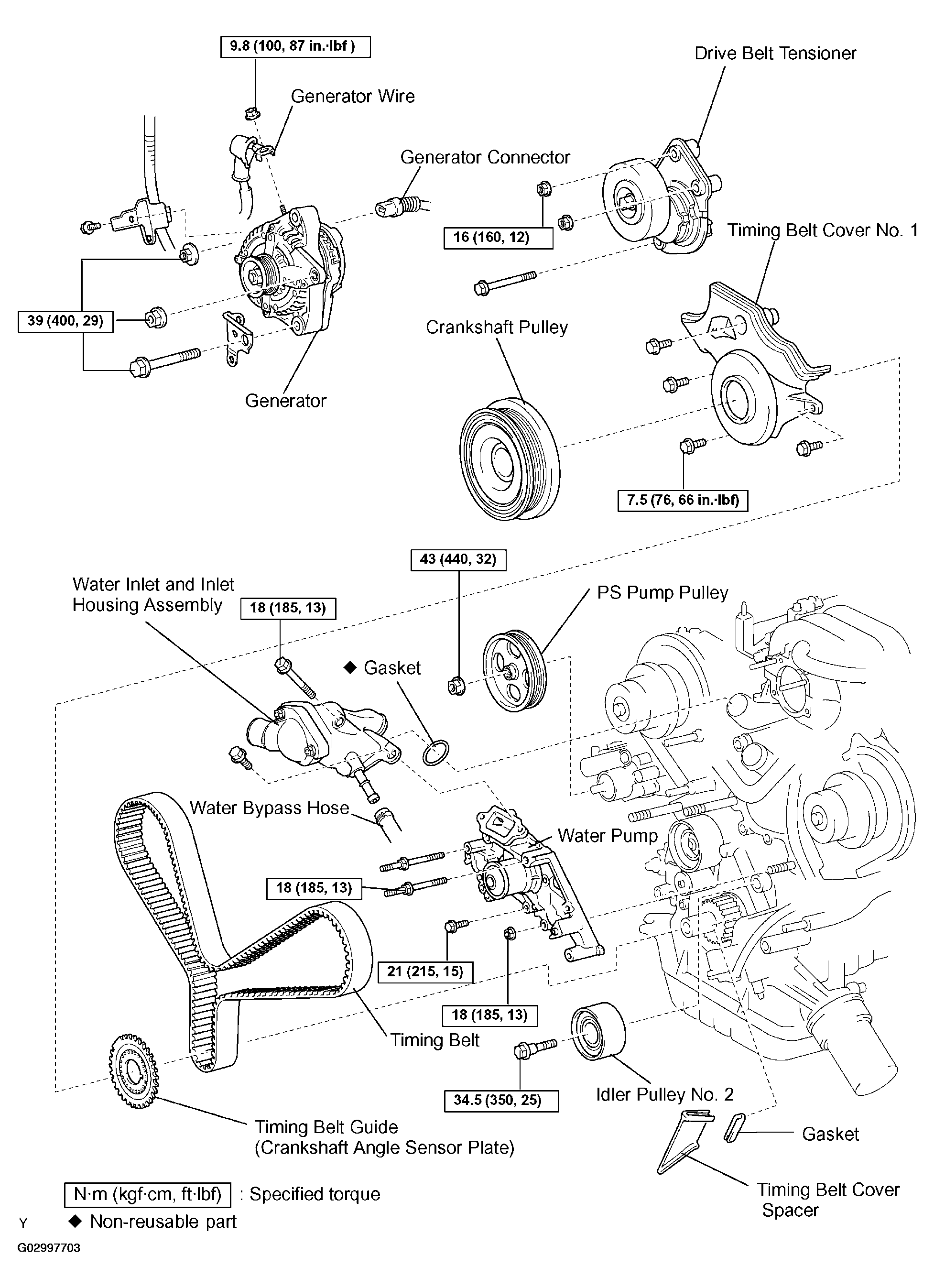

Fig 2: Identifying Water Pump Component Assy (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

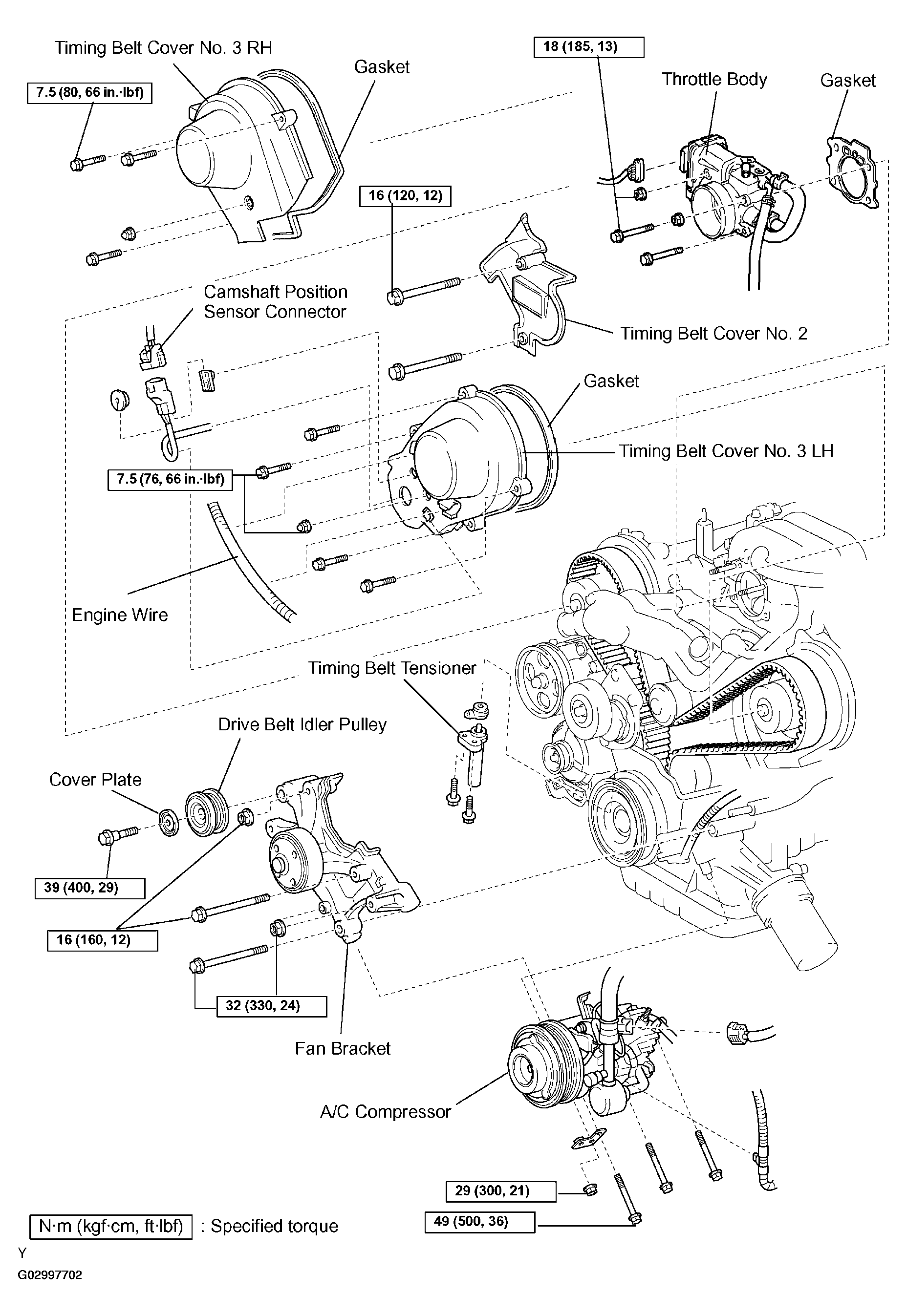

Fig 3: Identifying Water Pump Component Assy (3 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
