LS 430
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Control System
›
SFI System
›
System Diagram
System Diagram
Engine control system is determined by the ECM based on signals from various sensors.

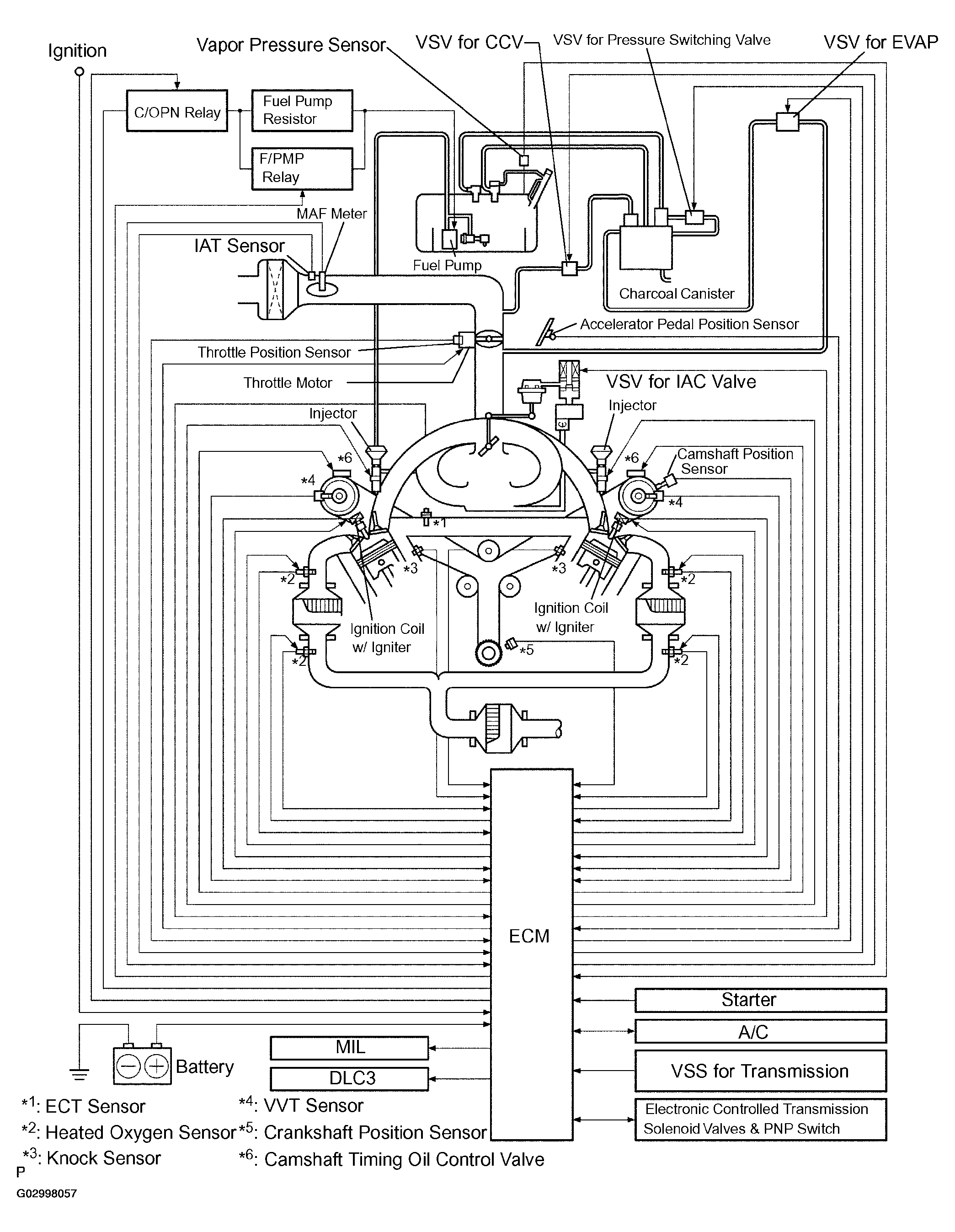

Fig 1: Engine Control - System Diagram
