Horn Button ASSY: Components

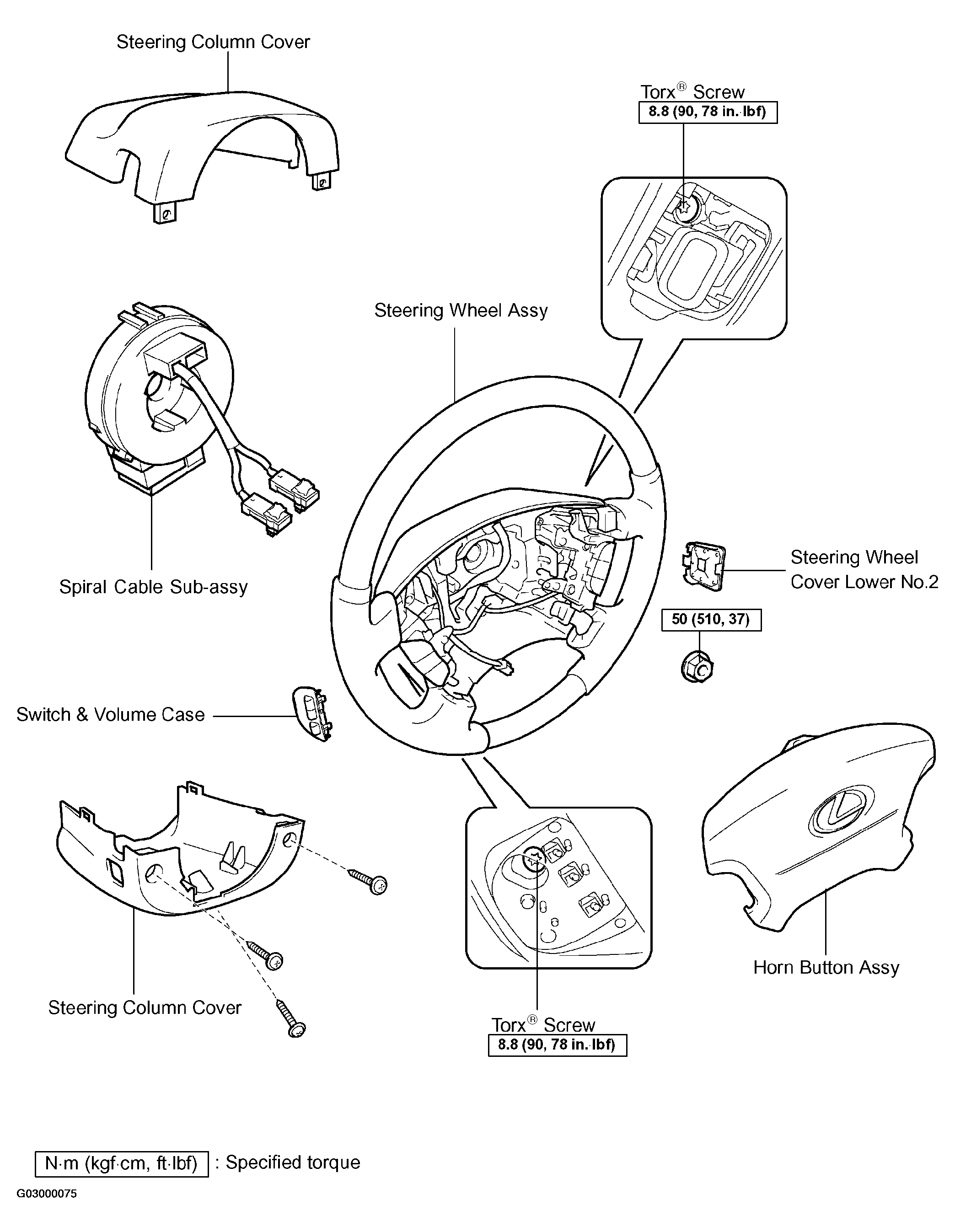

Fig 1: Identifying Horn Button Assy Components

G03000075

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
