Seat Belt Warning System - Diagnostics
›
Ecu Power Source Circuit
›
Wiring Diagram
Ecu Power Source Circuit: Wiring Diagram

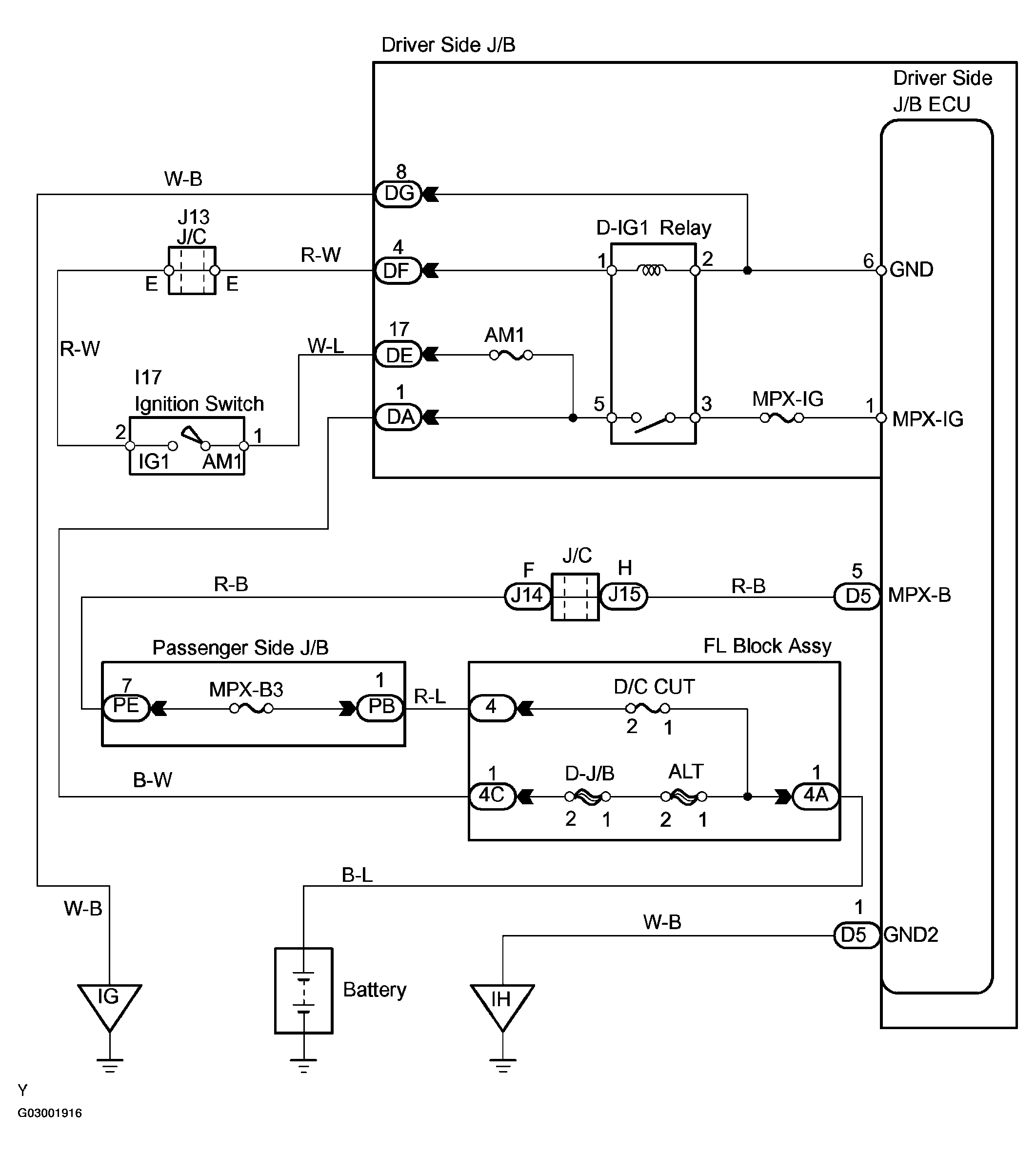

Fig 1: ECU Power Source Circuit - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
