Power Source Circuit: Wiring Diagram

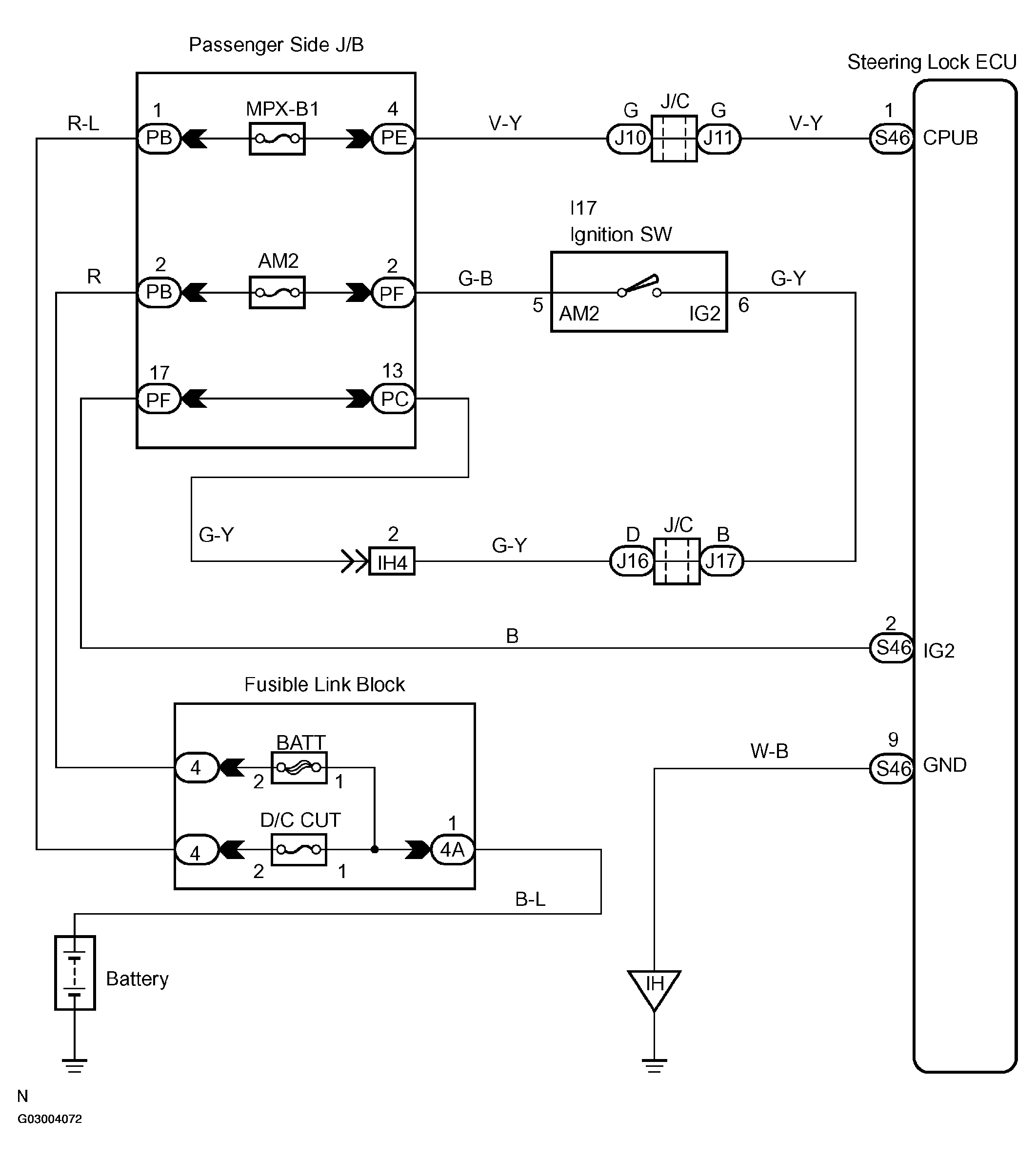

Fig 1: Power Source Circuit

G03004072

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
