Shift Lock Control Ecu Communication Circuit: Wiring Diagram

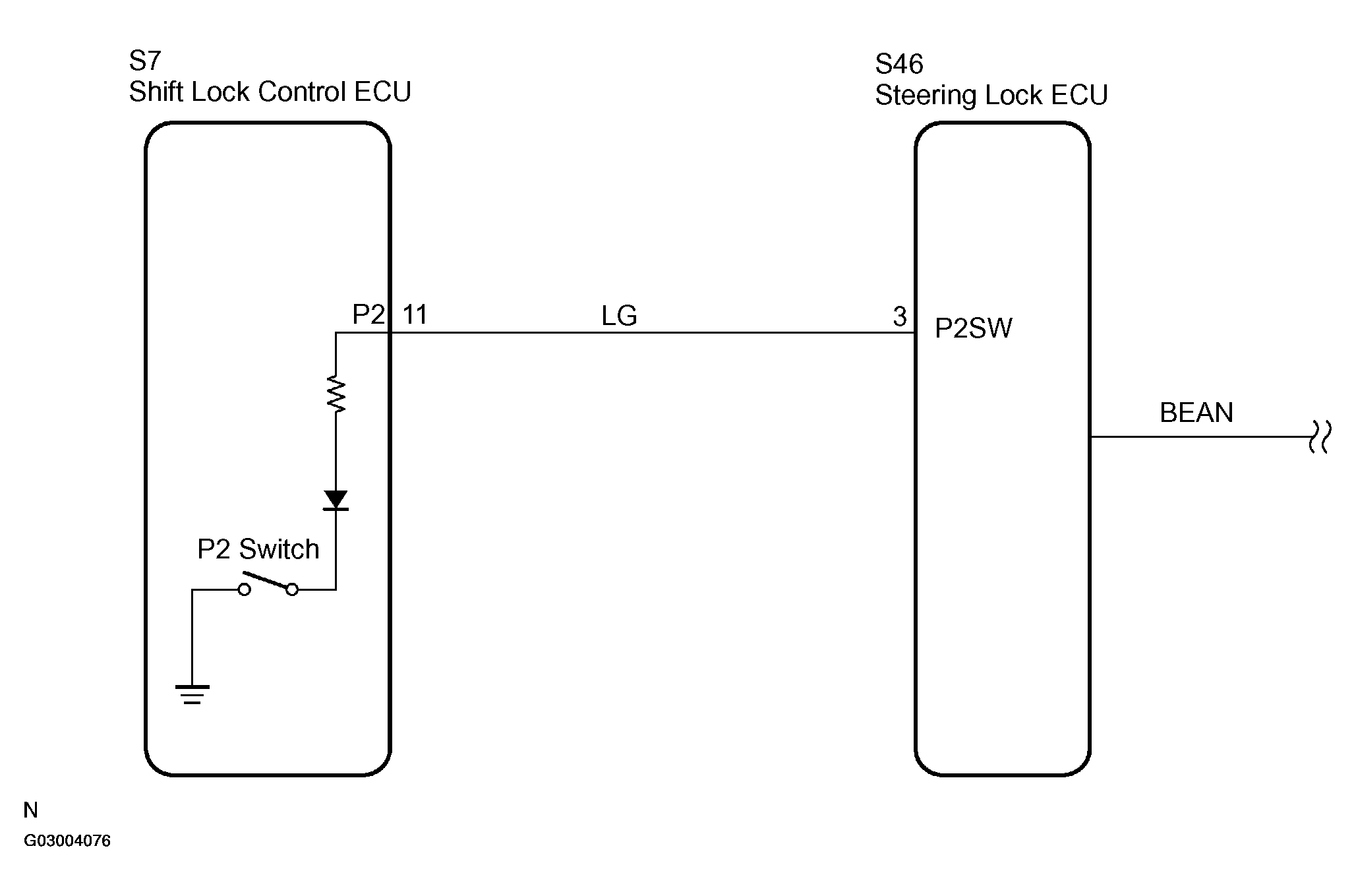

Fig 1: Shift Lock Control ECU Communication Circuit
G03004076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
