Floor Shift ASSY: Overhaul

  1. DISCONNECT BATTERY NEGATIVE TERMINAL
  2. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.2 (SEE  REPLACEMENT  )
  3. REMOVE CHOKE KNOB HOLE COVER (SEE  REPLACEMENT  )
  4. REMOVE GLOVE COMPARTMENT PLATE (SEE  REPLACEMENT  )
  5. REMOVE INSTRUMENT PANEL GARNISH SUB-ASSY LH (SEE  REPLACEMENT  )
  6. REMOVE INSTRUMENT PANEL FINISH PANEL (SEE  REPLACEMENT  )
  7. REMOVE INSTRUMENT CLUSTER FINISH PANEL (SEE  REPLACEMENT  )
  8. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (SEE  REPLACEMENT  )
  9. REMOVE PANEL INSTRUMENT CLUSTER FINISH LOWER (SEE  REPLACEMENT  )
  10. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.1 (SEE  REPLACEMENT  )
  11. REMOVE COIN BOX ASSY (SEE  REPLACEMENT  )
  12. REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER LOWER (SEE  REPLACEMENT  )
  13. REMOVE CIGAR LIGHTER HOLE BEZEL (SEE  REPLACEMENT  )
  14. REMOVE INSTRUMENTAL CLUSTER FINISH PANEL END (SEE  REPLACEMENT  )
  15. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY NO.1 (SEE  REPLACEMENT  )
  16. REMOVE REAR CONSOLE ARMREST ASSY (SEE  REPLACEMENT  )
  17. REMOVE CONSOLE BOX PLATE (SEE  REPLACEMENT  )
  18. REMOVE INSTRUMENT PANEL CUP HOLDER ASSY (SEE  REPLACEMENT  )
  19. REMOVE CONSOLE BOX (SEE  REPLACEMENT  )
  20. REMOVE CONSOLE BOX DUCT NO.1 (SEE  REPLACEMENT  )
  21. SEPARATE FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSY
    1. Remove the nut and separate the floor shift gear shifting rod sub-assy.
  22. REMOVE FLOOR SHIFT ASSY
    1. Disconnect the connector.
    2. Disconnect the indoor electrical key oscillator connector. (w/smart key)

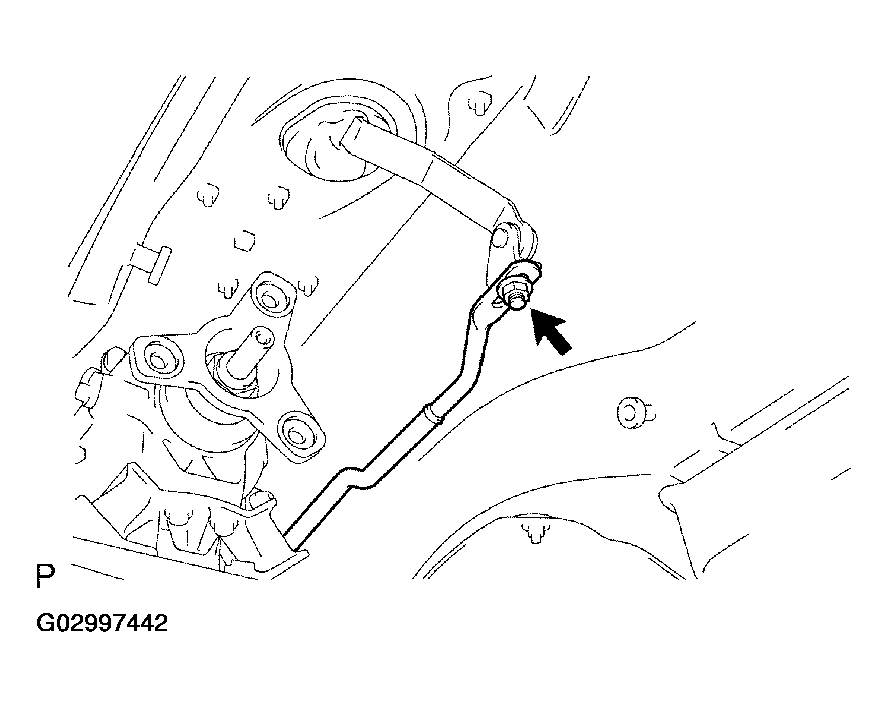

      Fig 1: Removing Nut And Separating Floor Shift Gear Shifting Rod Sub-Assy
      G02997442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 4 bolts.
    4. Remove the floor shift assy.

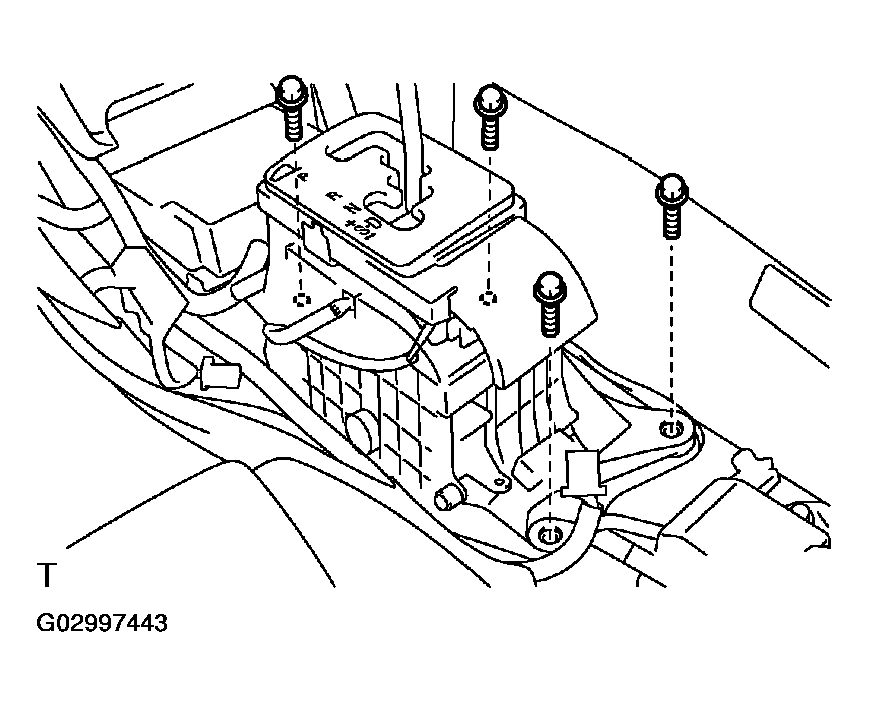

    Fig 2: Removing 4 Bolts
    G02997443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE INDOOR ELECTRICALLY KEY OSCILLATOR (W/SMART KEY)
    1. Remove the 2 screws, and then remove the indoor electrical key oscillator from the shift lever plate.
  24. REMOVE SHIFT LOCK RELEASE BUTTON COVER
    1. Using a small screwdriver, remove the shift lock release button cover.
  25. REMOVE SHIFT LEVER KNOB SUB-ASSY
    1. Remove the shift lever knob sub-assy.
    Fig 3: Removing Shift Lever Knob Sub-Assy
    G02997444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE POSITION INDICATOR HOUSING UPPER
    1. Disconnect the indicator lamp wire sub-assy from the shift lever plate.
    2. Using a screwdriver, remove the position indicator housing upper.
    Fig 4: Removing Position Indicator Housing Upper
    G02997445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE POSITION INDICATOR LENS
    1. Using a screwdriver, remove the position indicator lens from the position indicator housing upper.
    Fig 5: Removing Position Indicator Lens From Position Indicator Housing Upper
    G02997446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE INDICATOR LAMP WIRE SUB-ASSY
    1. Remove the indicator lamp wire sub-assy from the position indicator lens.
    2. Remove the position indicator bulb from the indicator lamp wire sub-assy.
    3. Remove the position indicator bulb cap from the position indicator bulb.
      Fig 6: Removing Indicator Lamp Wire Sub-Assy From Position Indicator Lens
      G02997447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the transmission control switch connector from the floor shift assy.

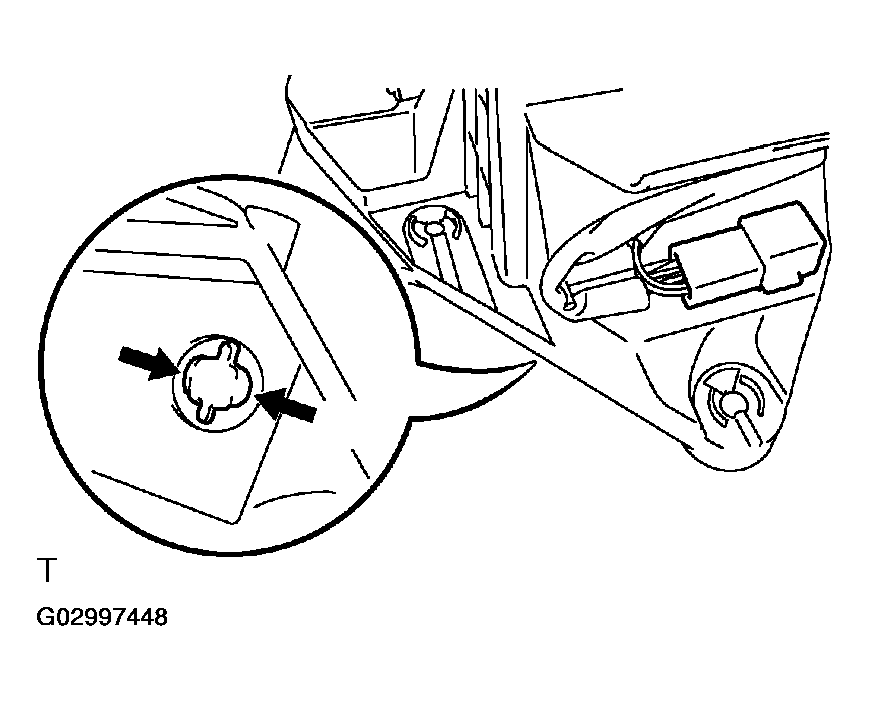

    Fig 7: Removing Transmission Control Switch Connector From Floor Shift Assy
    G02997448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. Using a small screwdriver, disengage the locking lug of terminals (4) and (8), and pull the terminals out from the rear.
    Fig 8: Disengaging Locking Lug Of Terminals (4) And (8)
    G02997449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE SHIFT LOCK RELEASE BUTTON
    1. Remove the shift lock release button and spring from the floor shift assy.

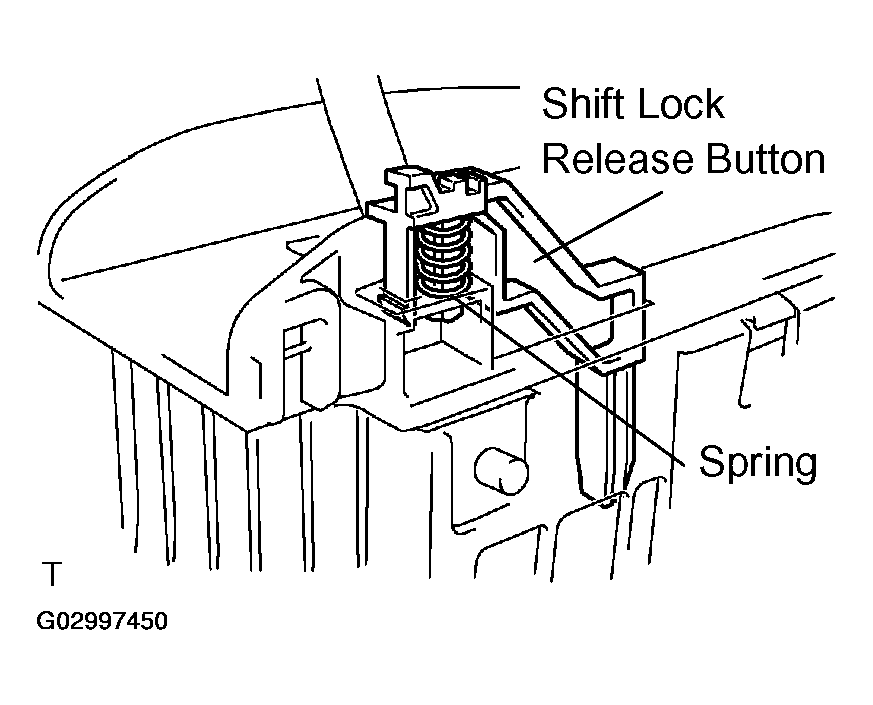

    Fig 9: Removing Shift Lock Release Button And Spring From Floor Shift Assy
    G02997450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE BEZEL CLIP
    1. Remove the 3 bezel clips from the position indicator housing upper.

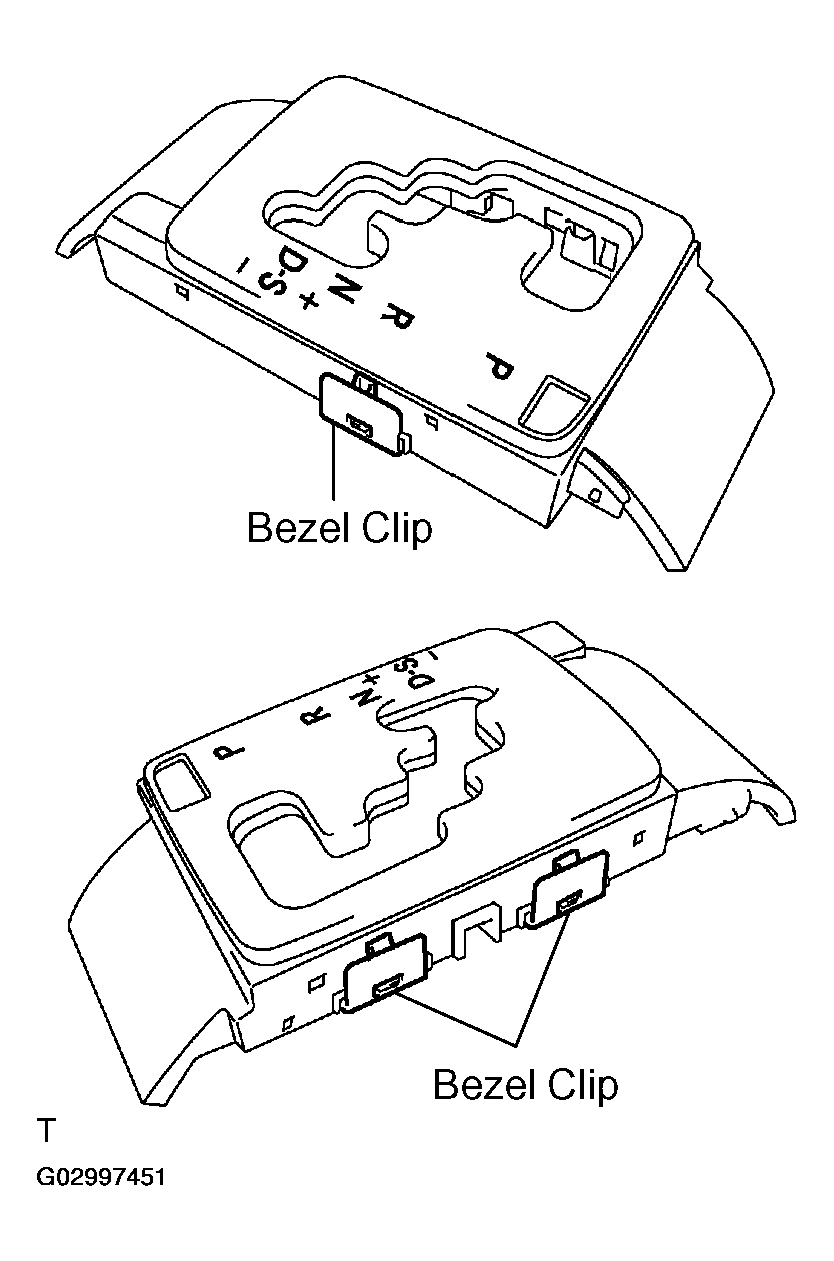

    Fig 10: Removing 3 Bezel Clips From Position Indicator Housing Upper
    G02997451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE POSITION INDICATOR SLIDE COVER
    1. Remove the position indicator slide cover from the shift lever guide housing.
    2. Remove the position indicator slide cover No.2 from the position indicator slide cover.
    Fig 11: Removing Position Indicator Slide Cover No.2 From Position Indicator Slide Cover
    G02997452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE SHIFT LOCK CONTROL ECU SUB-ASSY
    1. Remove the shift lever nut and lock pin from the floor shift assy.
    2. Remove the shift lever guide housing from the floor shift assy.
      NOTE: First remove the shift lever nut and lock pin, then disengage the 2 claws.
      Fig 12: Removing Shift Lever Nut And Lock Pin From Floor Shift Assy
      G02997453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 screws and shift lock control ECU sub-assy.
    Fig 13: Removing 2 Screws And Shift Lock Control ECU Sub-Assy
    G02997454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE POSITION INDICATOR HOUSING LOWER
    1. Remove the position indicator housing lower from the shift lever guide housing.

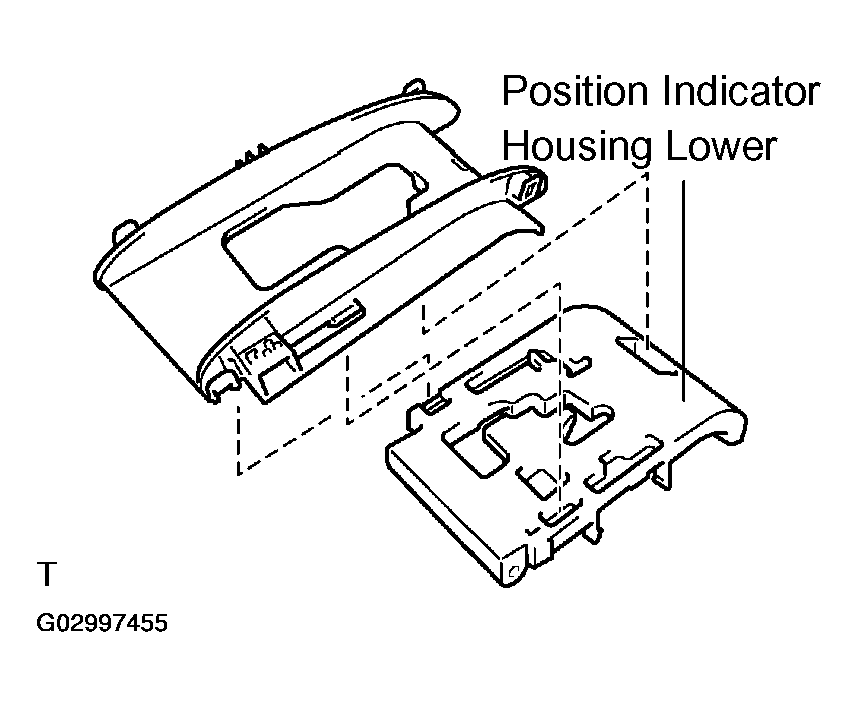

    Fig 14: Removing Position Indicator Housing Lower
    G02997455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE TRANSMISSION CONTROL SWITCH
    1. Remove the transmission control switch from the shift lever guide housing.

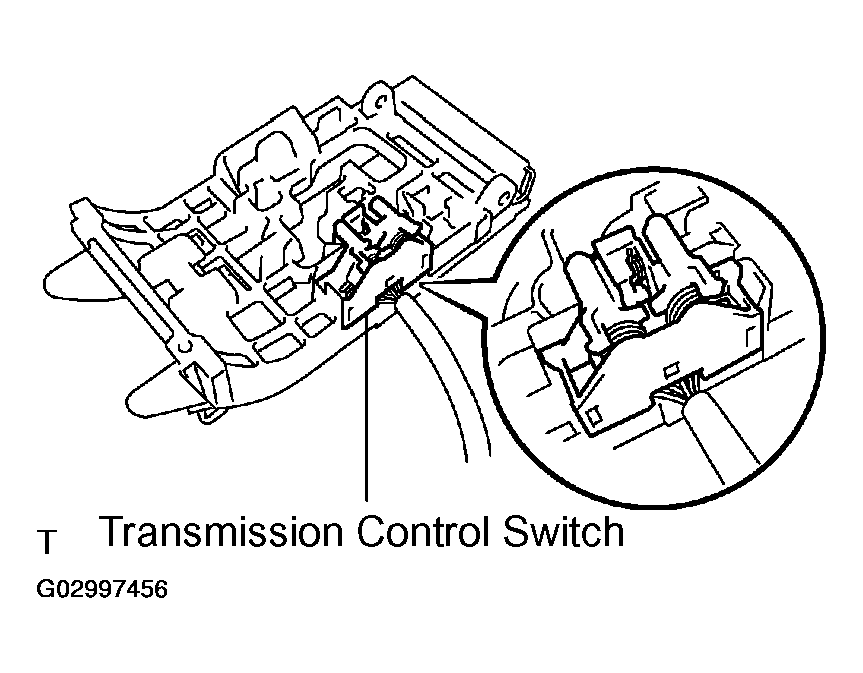

    Fig 15: Removing Transmission Control Switch From Shift Lever Guide Housing
    G02997456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. INSTALL TRANSMISSION CONTROL SWITCH
    1. Install the transmission control switch to the shift lever guide housing.

    HINT:

    Securely engage the claws.

    Fig 16: Installing Transmission Control Switch To Shift Lever Guide Housing
    G02997457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. INSTALL POSITION INDICATOR HOUSING LOWER
    1. Install the position indicator housing lower to the shift lever guide housing.

    HINT:

    Securely engage the claws.

    Fig 17: Installing Position Indicator Housing Lower To Shift Lever Guide Housing
    G02997458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. INSTALL SHIFT LOCK CONTROL ECU SUB-ASSY
    1. Apply MP grease to the hatched area of the shift lever guide housing as indicated in the illustration.

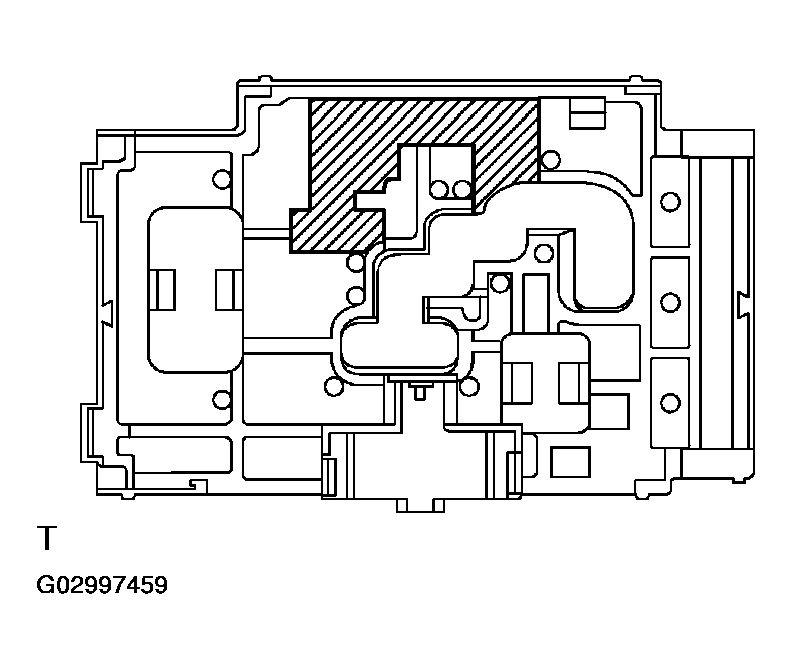

      Fig 18: Applying MP Grease To Hatched Area Of Shift Lever Guide Housing
      G02997459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the shift lock control ECU sub-assy with the 2 screws.

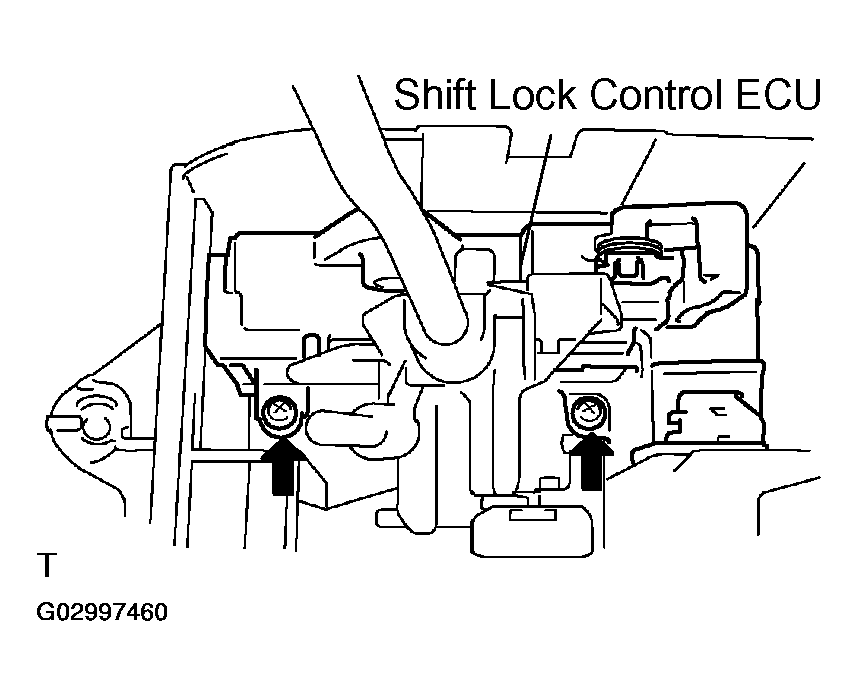

      Fig 19: Installing Shift Lock Control ECU Sub-Assy With 2 Screws
      G02997460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the shift lever guide housing with the shift lever lock pin and a new shift lever nut.
    NOTE:
    • Install the shift lever nut and lock pin after first engaging the 2 claws.
    • Securely engage the claws.

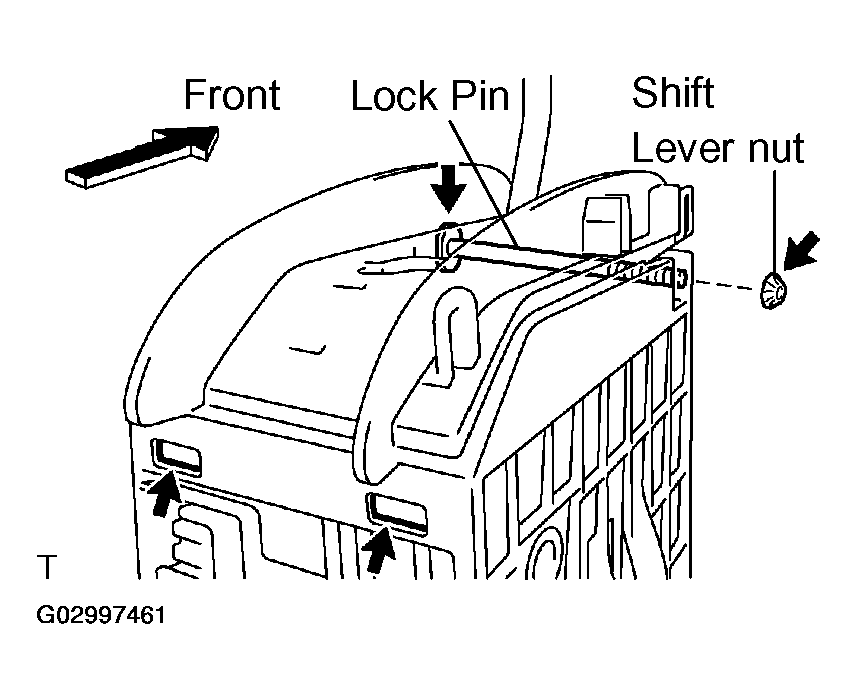

    Fig 20: Installing Shift Lever Nut And Lock Pin After First Engaging 2 Claws
    G02997461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. INSTALL POSITION INDICATOR SLIDE COVER
    1. Install position indicator slide cover No.2 to the position indicator slide cover.
    2. Install the position indicator slide cover to the shift lever guide housing.

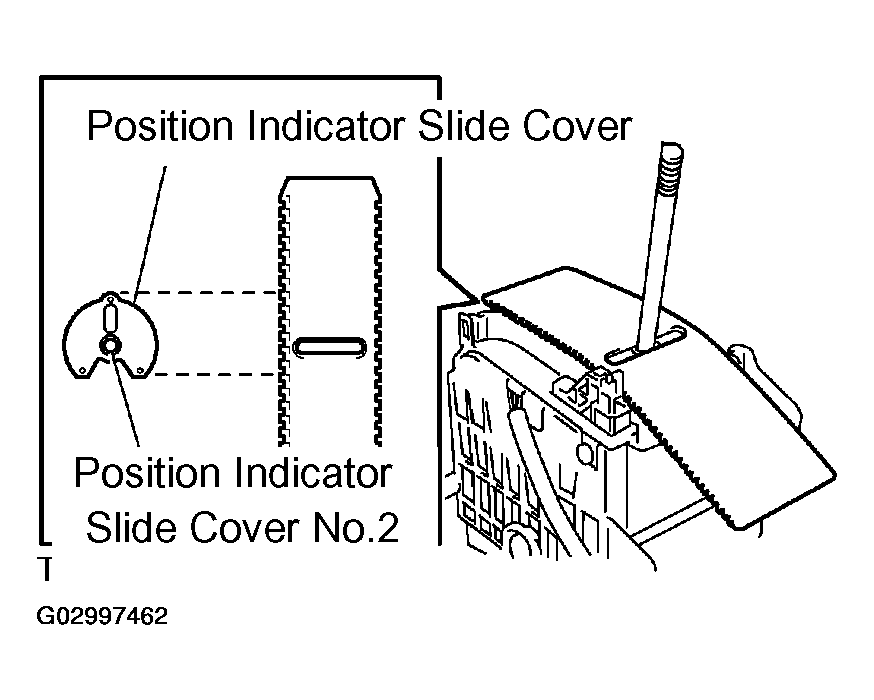

    Fig 21: Installing Position Indicator Slide Cover No.2 To Position Indicator Slide Cover
    G02997462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. INSTALL BEZEL CLIP
    1. Install new 3 bezel clips to the position indicator housing upper.

    HINT:

    Securely engage the claws.

    Fig 22: Installing 3 bezel clips to position indicator housing upper
    G02997463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. INSTALL SHIFT LOCK RELEASE BUTTON
    1. Install the shift lock release button and spring to the floor shift assy.

    HINT:

    Securely engage the claws.

    Fig 23: Installing Shift Lock Release Button And Spring To Floor Shift Assy
    G02997464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. INSTALL INDICATOR LAMP WIRE SUB-ASSY
    1. Securely connect the 2 terminals of the indicator lamp wire harness to the transmission control switch connector.
    2. Install the position indicator lamp bulb to the indicator lamp wire sub-assy.
    3. Install the position indicator bulb cap to the position indicator lamp bulb.
      Fig 24: Connecting 2 Terminals Of Indicator Lamp Wire Harness
      G02997465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the indicator lamp wire to the position indicator lens.
    NOTE: Make sure that the indicator lamp wire is securely installed to the position indicator lens.
    Fig 25: Installing Indicator Lamp Wire To Position Indicator Lens
    G02997466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. Connect the indicator lamp wire connector to the floor shift assy.
    Fig 26: Connecting Indicator Lamp Wire Connector To Floor Shift Assy
    G02997467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. INSTALL POSITION INDICATOR LENS
    1. Install the position indicator lens to the position indicator housing upper.

    HINT:

    Securely engage the claws.

    Fig 27: Installing Position Indicator Lens To Position Indicator Housing Upper
    G02997468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. INSTALL POSITION INDICATOR HOUSING UPPER
    1. Install the position indicator housing upper to the shift lever guide housing.

    HINT:

    Securely engage the claws.

    Fig 28: Installing Position Indicator Housing Upper To Shift Lever Guide Housing
    G02997469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. INSTALL SHIFT LOCK RELEASE BUTTON COVER
    1. Install the shift lock release button cover to the position indicator housing upper.
  47. INSTALL SHIFT LEVER KNOB SUB-ASSY
    1. Install the shift lever knob sub-assy to the floor shift lever assy.
    Fig 29: Installing Shift Lever Knob Sub-Assy To Floor Shift Lever Assy
    G02997470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. INSTALL INDOOR ELECTRICAL KEY OSCILLATOR (W/ SMART KEY)
    1. Install the indoor electrical key oscillator to the shift lever plate with the 2 screws.
    NOTE: Securely engage the claws.
  49. INSTALL FLOOR SHIFT ASSY
    1. Install the floor shift assy with the 4 bolts.
      1. Torque: 8.3 N.m (85 kgf.cm, 74 in.lbf)
    2. Connect the connector to the floor shift assy.

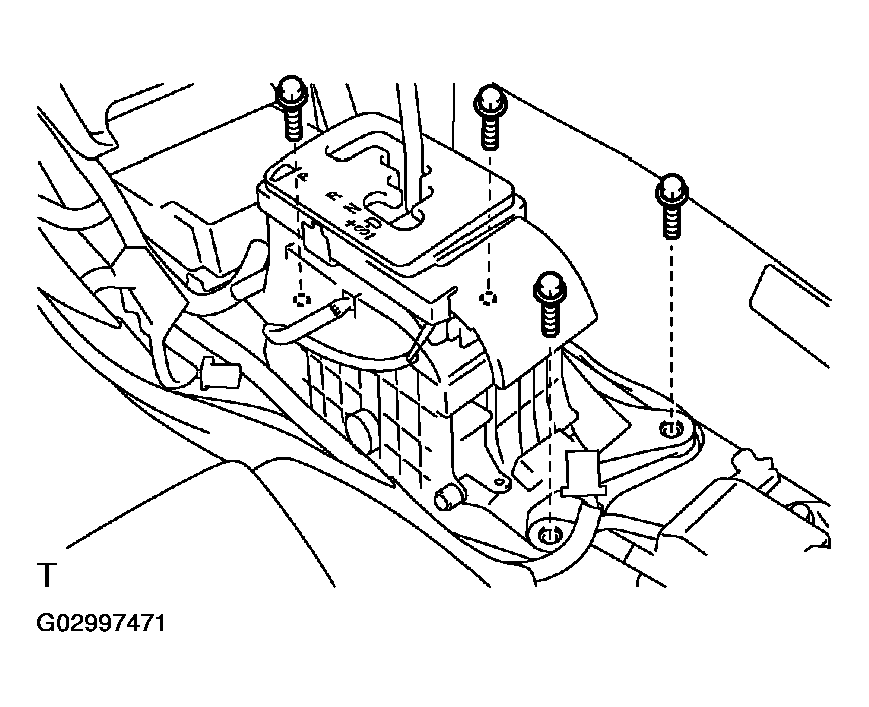

    Fig 30: Installing Floor Shift Assy With 4 Bolts
    G02997471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  50. INSTALL FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSY
    1. Install the floor shift gear shifting rod sub-assy with the nut.
    1. Torque: 13 N.m (130 kgf.cm, 9 ft.lbf)

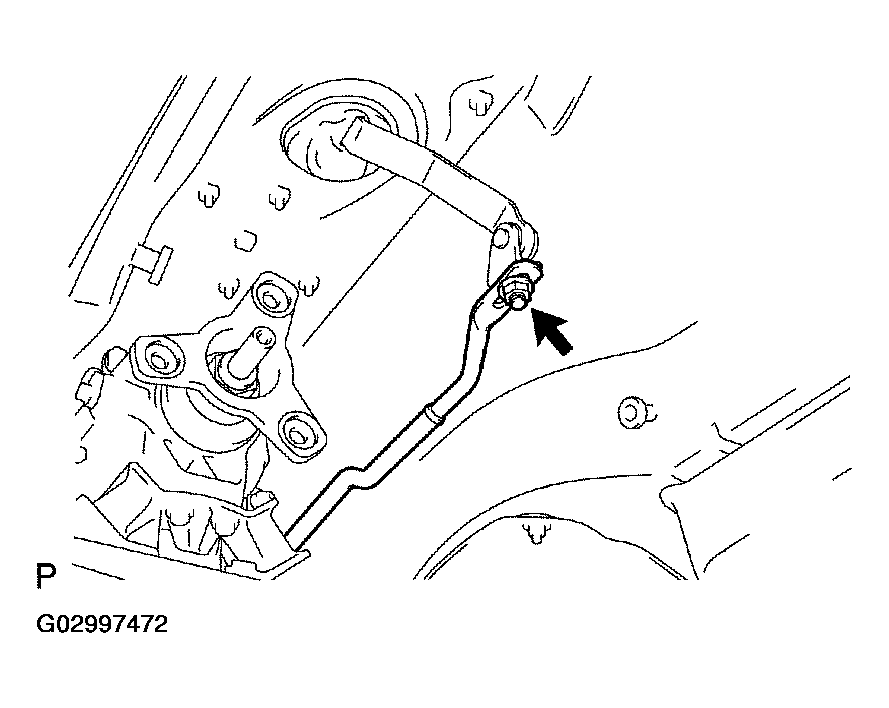

    Fig 31: Installing Floor Shift Gear Shifting Rod Sub-Assy With Nut
    G02997472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  51. CONNECT BATTERY NEGATIVE TERMINAL
  52. ADJUST SHIFT LEVER POSITION (SEE  ADJUSTMENT   )
  53. INSPECT SHIFT LEVER POSITION (SEE  ADJUSTMENT   )
  54. PERFORM INITIALIZATION (SEE  INITIALIZATION  )
