Parts Location

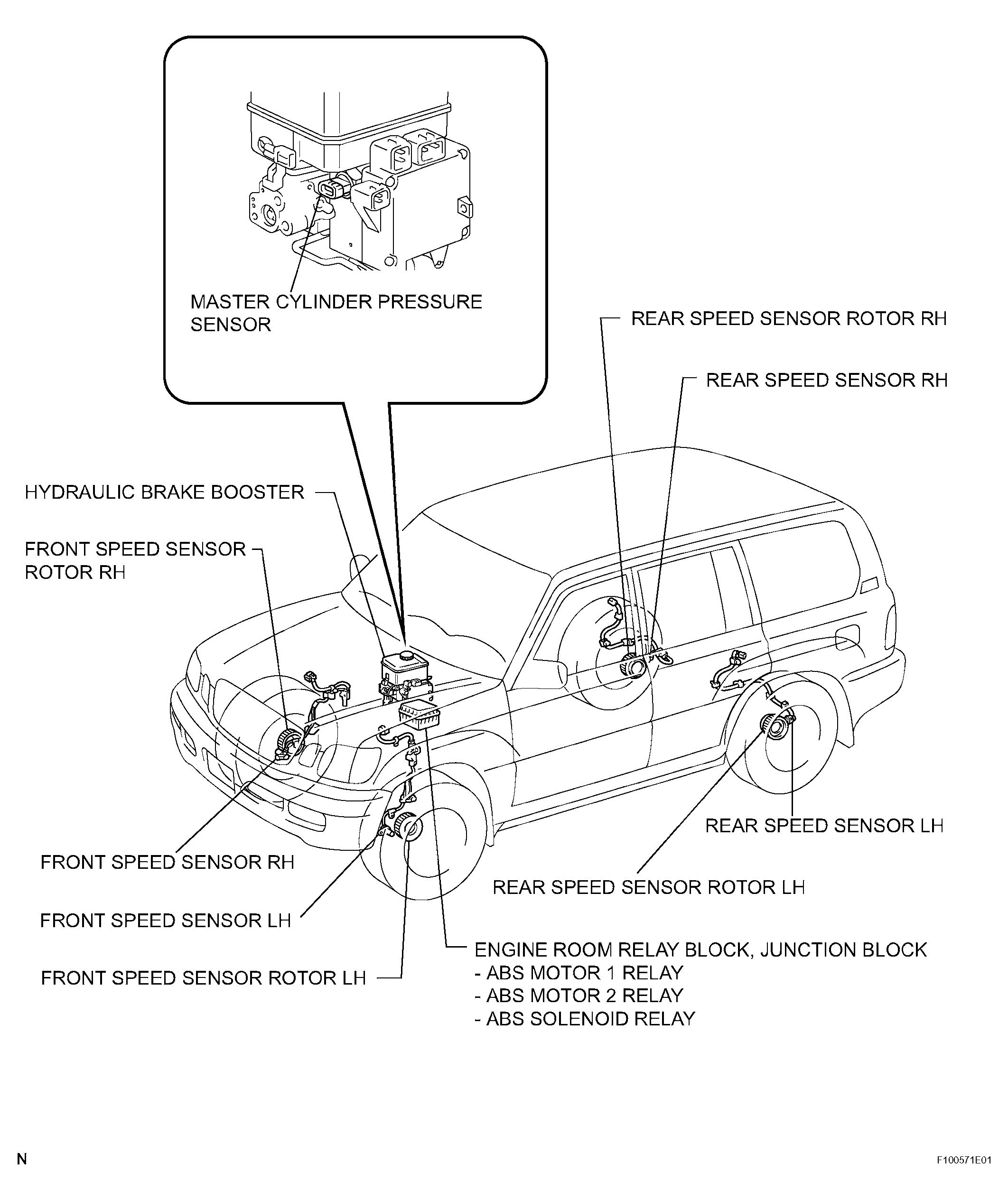

Fig 1: Identifying Brake Control Parts Location (1 Of 2)
G04063819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

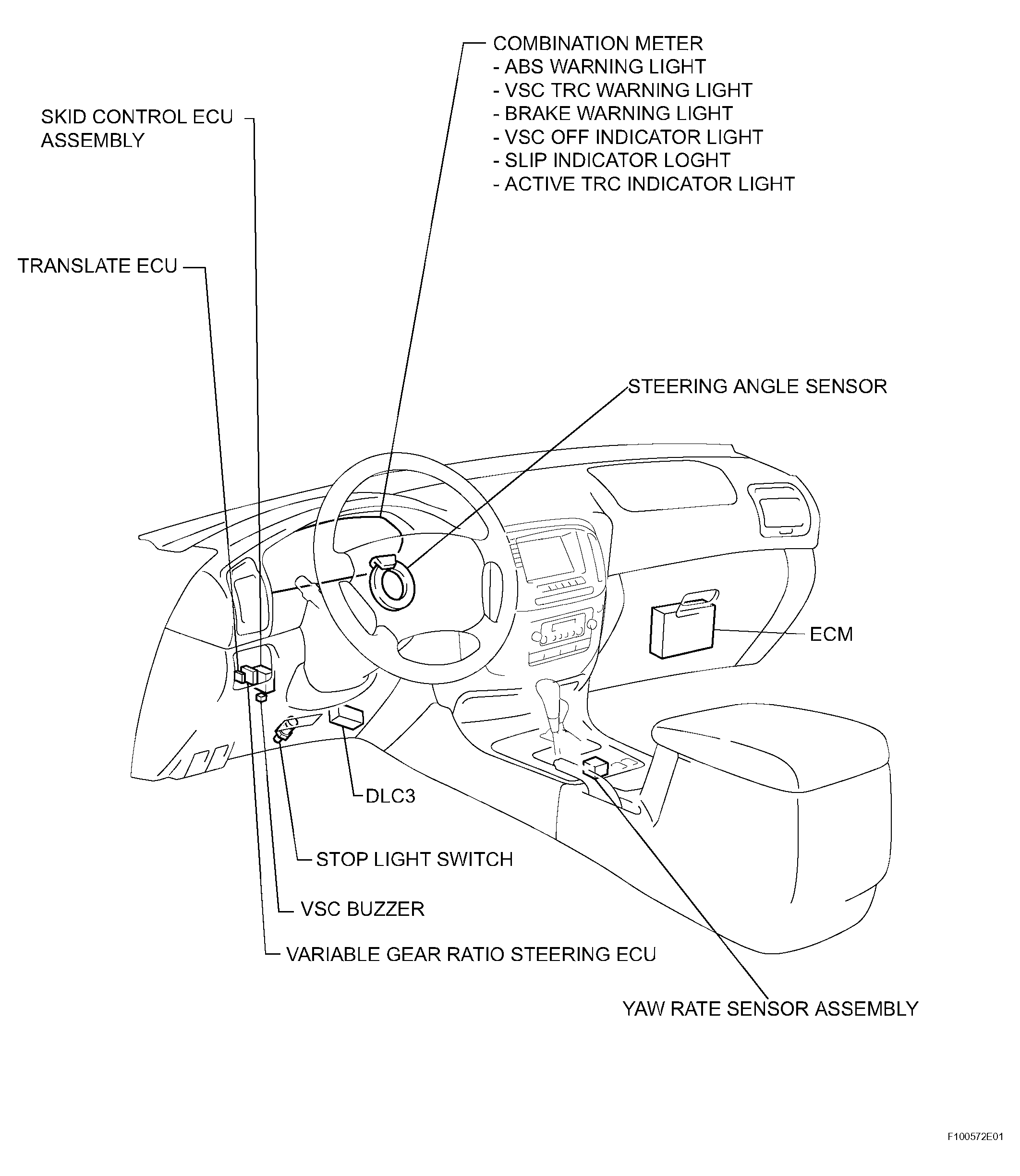

Fig 2: Identifying Brake Control Parts Location (2 Of 2)
G04063820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
