Terminals Of Ecu

  1. CHECK BODY ECU (MAIN)

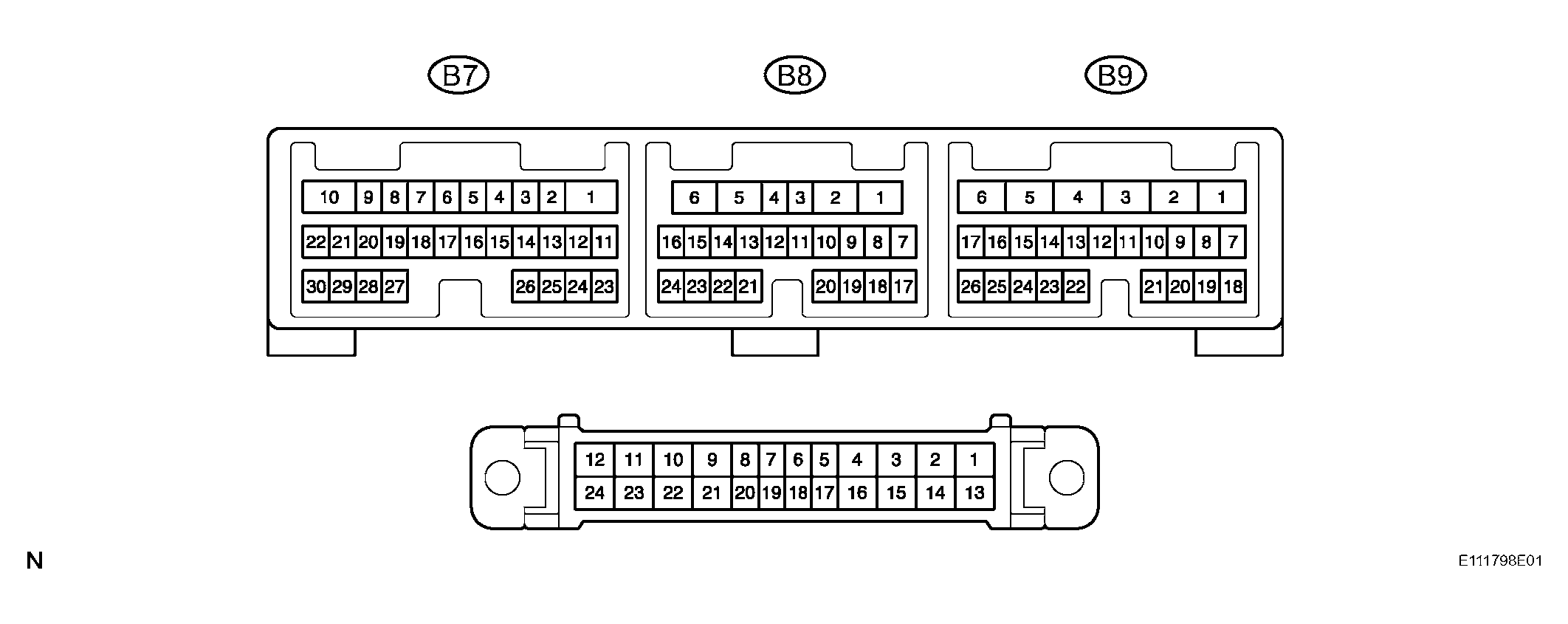

    Fig 1: Identifying Body ECU (Main) Connector Terminal
    G04065205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WIRING COLOR TERMINAL DESCRIPTION

    Symbols (Terminal No.) Wiring Color Condition Specified Condition
    PRG (B8-3) - GND1 (4) V - Body ground Communication circuit (door control receiver) -
    PRG (B8-3) - GND2 (16) R-B - Body ground Communication circuit (door control receiver) -
    RDA (B8-4) - GND1 (4) L - Body ground Communication circuit (door control receiver) -
    RDA (B8-4) - GND2 (16) L - Body ground Communication circuit (door control receiver) -
