Slip Indicator Light Circuit: Wiring Diagram

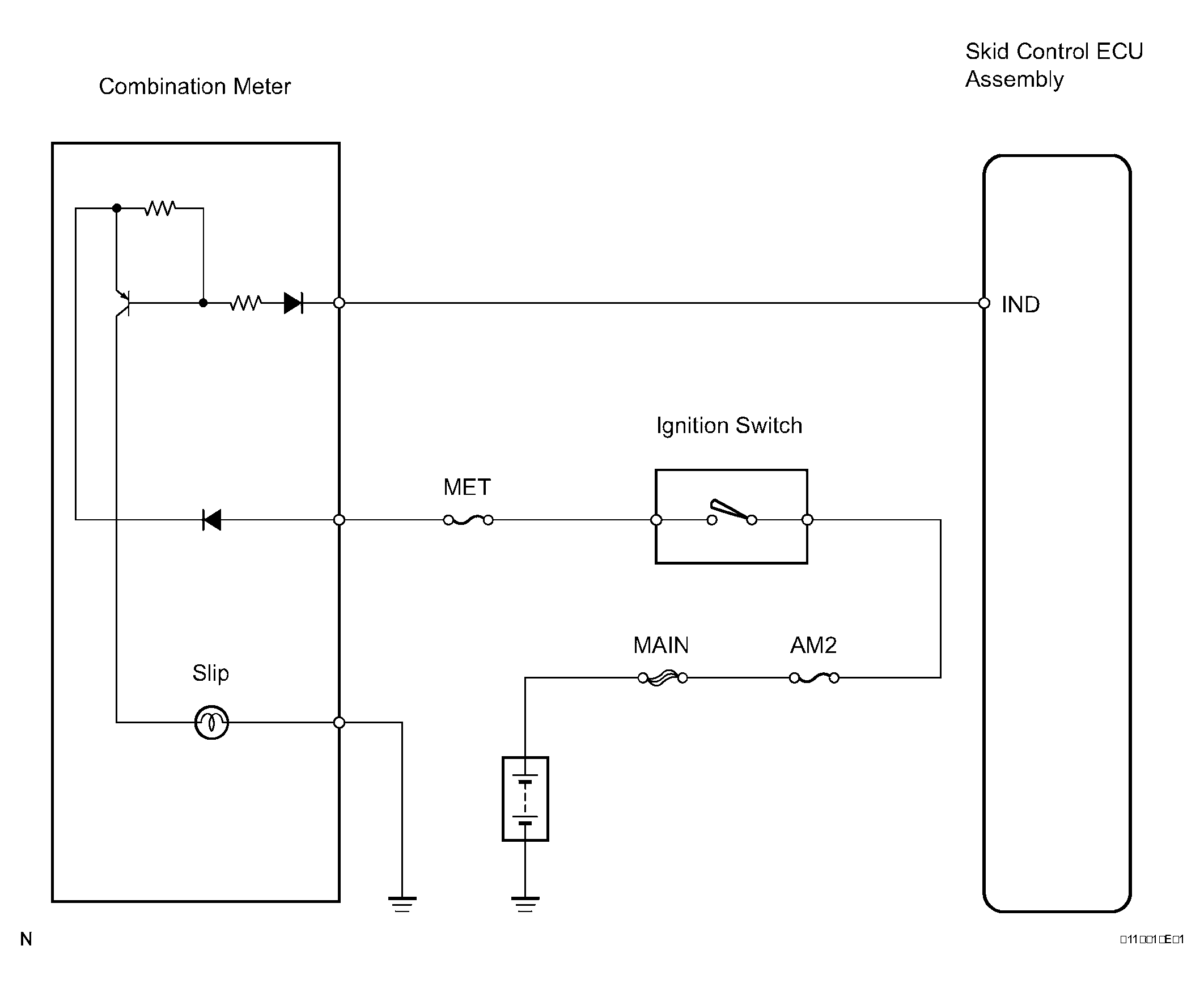

Fig 1: Slip Indicator Light Circuit Wiring Diagram
G04063928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. CHECK WARNING LIGHT
    1. Check the warning lights other than the SLIP indicator light.

      OK : Go to step  3

      NG : Go To Next Step

  2. INSPECT RELAY (Marking: IG1 NO. 2)
    1. Remove the IG1 NO. 2 relay from the cowl side junction block LH.
    2. Measure the resistance of the relay.
    TESTER CONNECTION AND SPECIFIED CONDITION CHART

    Tester Connection Specified Condition
    1 - 2 10 kΩ or higher
    1 - 2 Below 1 Ω (when battery voltage is applied to terminals 3 and 4)
    Fig 2: Identifying Relay Connector Terminals
    G04063927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG : REPLACE RELAY

    OK : CHECK COMBINATION METER (COMBINATION METER CIRCUIT)

  3. CHECK SLIP INDICATOR LIGHT
    1. Check for open circuit in the combination meter circuit.

      NG : REPLACE COMBINATION METER

      OK : Go To Next Step

  4. CHECK WIRE HARNESS (SKID CONTROL ECU ASSEMBLY - SLIP INDICATOR LIGHT)

    NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK : REPLACE SKID CONTROL ECU ASSEMBLY
