Ground Point: Notes — 2006 Lexus LX 470 Service Manual ~ FixVault

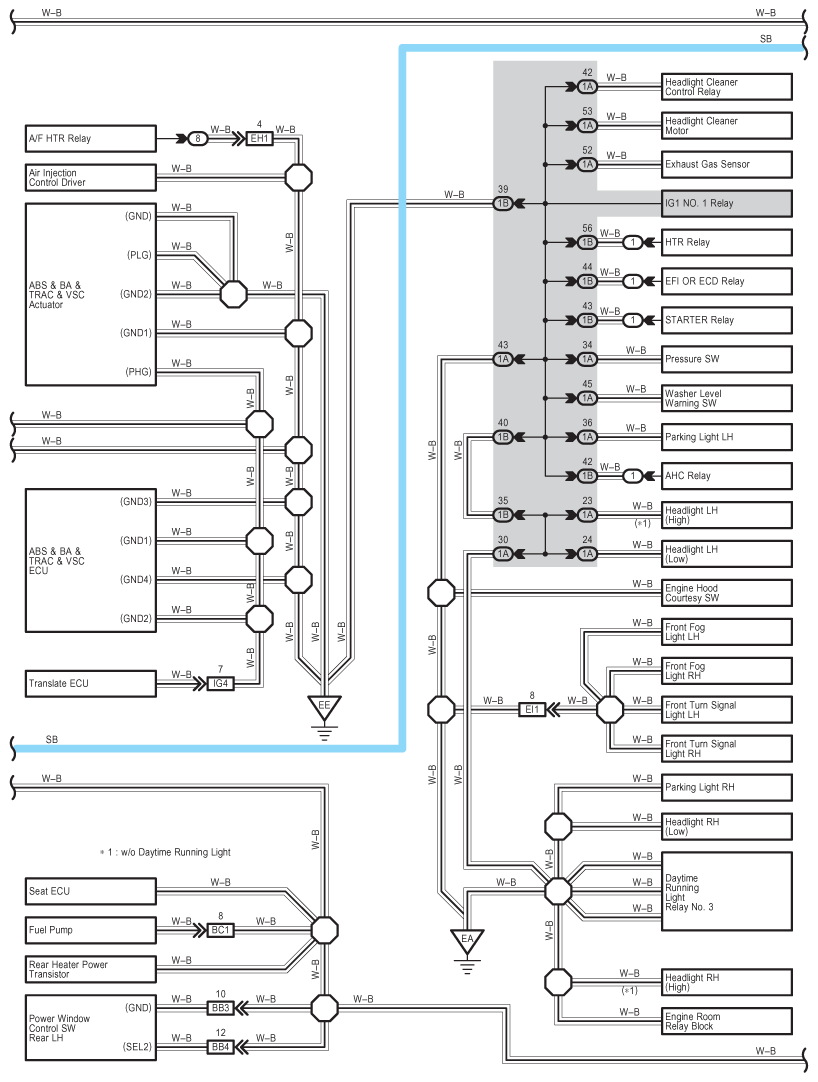

Fig 1: Ground Point Wiring Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

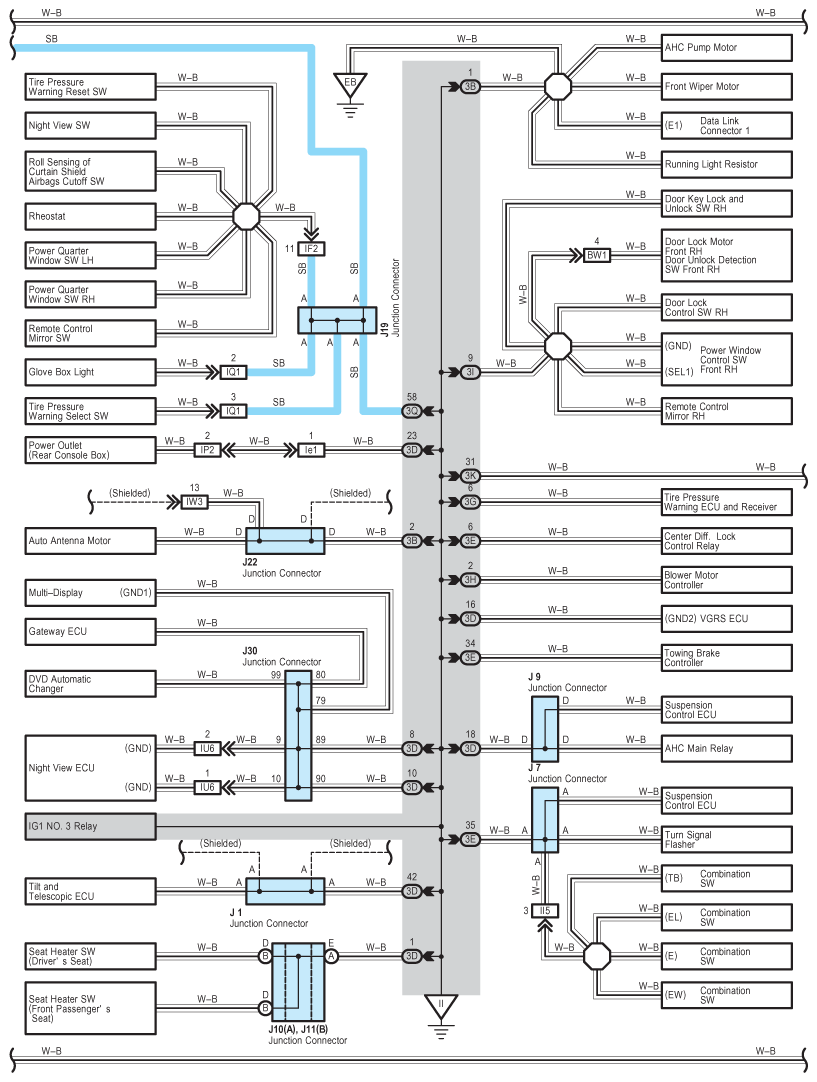

Fig 2: Ground Point Wiring Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

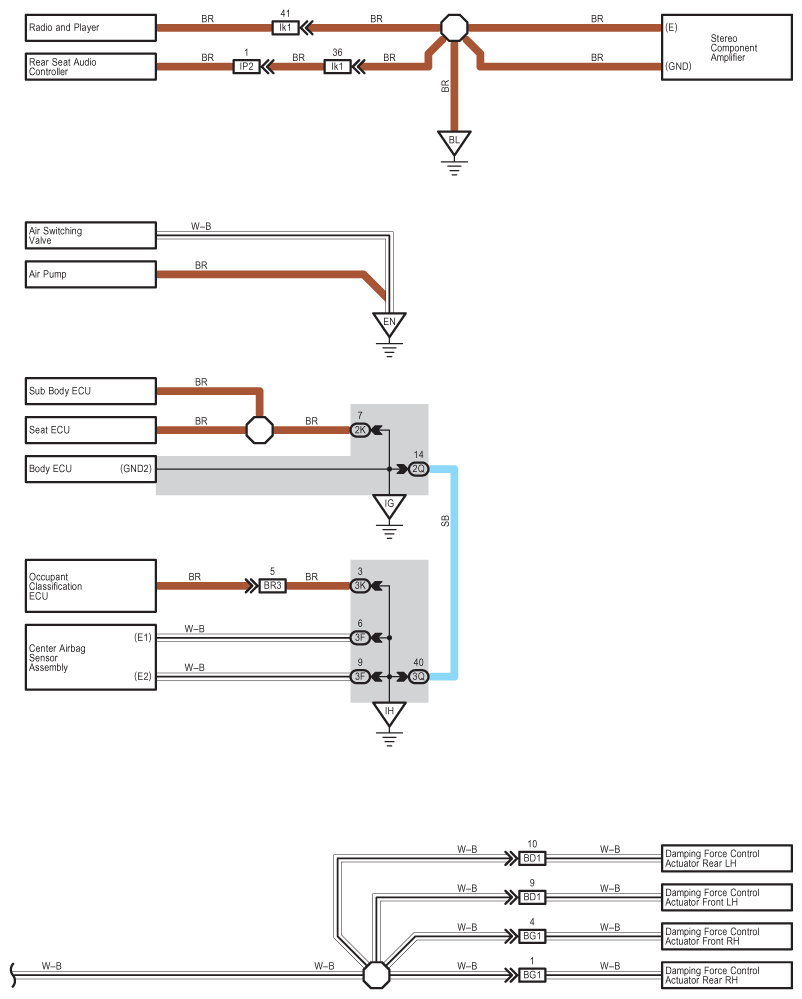

Fig 3: Ground Point Wiring Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

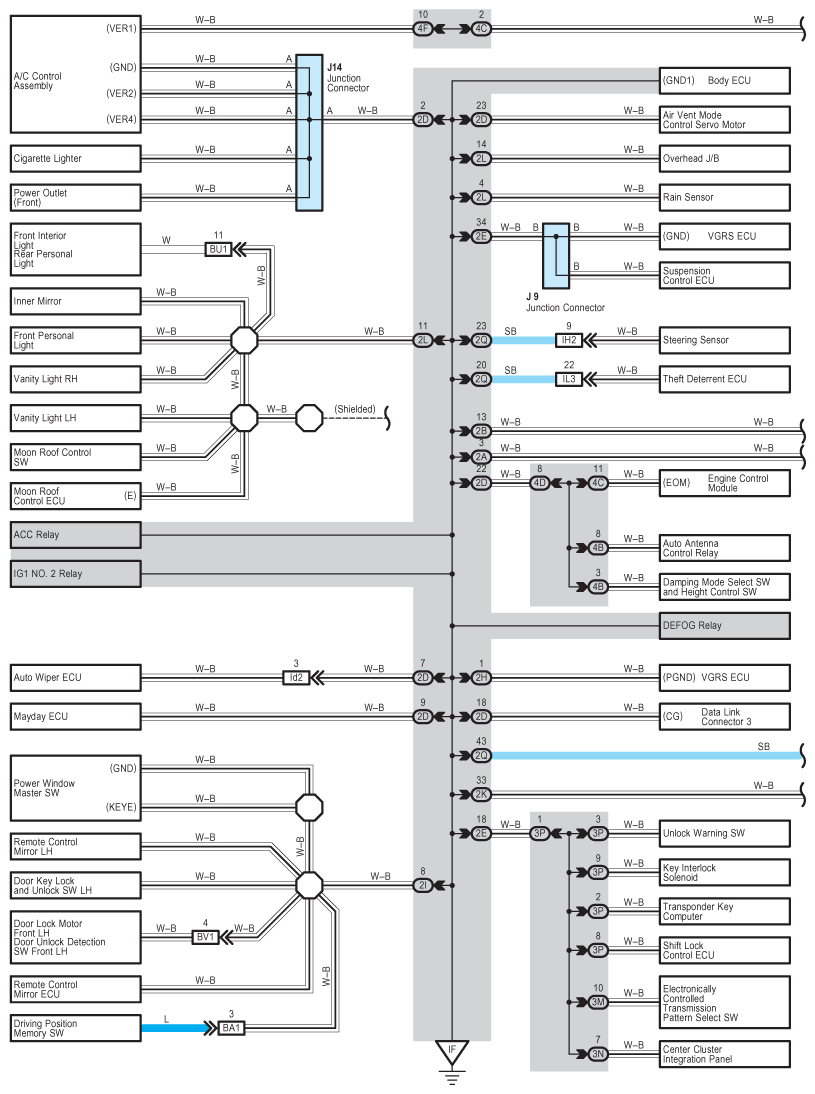

Fig 4: Ground Point Wiring Diagram (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

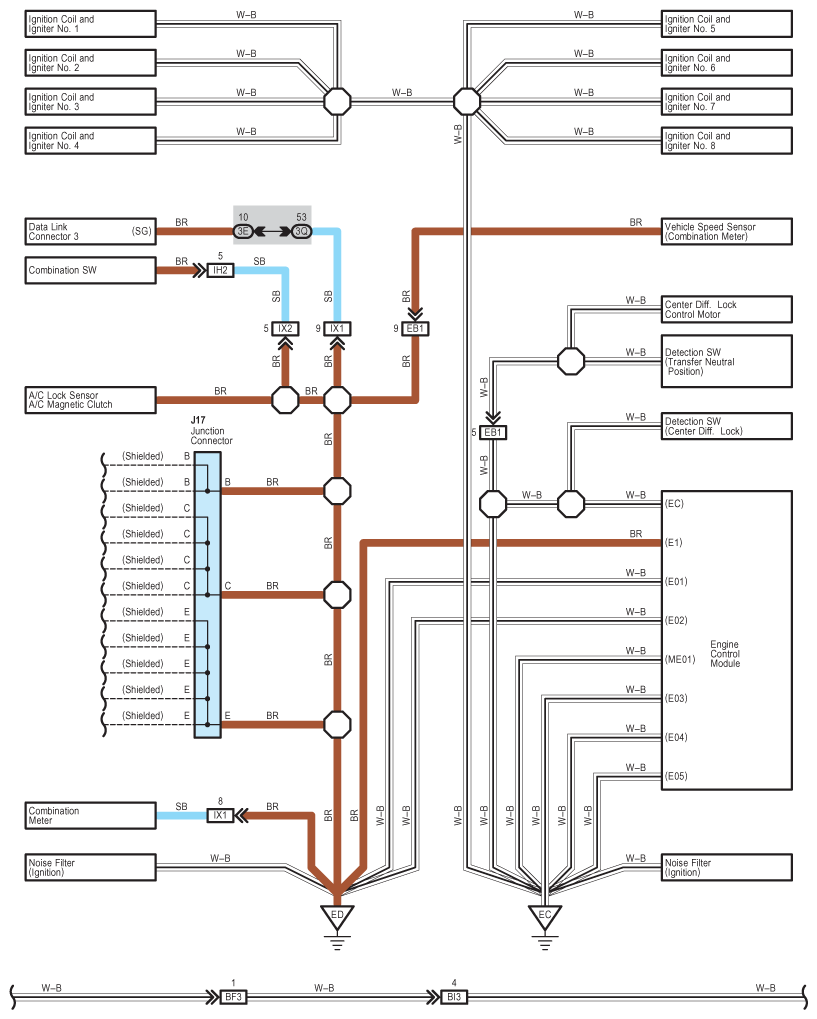

Fig 5: Ground Point Wiring Diagram (5 Of 6)

Fig 6: Ground Point Wiring Diagram (6 Of 6)
