Front Wiper and Washer: Notes

Fig 1: Front Wiper And Washer - Wiring Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Front Wiper And Washer - Wiring Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

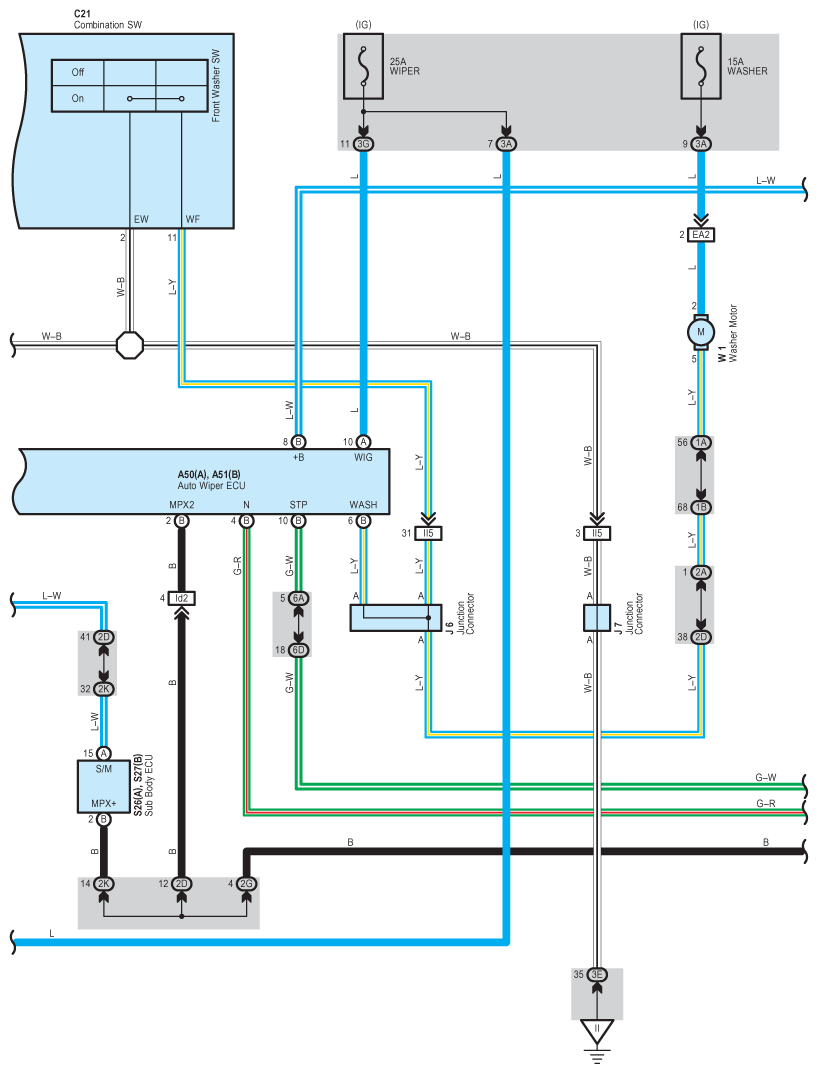

Fig 3: Front Wiper And Washer - Wiring Diagram (3 Of 4)

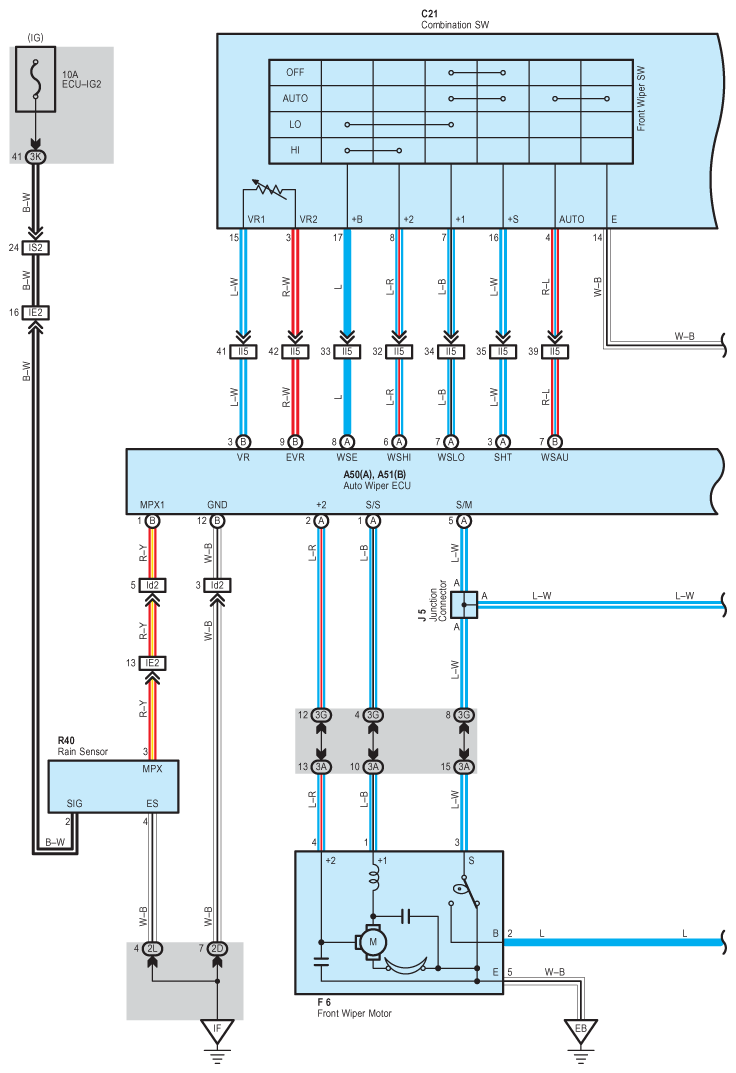

Fig 4: Front Wiper And Washer - Wiring Diagram (4 Of 4)
