Mirror Heater: Notes

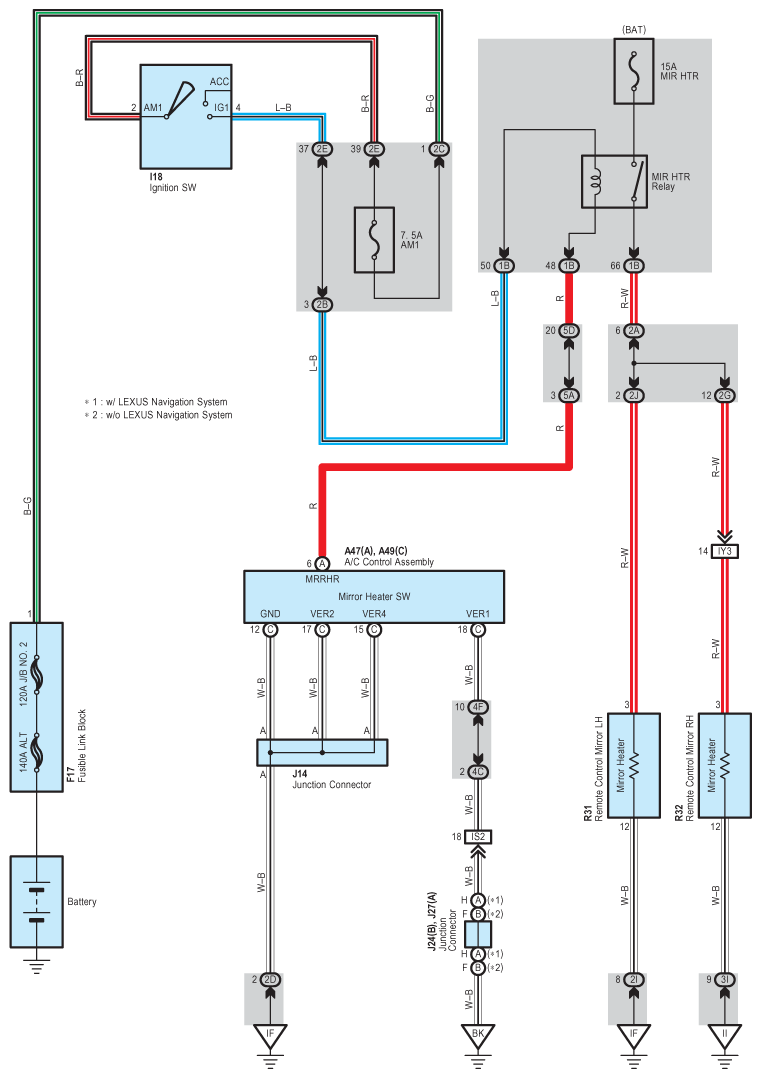

Fig 1: Mirror Heater - Circuit Diagram

G08928233

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
