Multiplex Communication System - CAN: Notes

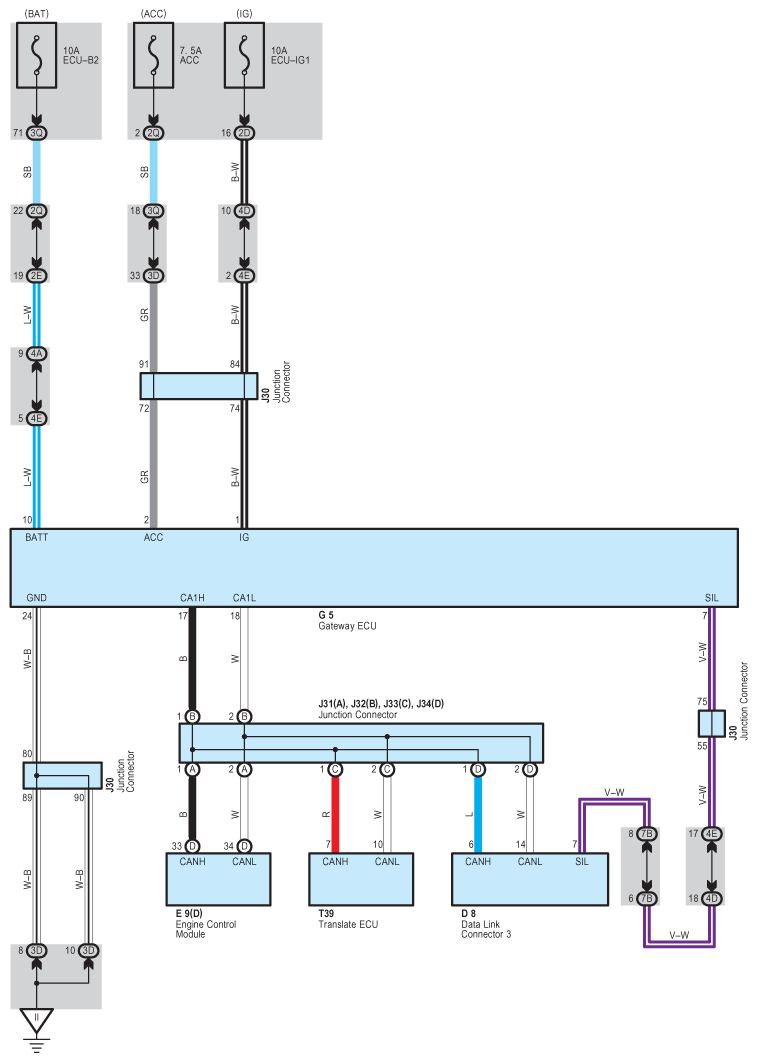

Fig 1: Multiplex Communication System - Can - Circuit Diagram
G08928146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
