Fuel Pump Resistor: Installation

INSTALL FUEL PUMP RESISTOR
1. Install the resistor with the bolt.
  Torque: 12 N*m (122 kgf*cm, 8.8 ft.*lbf)
2. Connect the resistor connector.

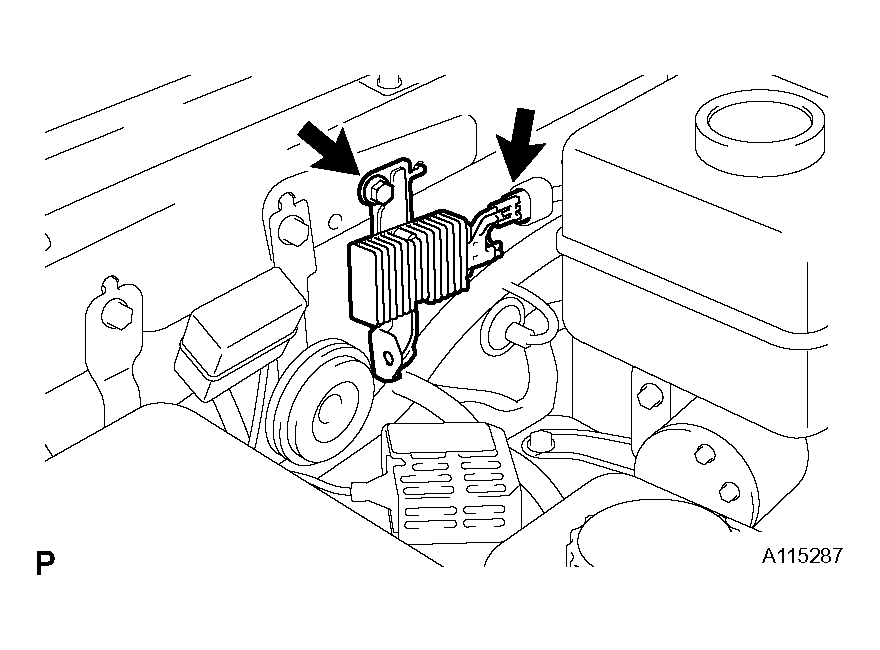

Fig 1: Identifying Resistor Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
