Camshaft Position Sensor: Installation

INSTALL CAMSHAFT POSITION SENSOR
1. Install the camshaft position sensor with the bolt and stud bolt.
Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

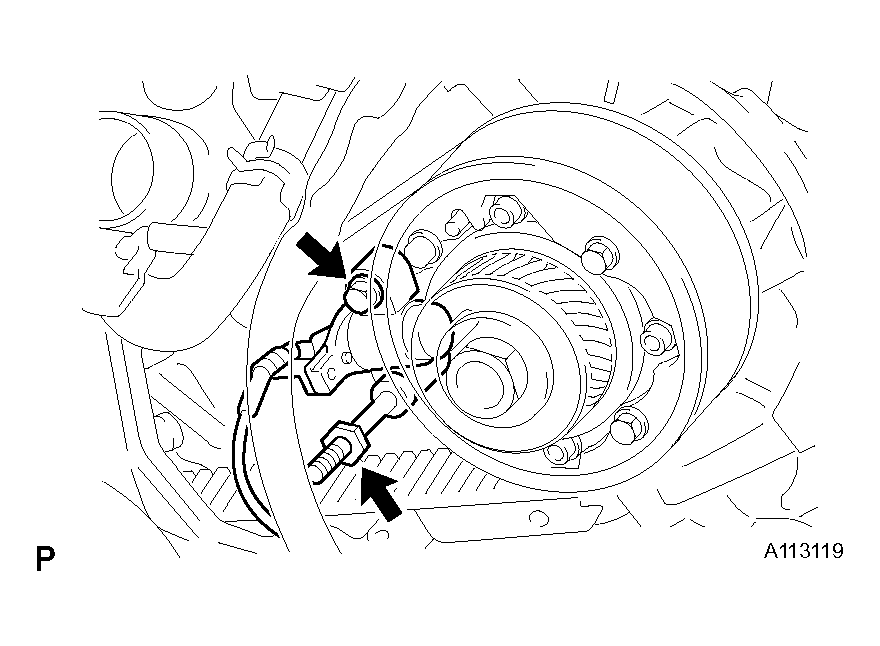

Fig 1: Identifying Camshaft Position Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 3 TIMING BELT COVER SUBASSEMBLY BANK 1 ( INSTALLATION )
CONNECT NO. 1 RADIATOR HOSE ( INSTALLATION )
INSTALL INTAKE AIR CONNECTOR PIPE (See INSTALLATION )
INSTALL V-BANK COVER SUB-ASSEMBLY (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (INITIALIZATION ).
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
ADD ENGINE COOLANT ( COOLANT )
CHECK FOR ENGINE COOLANT LEAKS
1. Check for engine coolant leaks (COOLANT ).
